2.6 Direction of Rotation
Unless specically ordered otherwise, the standard direction is (see Figure 5 and Figure 6):
• Right turning (clockwise) = CLOSING
• Left turning (counter clockwise) = OPENING
Clockwise rotation of the actuator is given when the output shaft turns counter clockwise
when looking on the output shaft.

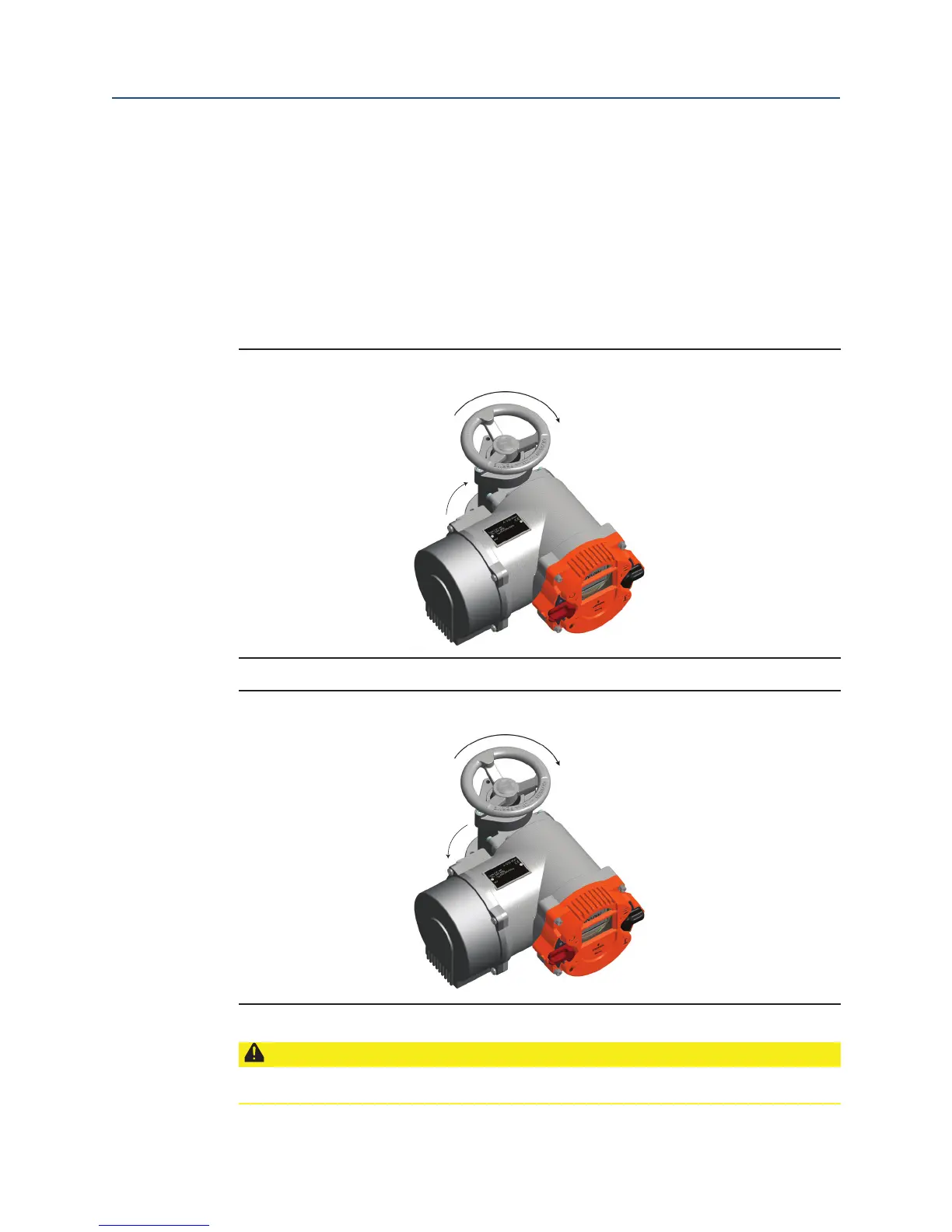

Figure 5 Clockwise = Close
Figure 6 Counterclockwise = Close
CAUTION: OBSERVE DIRECTION OF ROTATION
All specications in this operating manual refer to the standard direction of rotation.
