Emerson Bettis RTS CL Series User Manual

February 2019
User Instructions
MAN-02-04-60-0350-EN Rev. 3
81
Section 16: Technical Data and Certifications
Technical Data and Certications
The analog output is galvanically isolated from the rest of the electronic system.

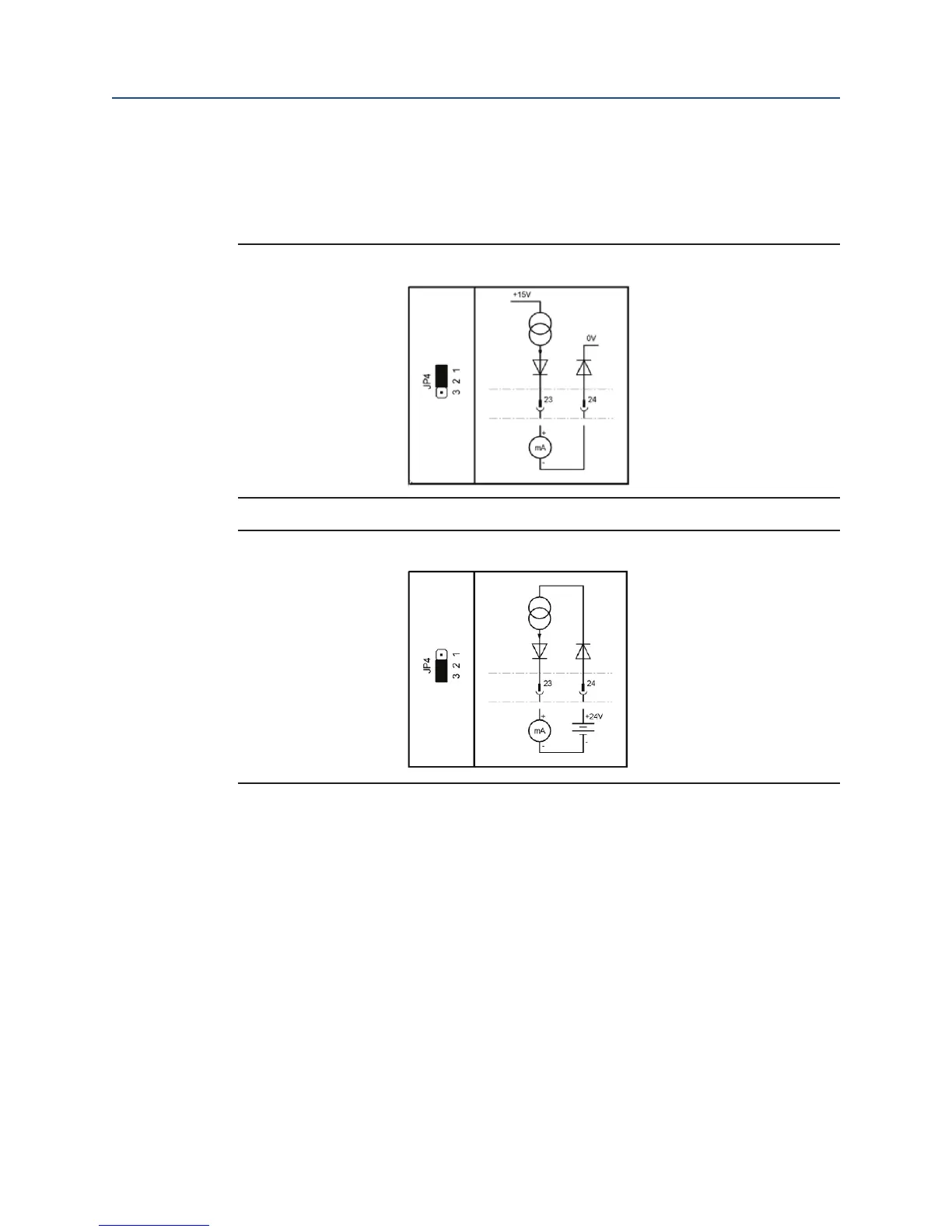

Jumper JP4 can be used to switch the analog output from an active power source (default)
to a current sink, allowing the output to simulate a 4. . . 20 mA, two-wire transmitter.
Figure 76 Current Source
Figure 77 Current Sink
Ground potential is the potential of the control unit and the auxiliary supply.
