Installation Drawings
28

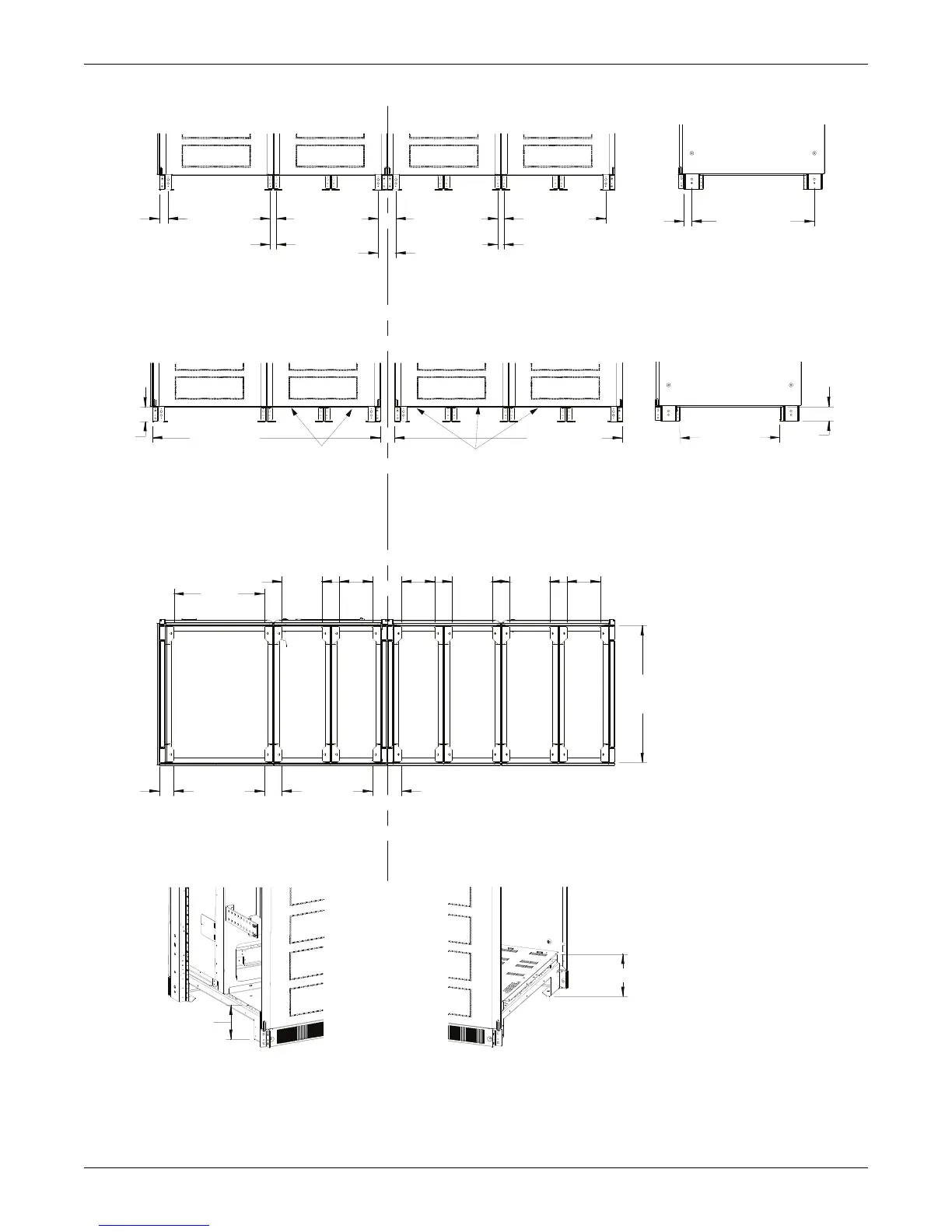

Figure 18 Base detail drawing, 625kVA Liebert NXL, N+1 multi-module unit without static bypass
Bracket Mounting Locations (M10 Hexserts)
Footprint Spacing
Lift Clearance
Shipping Split
Rectifier Section
(Part A)
Pillars Removed For Clarity
Bottom Cable Entry Panels
Front
Inverter Section
(Part B)
Front
Of Unit
Forklift Openings
Forklift Openings
Rectifier Section
(Part A)
Inverter Section
(Part B)
Notes:
1. All dimensions are in inches (mm).
2. Unit bottom is structurally adequate for
forklift handling.
Bottom Input (Part A)
Bottom Output (Part B)
Front View
Right Side
Bottom View
Front View
2.4
[61]
27.7 [403]
27.7 [403] 27.7 [403]
27.7 [403]
1.7 [42]
1.7 [42]
4.8
[122]
Right Side
2.1 [53]
33.3 [845]
24.6
[625]
10.9
[276]
9.0
[229]
9.0
[229]
10.9
[276]
10.9
[276]
9.0
[229]
3.9
[100]
Typ
4.7
[120]
Typ
7.9
[200]
Typ
27.2 [691]
3.9
[99]
61.8 [1570]
61.8 [1570]
3.9
[100]
6.0 (152.4)
8.0 (203.2)
37.2
[945]
