Installation Drawings
36

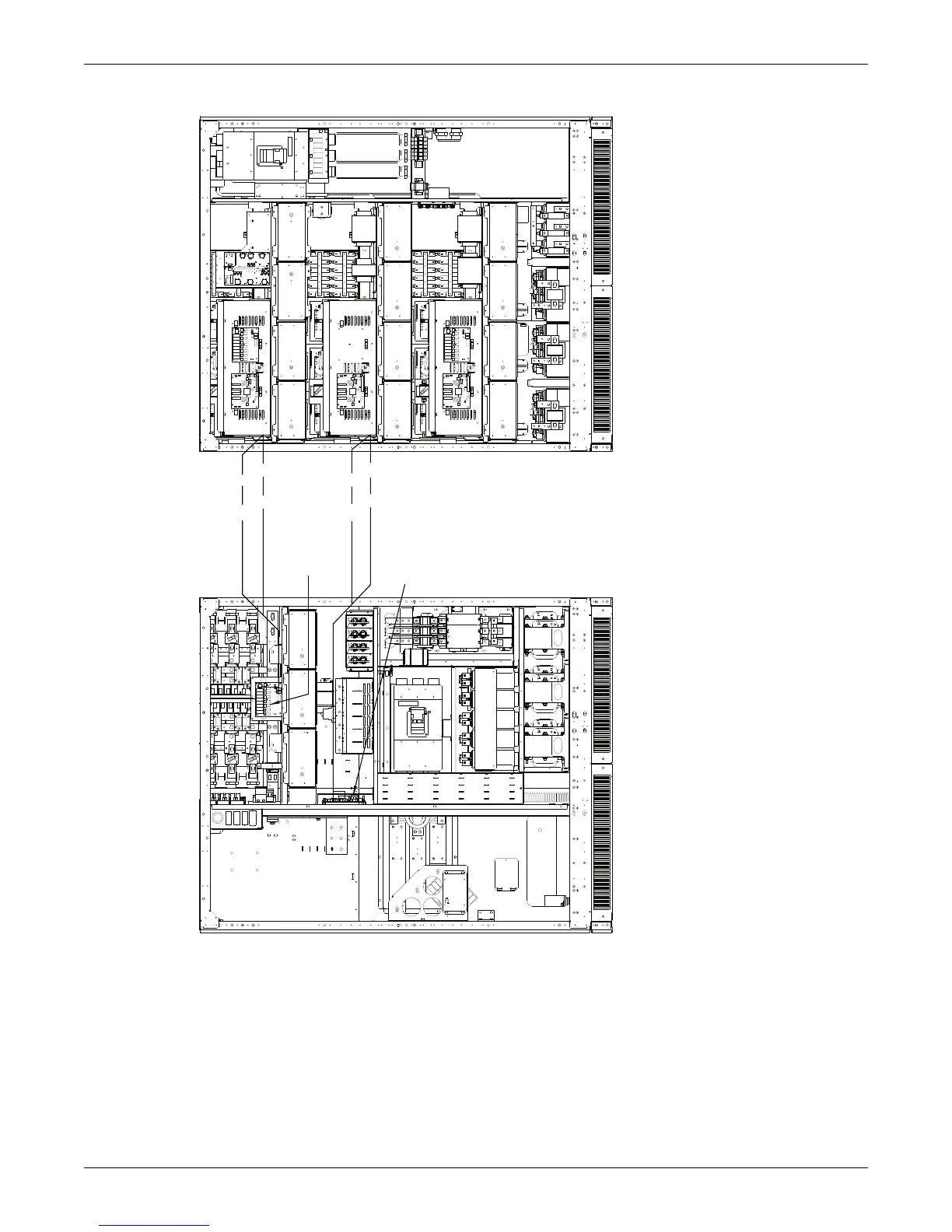

Figure 25 Shipping split 625kVA Liebert NXL without static bypass (continued)
02-806708-
Low Voltage Wire Connections Between Part B and Part A
Wires are coiled and tied in Part B.
Uncoil, route and connect wires in finish part as shown.
Use wire label as guide for "to" component, connection ID and wire part number.
Tie wires away from sharp edges, busbar and electronic components.
02-806710-
Part A (Rectifier) - Wire Finishing Point
532049G1
532065G1
532063G1
532065G1
Part B (Inverter) - Wire Starting Point
To Next Page
