(+) DC Busbar
(-) DC Busbar
M10 Flat Washer
M10 Ribbed Washer (2x)
M10 Hex Head Bolt
Low-Voltage Wire Connections
Between Part A and Part B
Wires are coiled and tied in Part A.
Uncoil, route and connect wires in finish part as shown.
Use wire label as guide for "to" component, connection
ID and wire part number. Tie wires away from sharp
edges, busbar and electronic components.
02-806716-
02-806704-
Phase A
02-806704-
Phase B
02-806704-
Phase C
02-806707-
Hardware
for Detail A
Included
in This Box
Loosen hardware to allow
busbar to move to join
to Part B Busbar.
Retighten and torque
to 27 N-m (240 in-lb)

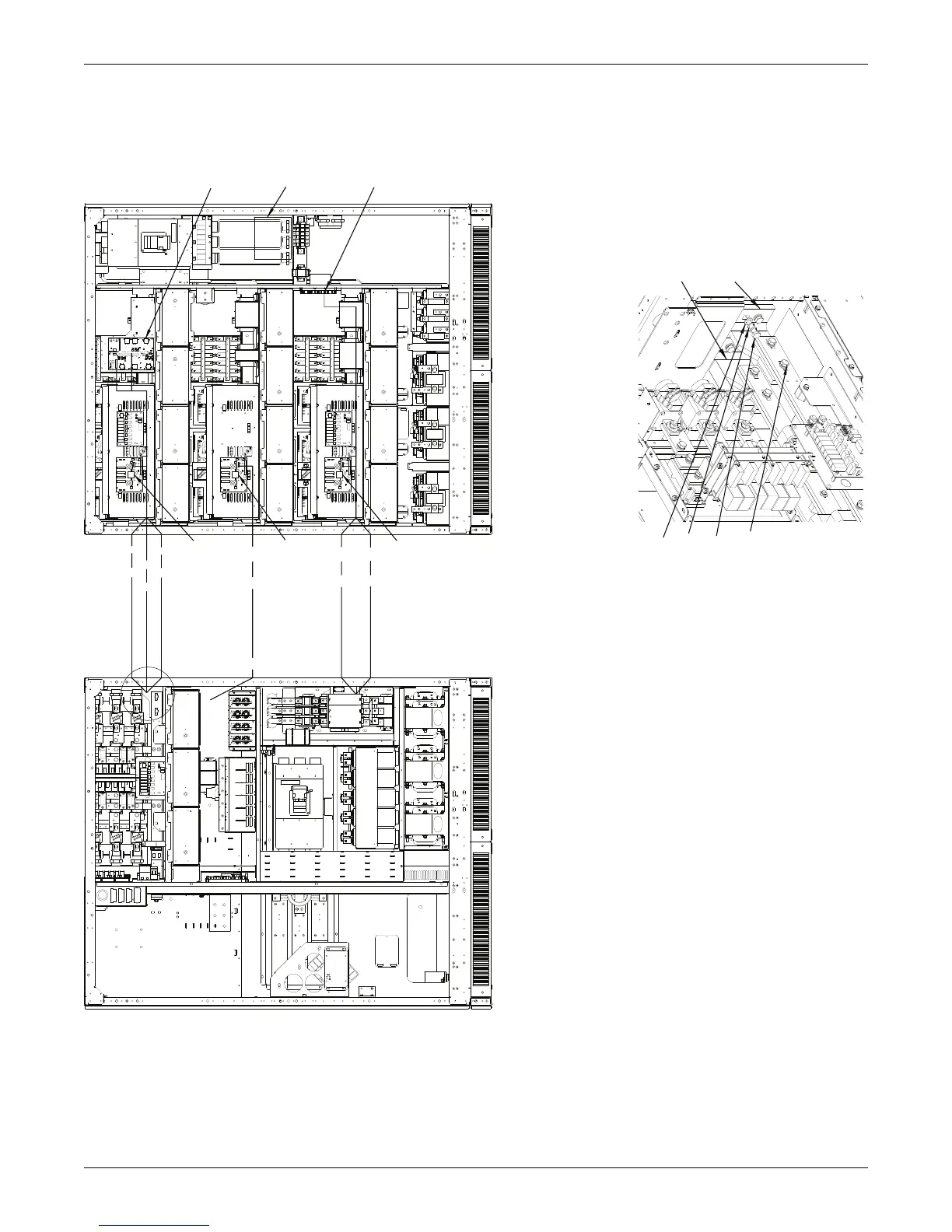

Part A (Rectifier) - Wire Starting Point
531985GI
531988G2
531983G1
A
531985G2
531985G3
532061G1
Detail A
DC Power Connection Between Part A and Part B
Hardware Provided With Part B: 4 Bolts Total
Torque Connection To 27 N-m (240 In-lbs)
Part B (Inverter) - Wire Finishing Point
To Next Page
