197.5 (5015)
78.7
(2000)

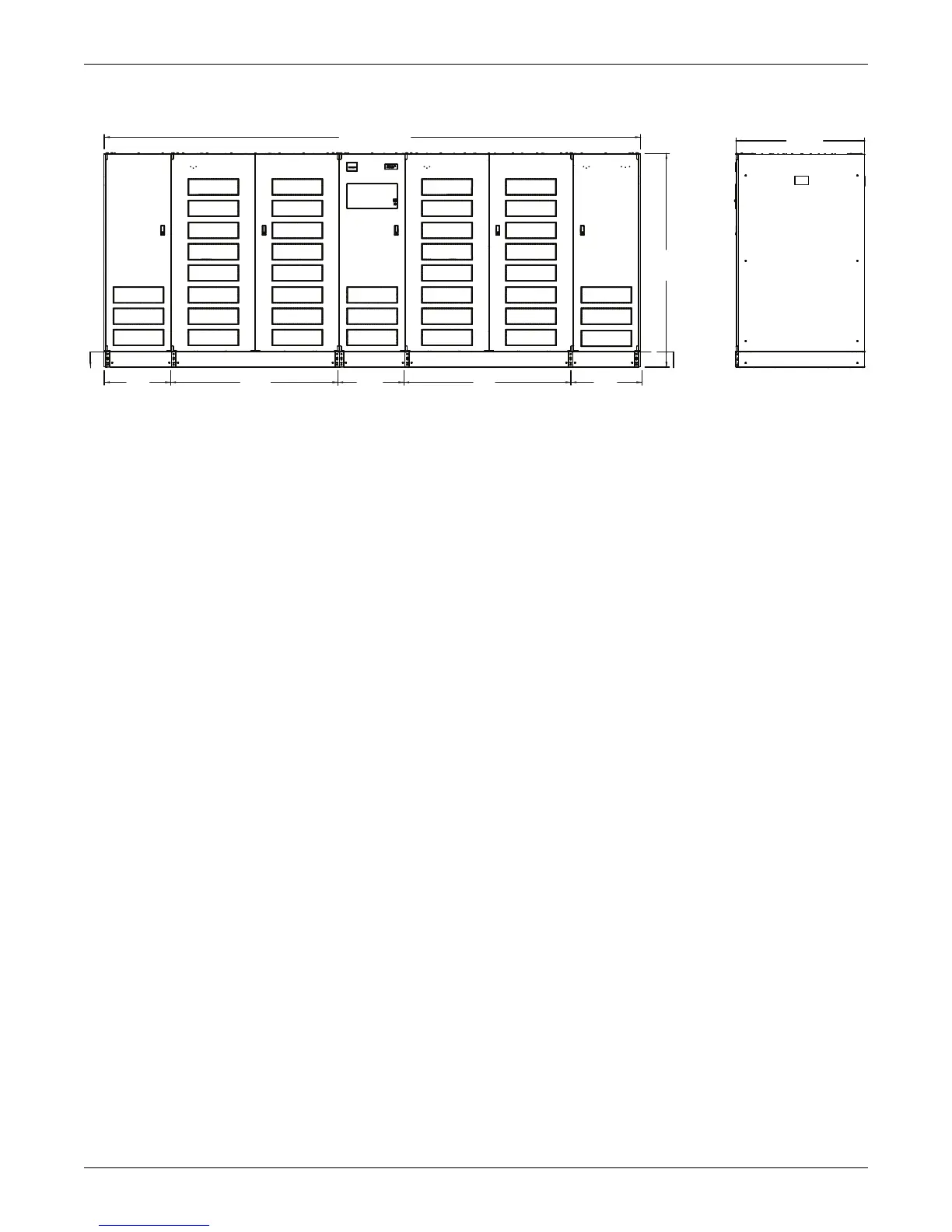

FRONT VIEW
RECTIFIER SPLIT
INPUT SPLIT
INVERTER SPLIT
OUTPUT SPLIT
24.8
(630)
24.8
(630)
24.2
(615)
61.8
(1570)
61.8
(1570)
DC INPUT SPLIT
A
A
SEE PAGE 2
SECTION A-A
RIGHT SIDE VIEW
47.2
(1200)
SEE
NOTE 12
NOTES
1. All dimensions are in inches (mm).
2. 24" (610) minimum clearance above unit required
for air exhaust, and 36" (914) front access required
for service.
3. Keep cabinet within 15 degrees of vertical.
4. Top and bottom cable entry available through
removable access plates. Remove, punch to suit
conduit size and replace.
5. Unit bottom is structurally adequate for forklift handling.
6. Control wiring and power wiring must be run in separate conduits.
7. Aluminum and copper-clad aluminum cables are not recommended.
8. All wiring is to be in accordance with national and local electrical codes.
9. Depth dimension includes front door and rear panel.
10. Width dimensions include side panels. Subtract 1.2" (30mm) when removing
both side panels.
11. The height increases to 81.9" (2080) when the control cable box is installed
on top of the DC input cabinet. The control cable box is 14" W X 11.5" D X 3.2" H.
