Installation Drawings
40

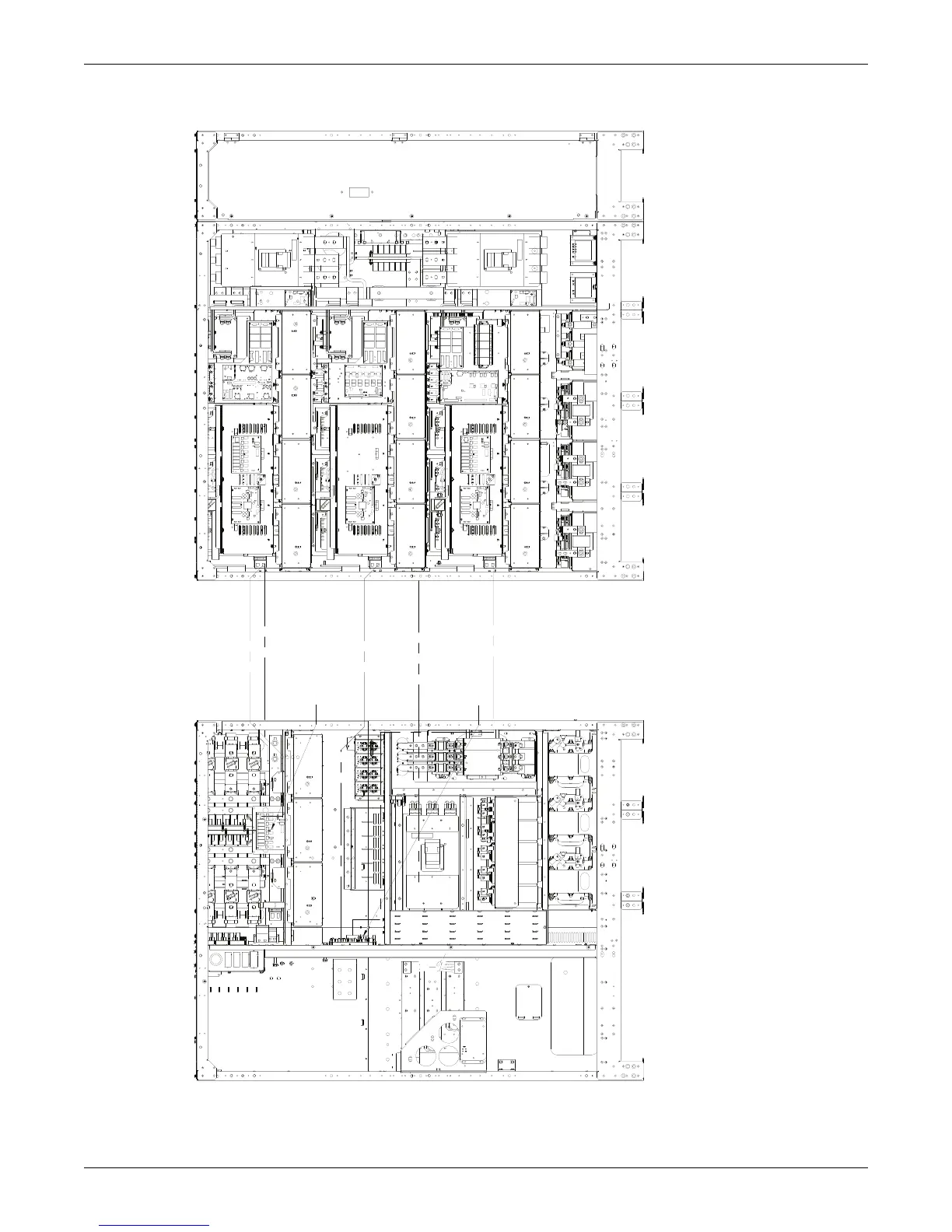

Figure 27 Shipping Split, 625kVA Liebert NXL, SMS and 1+N multi-module unit with static bypass,
continued
Low Voltage Wire Connections Between Parts B and A
Wires are coiled and tied in Part B.
Uncoil, route and connect wires in finish part as shown.
Use wire label as guide for “TO” component, connection ID and wire part number.
Tie wires away from sharp edges, busbar and electronic components.
PART A - WIRE FINISHING POINT. PART B - WIRE STARTING POINT.
02-806710-
02-806708-532065G1
Fig12A-ShippingSplit750kVANXLwStaticBypass-SMS1plusNcontd
532065G1
532049G1
532063G1
