Installation Drawings
62

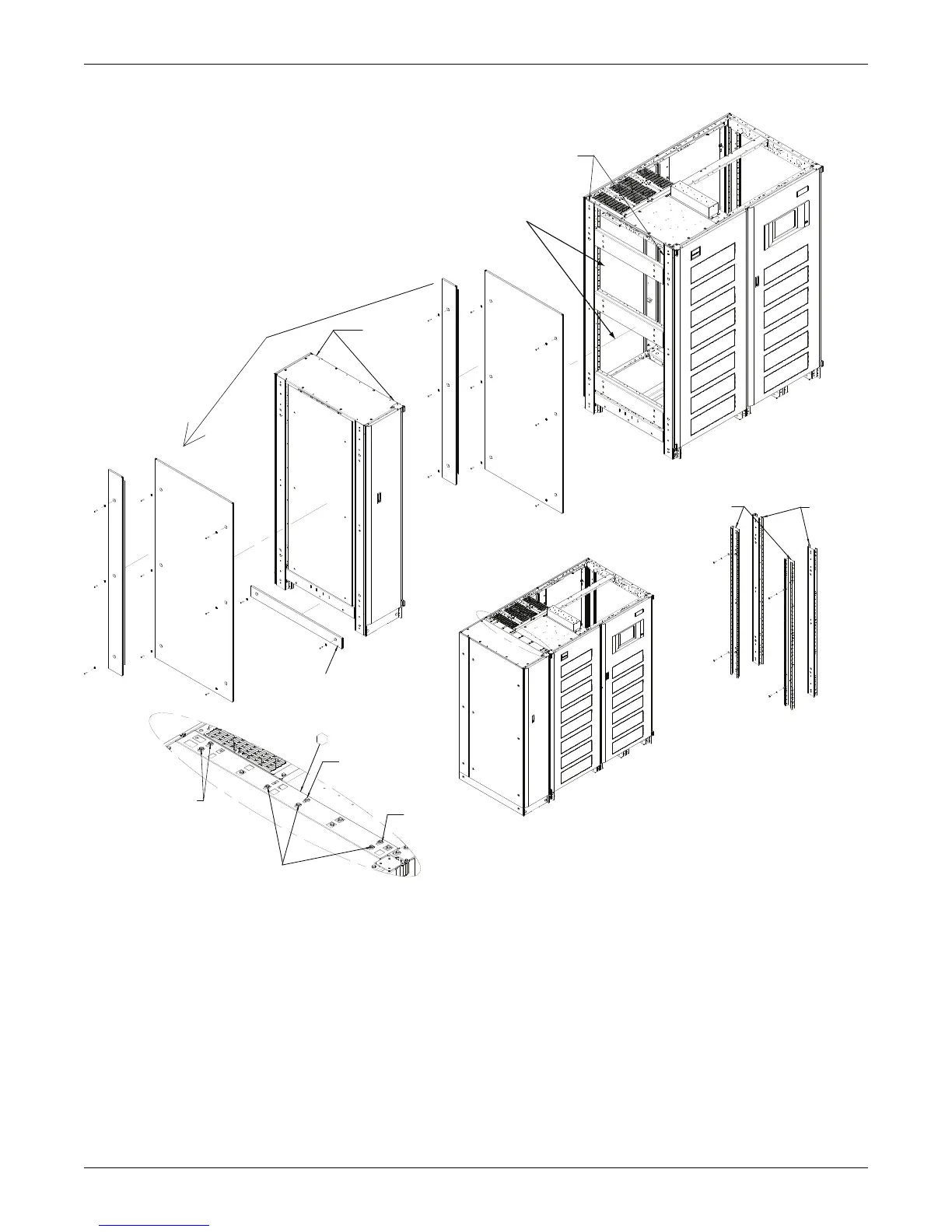

Figure 50 Single-input wire cabinet— 500 - 750kVA only
M6 hardware for Ground Plate
provided in shipped-loose bag
inside Wire Cabinet
Remove Side Panels From Left Side of Rectifier Cabinet
and Install on Left Side of Wire Cabinet
M10 Hardware
Provided in
Shipped-Loose
Bag Inside
Wire Cabinet
Kickplate is provided as a
shipped-loose item
inside the Wire Cabinet
on inverter-side the UPS
Cabinet-to-Cabinet
Connection Hardware
DETAIL A
Reference of Rectifier
Corner Post
See Detail A
Remove upper and lower
internal panels before attaching
wire cabinet to UPS
Reference of
Wire Cabinet
Corner Post
See Detail A
Rectifier
Cabinet
Corner Posts
Wire Cabinet
Corner Posts
Rectifier ( Not All Components Shown)
Wire Cabinet
This hardware provided
on Rectifer Cabinet.
Reuse hardware
to mount ground plate
1 Ground Plate
Bolt
and
Washer
Bolt and Washer
Bolt and Washer
DETAIL B
B
COMPLETE ASSEMBLY
