Emerson Liebert NXL User Manual

Installation Drawings
45

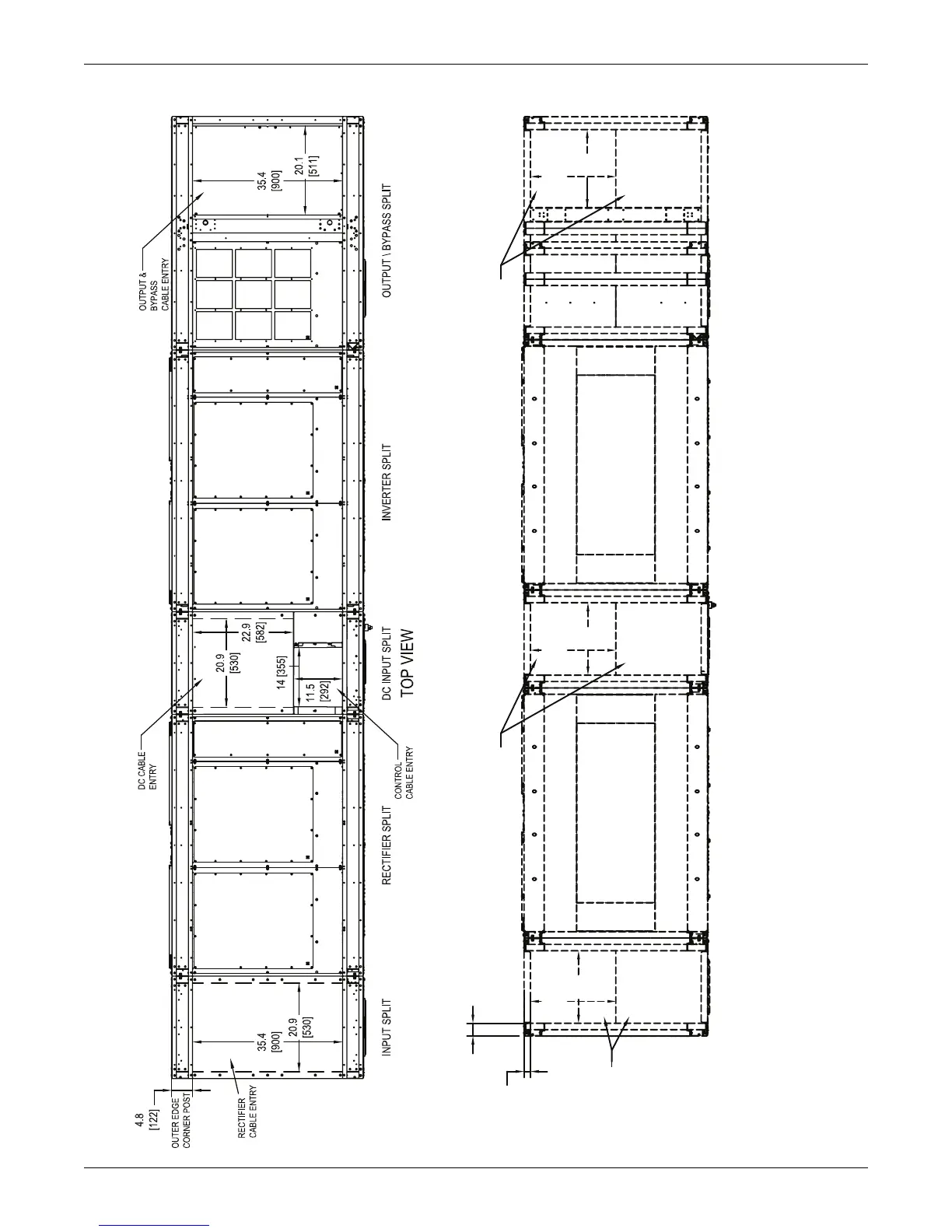

Figure 34 Conduit landing, 1100kVA UPS 1+N multi-module or SMS with static bypass
NOTES: 1. ALL DIMENSIONS ARE IN inches (mm).
BOTTOM VIEW
(TOP LOOKING DOWN)
RECTIFIER SPLITINPUT SPLIT INVERTER SPLITDC INPUT SPLIT
(FRONT)
OUTPUT \ BYPASS SPLIT
17.9
(455)
21.1
(536)
1.6
(40)
OUTER EDGE
CORNER POST
3.1
(80)
OUTER EDGE
CORNER POST
RECTIFIER
CABLE ENTRY
TYP.
17.9
(455)
21.1
(536)
DC CABLE
ENTRY TYP.
OUTPUT & BYPASS
CABLE ENTRY TYP.
19.3
(490)
21.1
(536)
