Installation Drawings
33

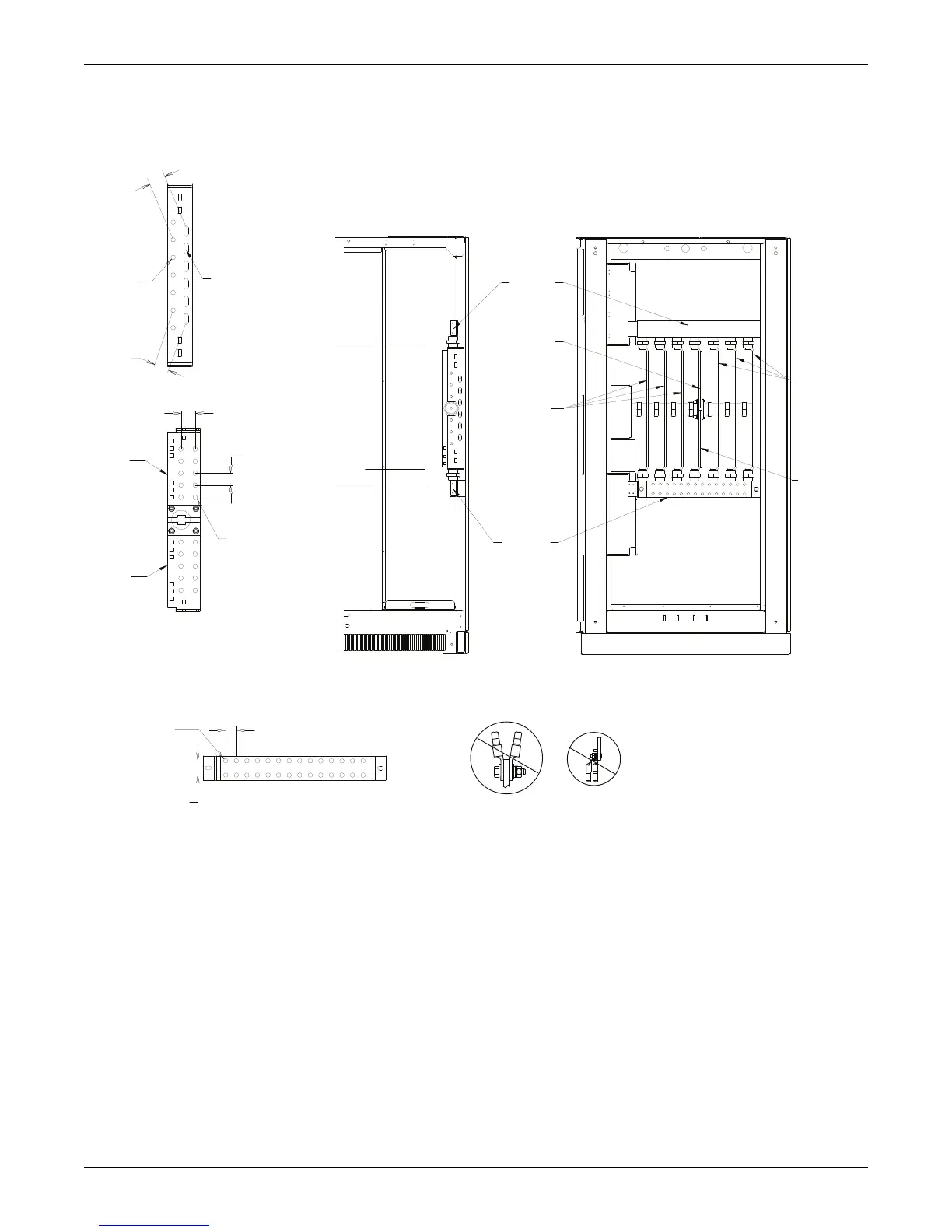

Figure 23 Output terminal detail, 625kVA Liebert NXL, SMS and 1+N multi-module unit with static bypass,
continued
NOTES:
1. ALL DIMENSIONS ARE IN inches (mm).
2. CONTROL WIRING AND POWER WIRING MUST BE RUN IN SEPARATE CONDUITS.
3. ALUMINUM AND COPPER-CLAD ALUMINUM CABLES ARE NOT RECOMMENDED.
4. ALL WIRING IS TO BE IN ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.
BREAKERS AND FRONT
POST REMOVED
FOR CLARITY
CBAN CBA
OUTPUT
GROUND
(TOP ENTRY)
OUTPUT
GROUND
1.75
(44)
TYP
.56 DIA.
(14)
TYP
1.75
(44)
TYP
76.8
(1950)
30.4
(772)
33.9
(860)
.0
(0)
56.4
(1432)
BYPASS / OUTPUT NEUTRAL
1.49
(37.7)
TYP
BYPASS
NEUTRAL
BUS
OUTPUT
NEUTRAL
BUS
(BOTTOM
ENTRY)
RIGHT SIDE (PART B)
RIGHT FRONT (PART B)
BYPASS / OUTPUT PHASES
OUTPUT GROUND
1.38 X .56 SLOT
6 PLACES
EACH BUSBAR
1.75
(44)
TYP
OUTPUT
PHASES,
APPROX.
3.0" SPACING
BETWEEN
BUSBARS
BYPASS
PHASES,
APPROX.
3.0" SPACING
BETWEEN
BUSBARS
.56 DIA.
(14)
TYP
28 PLACES
.56 DIA.
(14)
TYP
20 PLACES
1.30
(33)
TYP
1.75
(44)
TYP
OUTPUT
NEUTRAL
BYPASS
NEUTRAL
DO NOT DOUBLE-STACK LUGS
CB1-3
CB1-3
