Installation Drawings
42

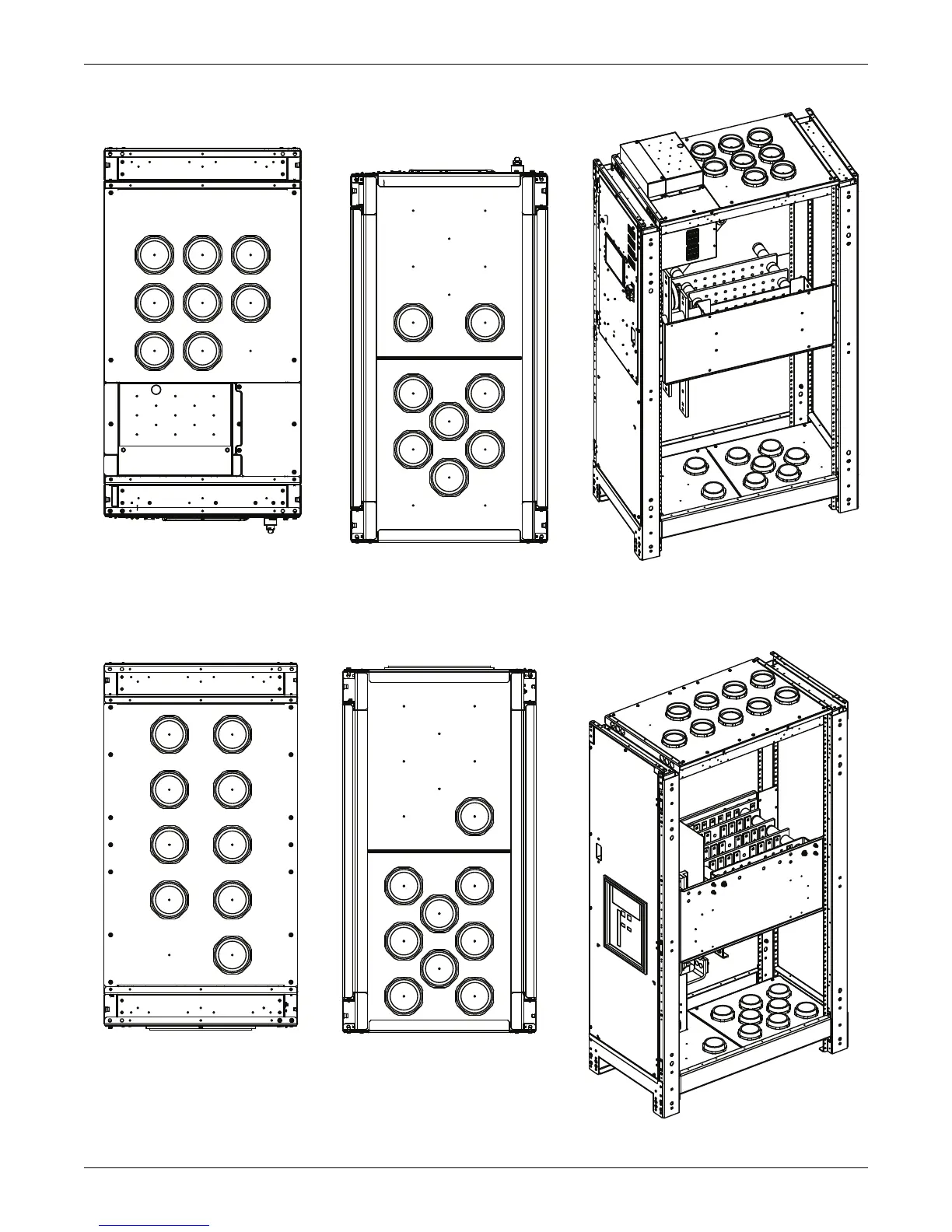

Figure 30 Liebert NXL 1100kVA conduit entry points—DC layout.
Figure 31 Liebert NXL 1100kVA conduit entry points—N+1 output layout
.059in (1.50mm) Nominal
Galvanized Steel
Front
FRONT
DC CABINET
BOTTOM VIEW
TOP VIEW
Front
Front
OUTPUT CABINET
TOP VIEW
BOTTOM VIEW
