Emerson Liebert NXL User Manual

Installation Drawings
54

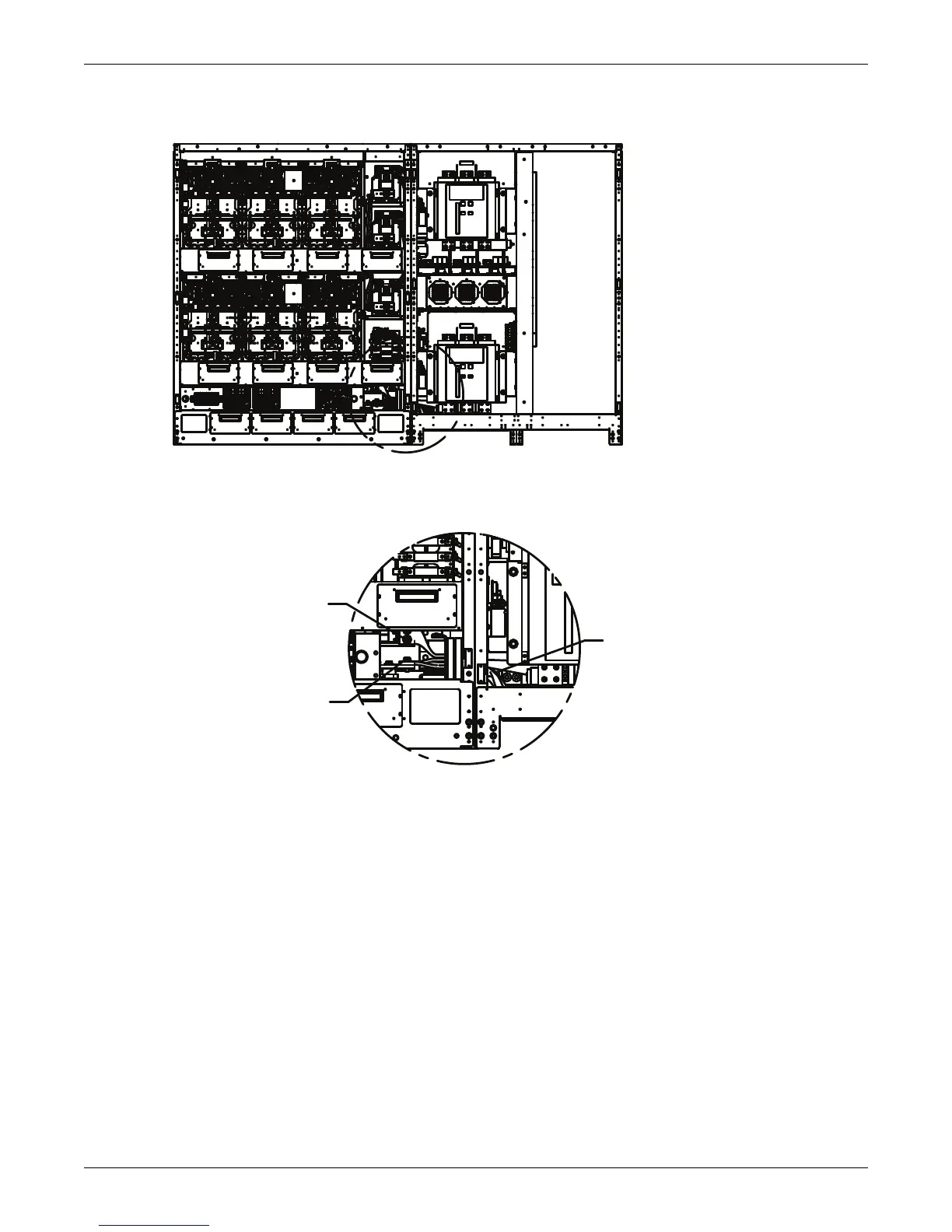

Figure 41 Liebert NXL 1100kVA, single module system, shipping split—Interconnections between inverter
and bypass
PHASES A, B, C
ROUTE FLEX BUS THROUGH
OPENING AND CONNECT
WITH THE FOLLOWING HARDWARE:
INSTALL M10X40 HEX BOLT (6)
M10 LARGE FLAT WASHER (6)
(2) M10 BELLEVILLE WASHERS PER BOLT
TORQUE TO 27Nm (240 in-lb)
NEUTRAL
ROUTE FLEX BUS THROUGH
OPENING AND CONNECT
WITH THE FOLLOWING HARDWARE:
M10 LARGE FLAT WASHER (2)
(2) M10 BELLEVILLE WASHERS PER BOLT
M10 NUT (2)
TORQUE TO 27Nm (240 in-lb)
THESE FLEX BUS ARE ALREADY
CONNECTED TO THE BYPASS CABINET
WHEN SHIPPED. CONNECT TO INVERTER
CABINET, BASED OFF LABELS (A, B, C, N).
DETAIL J
J
INTERCONNECTS BETWEEN INVERTER
AND BYPASS (SMS SYSTEM)
