Emerson Liebert NXL - Figure 28 02-806710- Fan Interface Board 1; Figure 29 Liebert NXL 1100 Kva Conduit Entry Points-Input Layout

Installation Drawings
41

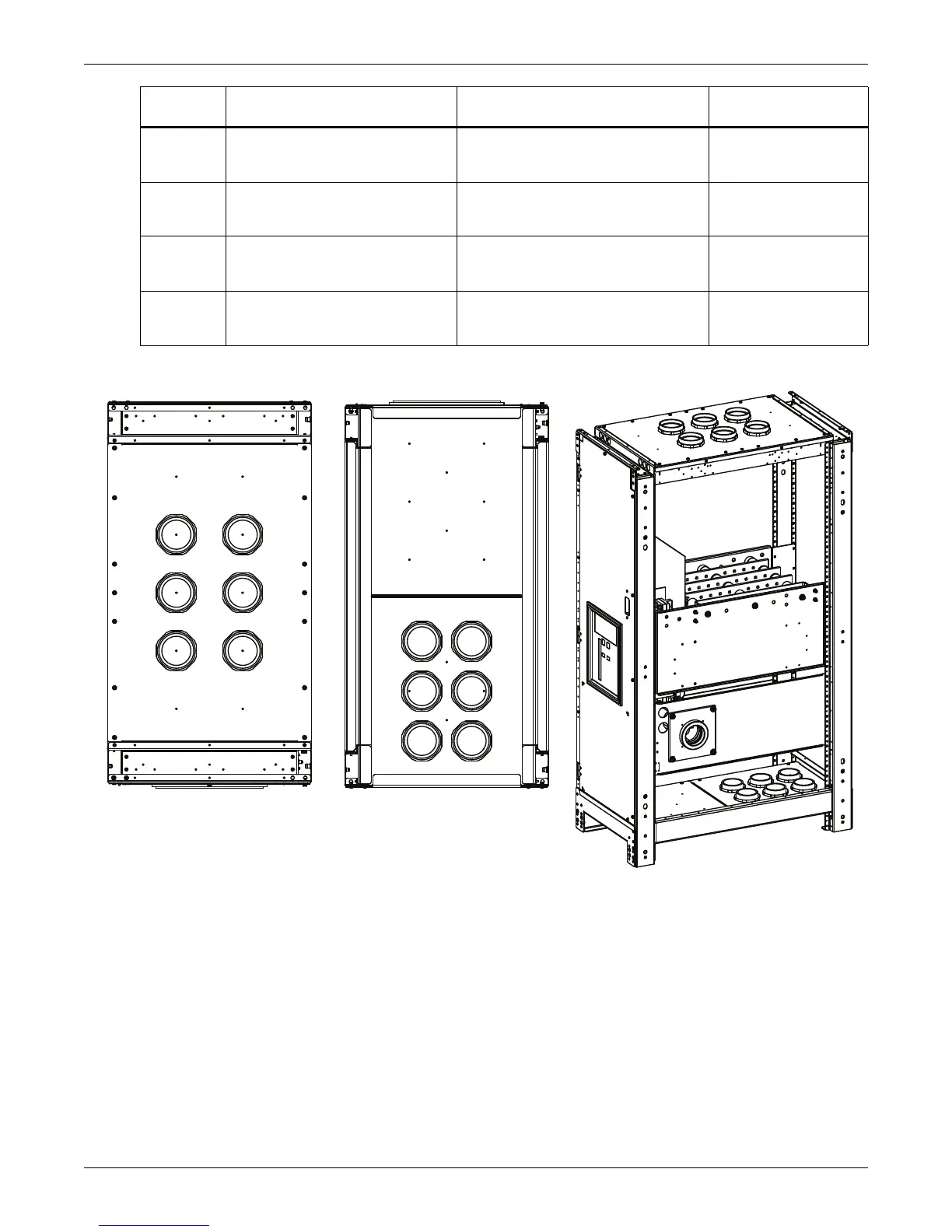

Figure 29 Liebert NXL 1100kVA conduit entry points—Input layout
WH P/N
Start
(Part B - Inverter Cabinet)
Finish
(Part A - Rectifier Cabinet) Label
532049G1 02-806716-AC Distribution Board
Figure 28 02-806710- Fan
Interface Board 1
To: 02-806710-__
Connection ID: P1011
WH P/N: 532049G1
532065G1 02-806710-Fan Interface Board 2 02-806710- Fan Interface Board 1
To: 02-806710-__
Connection ID: P66
WH P/N: 532065G1
532063G1 DC Fuse 02-806708- External Interface Board
To: 02-806708-__
Connection ID: P0814
WH P/N: 532063G1
532065G1 02-806710-Fan Interface Board 3 02-806708- External Interface Board
To: 02-806708-__
Connection ID: P99B
WH P/N: 532065G1
Front
FRONT
INPUT CABINET
TOP VIEW
BOTTOM VIEW
