PART A - WIRE STARTING POINT PART B - WIRE FINISHING POINT
Hardware Provided With Part B.
(4) Bolts Total.
Torque Connection to 27 N-m (240 in-lb).
M10 FLAT WASHER
M10 RIBBED WASHER (x2)
M10 HEX HEAD BOLT

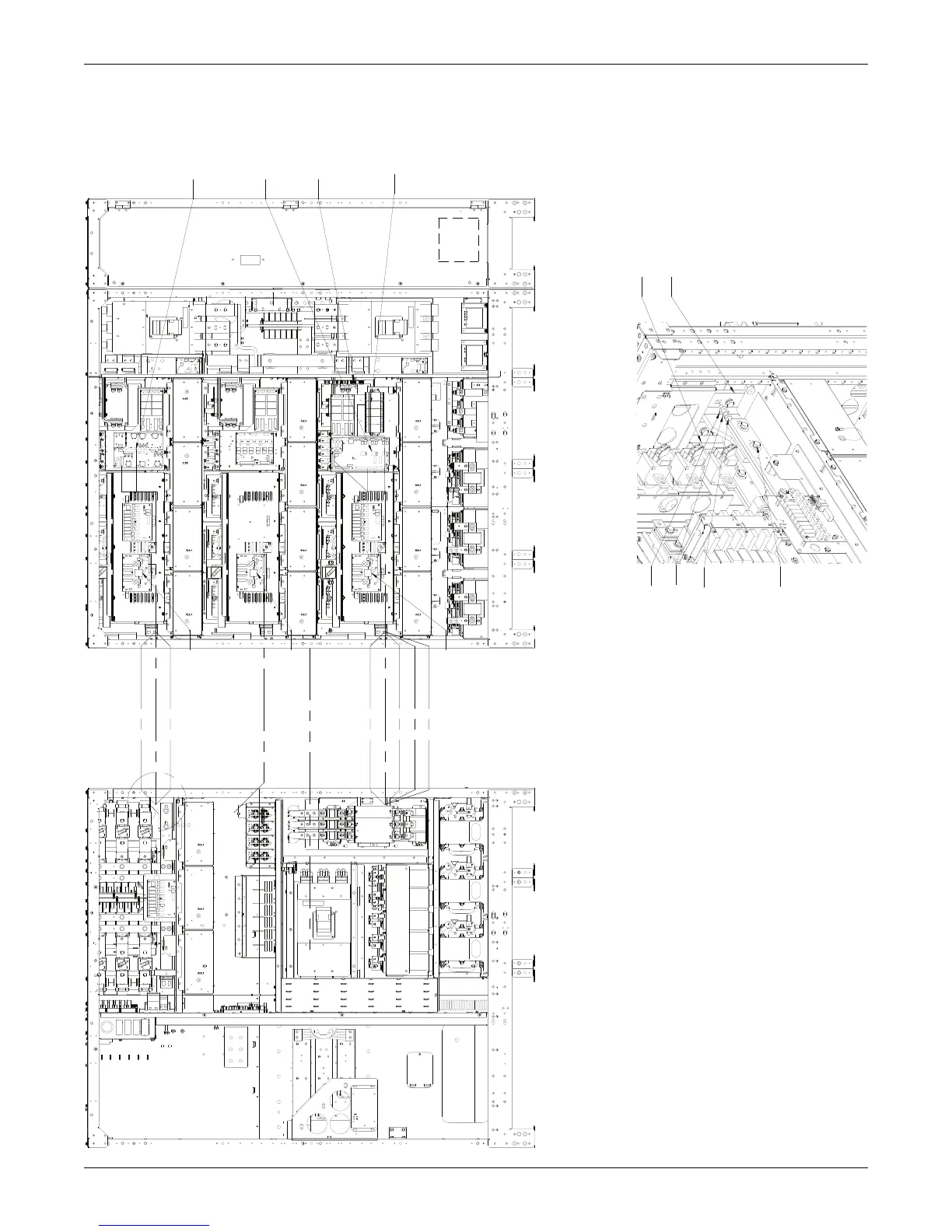

Low Voltage Wire Connections Between Parts A and B
Wires are coiled and tied in Part A.
Uncoil, route and connect wires in finish part as shown.
Use wire label as guide for “TO” component, connection ID and wire part number.
Tie wires away from sharp edges, busbar and electronic components.
DC Power Connection Between Parts A and B
(+) DC BUSBAR
LOOSEN HARDWARE TO ALLOW
BUSBAR TO MOVE TO JOIN TO
PART B BUSBAR.
RETIGHTEN AND TORQUE TO
27 N-m (240 in-lb)
02-806704-
PHASE A
02-806704-
PHASE B
02-806704-
PHASE C
02-806707-
02-806705-
02-806716-
F42 & F43
(-) DC BUSBAR
531988G2
531985G1
531983G1
531985G2
531984G1
531985G3
531988G1
532061G1
532062G1
Detail A
DETAIL A
To Next Page
