Two-Rack Local: A PLC or NIU I/O Station connected directly to one
expansion rack with a non-isolated Expansion Receiver Module
(IC200ERM002). Maximum cable length is 1 meter.

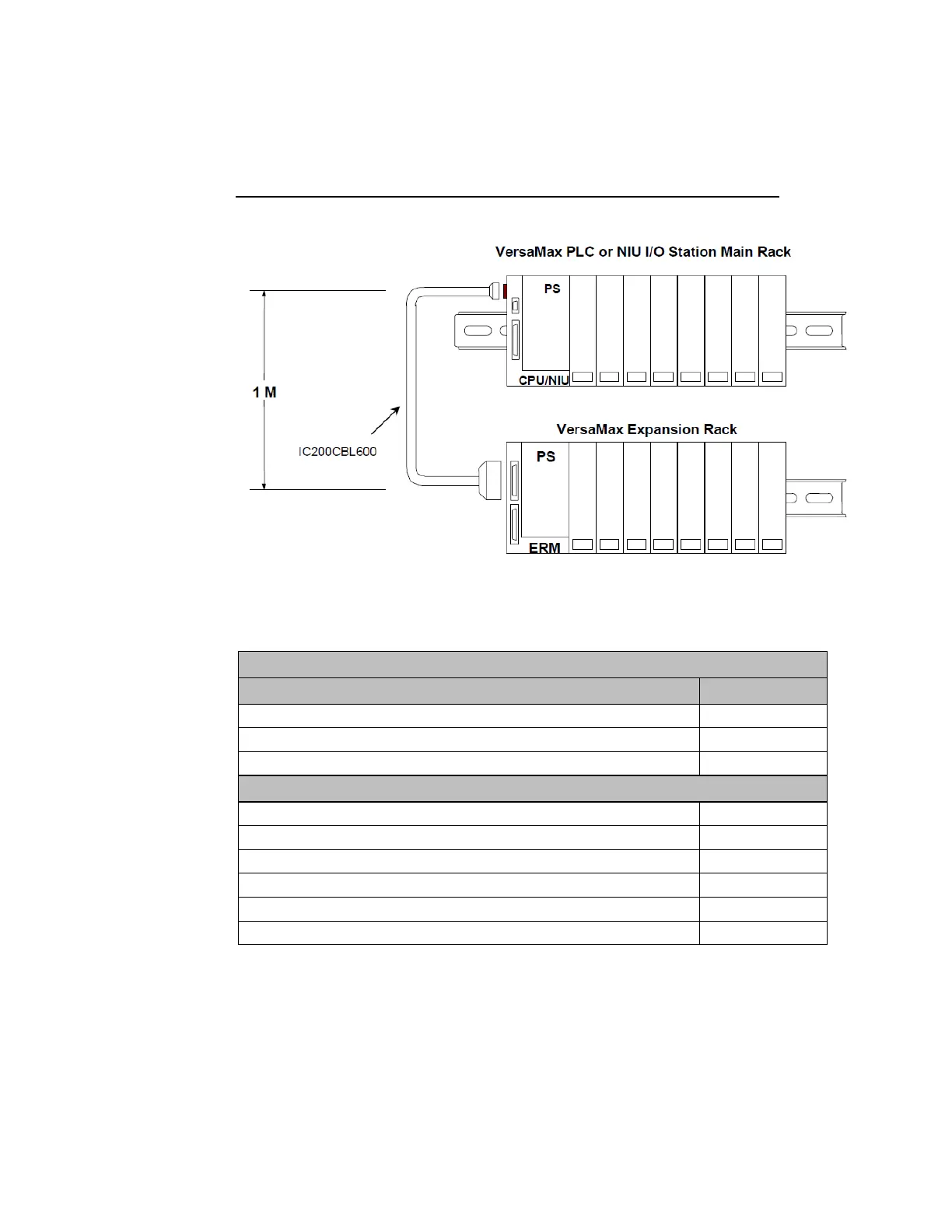

Figure 8: Example of Two-Rack Local VersaMax Expansion Modules
Available Expansion Modules
The following Expansion Modules and related products are available:
Expansion Transmitter Module
Expansion Receiver Module, Isolated
Expansion Receiver Module, Non-isolated
Expansion Cable, 2 meters
Expansion Cable, 15 meters
Terminator Plug (included with ETM)
See the VersaMax Modules, Power Supplies, and Carriers User’s Manual
(GFK-1504) for information about VersaMax Expansion modules.
