PACSystems VersaMax Genius Network Interface User Manual Section 2
GFK-1535D Jan 2023
Installation 35
2.10 Special Switch Settings on the NIU
The lettered positions of the rotary switches can optionally be used to:
•
Use a serial bus address that has been sent from the network.
•
Use a baud rate that has been sent from the network.
•
Re-enable autoconfiguration.

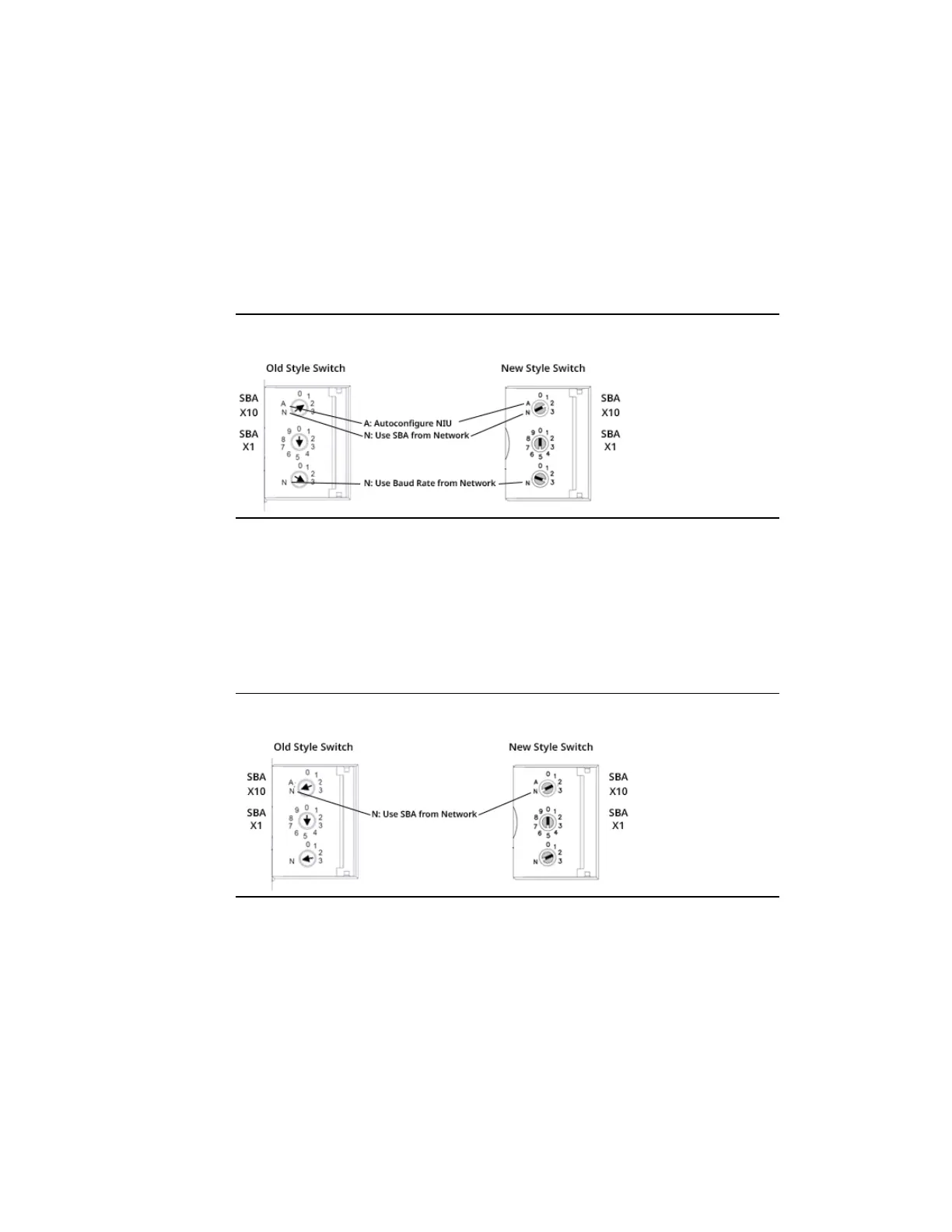

Figure 28: NIU Special Switch Settings
2.10.1 Using a Network Serial Bus Address
To use a Serial Bus Address previously received via a Set SBA datagram
from the network instead of the switch settings, set the upper switch
(SBAx10) to the N (network) position and cycle power to the NIU
Figure 29: Network Serial Bus
