PACSystems VersaMax Genius Network Interface User Manual Section 2
GFK-1535D Jan 2023
Installation 18
2.1 Module Clearance
Maintain a clearance of 2 inches (5.1cm) above and below the equipment
and 1 inch (2.54cm) to the left. Additional clearance requirements are
shown below.

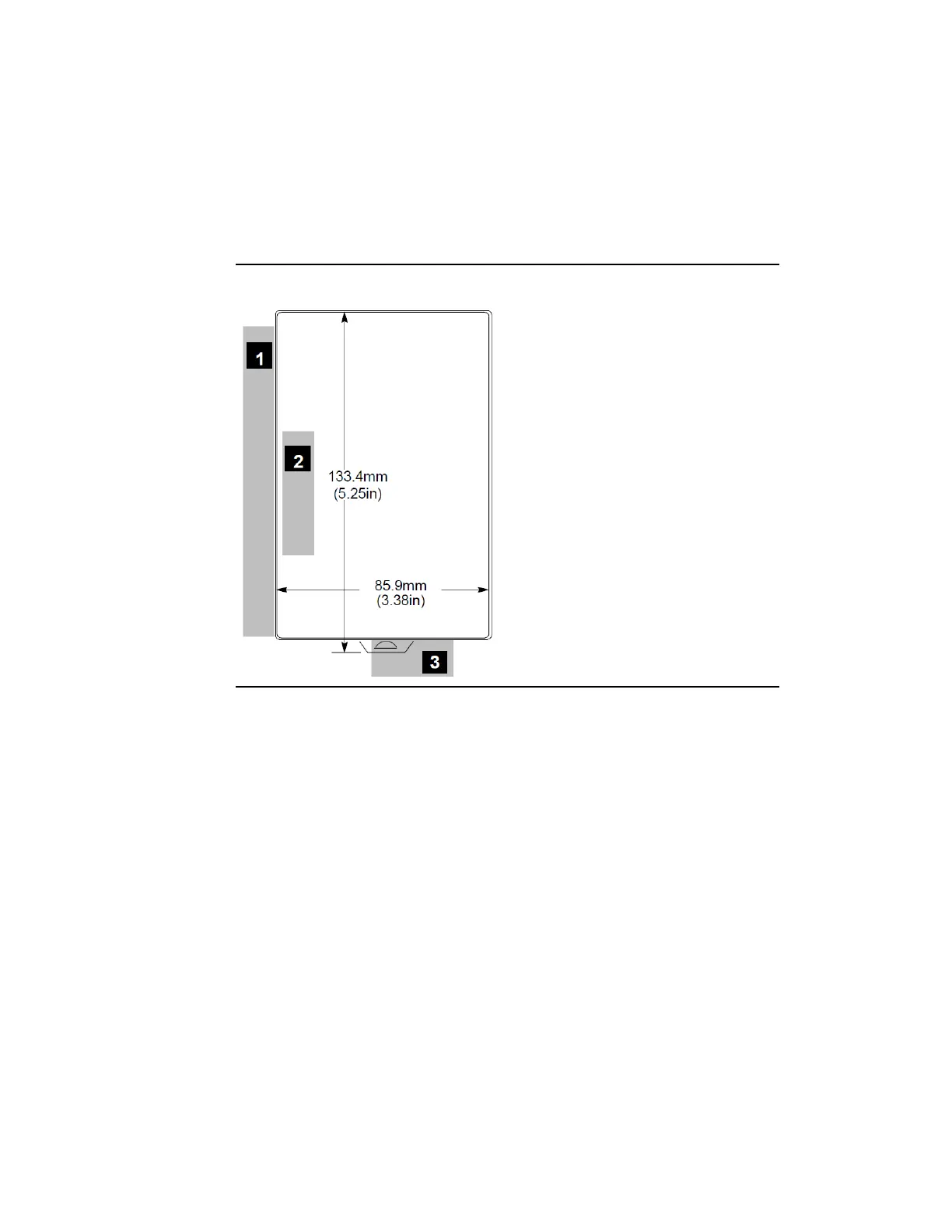

Figure 9: Module Clearance
1.
Allow sufficient finger clearance for opening the NIU door.
2.
Allow adequate clearance for communications cables.
3.
Allow adequate space for power wiring.
