Configuration 86
Fault Byte 2

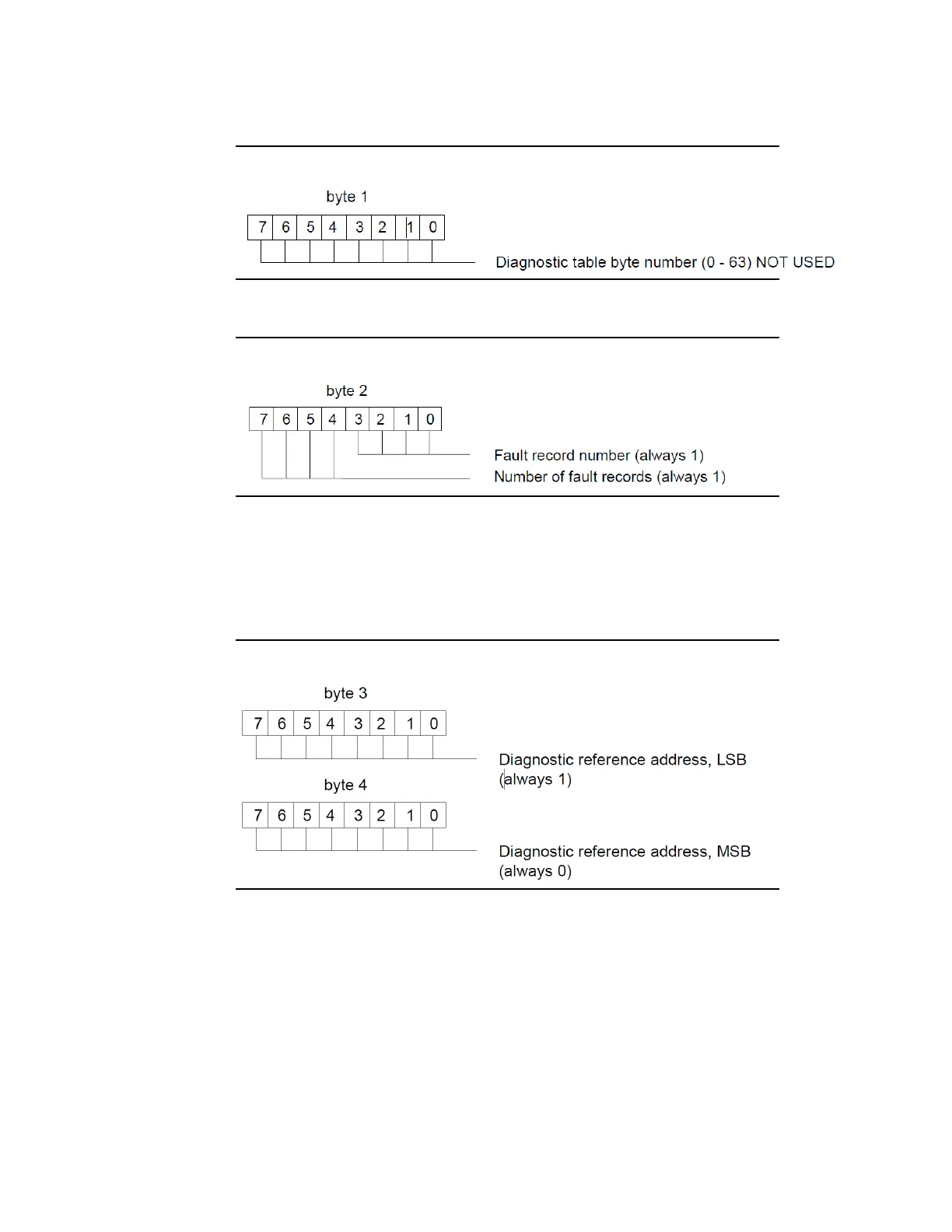

Figure 60: Fault Byte 2
Fault Byte 3
Figure 61: Fault Byte 3
Fault Bytes 4 and 5
Fault bytes 4 and 5 (bytes 3 and 4 of the datagram) identify the reference
offset (within the NIU itself) assigned to the faulted module. This is an
internal reference.
Figure 62: Fault Bytes 4 and 5
