Cerabar S/Deltabar S Description of parameters (FF configuration program)
Endress+Hauser 45
LEVEL_ADJUST_
DENSITY/
ADJUST DENSITY
Entry
Index: 60
Data type: Float
Access: Auto, OOS
Enter density of fluid.
Prerequisite:
• MEASURAND_COMBINED = %-height and %, LEVEL_ADJUST_MODE = dry
• MEASURAND_COMBINED = %-height and volume, LEVEL_ADJUST_MODE = dry
• MEASURAND_COMBINED = %-height and mass, LEVEL_ADJUST_MODE = dry
• MEASURAND_COMBINED = height and %, LEVEL_ADJUST_MODE = dry
• MEASURAND_COMBINED = height and volume, LEVEL_ADJUST_MODE = dry
• MEASURAND_COMBINED = height and mass, LEVEL_ADJUST_MODE = dry
– MEASURAND_COMBINED = COMB. MEASURAND
– LEVEL_ADJUST_MODE = CALIBRATION MODE
Factory setting:
1.0
LEVEL_OFFSET/
ZERO POSITION
Entry
Index: 61
Data type: Float
Access: Auto, OOS
Enter value for level offset.
If the measurement should not start at the mounting location of the device, e.g. for containers
with a sump, carry out zero point shift (level offset).
Prerequisite:
• LEVEL_ADJUST_MODE/CALIBRATION MODE = dry
Factory setting:
0.0
P01-PMP75xxx-19-xx-xx-xx-001

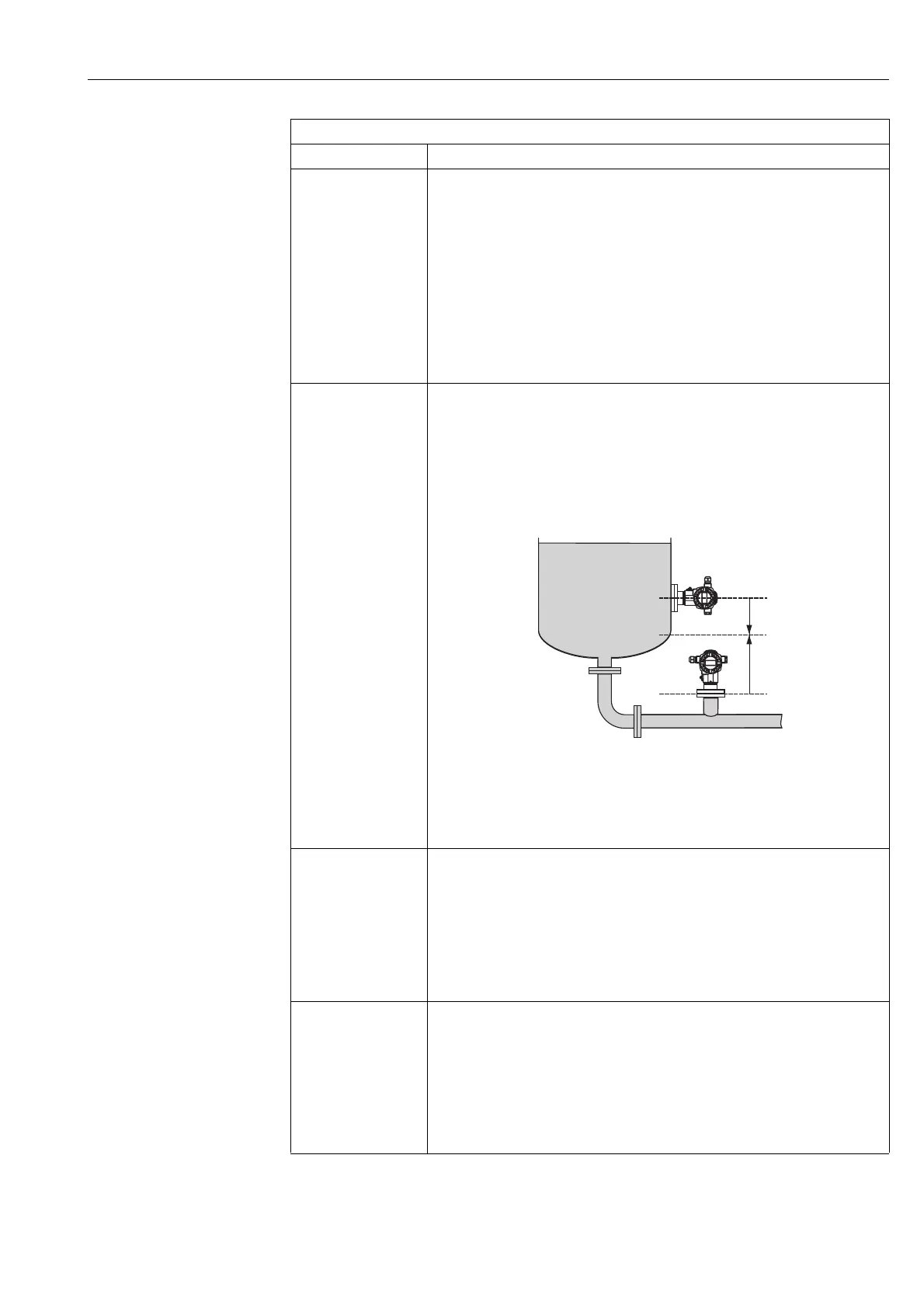

Fig. 8: Zero point shift
1 Device is mounted above the level lower range value: a positive value has to be
entered for the LEVEL_ADJUST_MODE/ZERO POSITION parameter.
2 Device is mounted below the level lower range value: a negative value has to be
entered for the LEVEL_ADJUST_MODE/ZERO POSITION parameter.
LEVEL_TANK_VOLUME
/TANK VOLUME
Entry
Index: 62
Data type: Float
Access: Auto, OOS
Enter tank volume.
Prerequisite:
• MEASURAND_LINEAR = volume, LEVEL_ADJUST_MODE = dry
• MEASURAND_LINEAR = mass, LEVEL_ADJUST_MODE = dry
– MEASURAND_LINEAR = LIN. MEASURAND
– LEVEL_ADJUST_MODE = CALIBRATION MODE
Factory setting:
1.0 m
3
LEVEL_TANK_HEIGHT/
TANK HEIGHT
Entry
Index: 63
Data type: Float
Access: Auto, OOS
Enter tank height.
Prerequisite:
• MEASURAND_LINEAR = volume, LEVEL_ADJUST_MODE = dry
• MEASURAND_LINEAR = mass, LEVEL_ADJUST_MODE = dry
– MEASURAND_LINEAR = LIN. MEASURAND
– LEVEL_ADJUST_MODE = CALIBRATION MODE
Factory setting:
1.0 m
Pressure Transducer Block
Parameter Description
➀
➁
