Endress+Hauser Mycom CLM 152 Operating Instructions

FCYK additional module:
Comprising 3 relays for limit contactor
or Chemoclean
89 Contact 2
90 Contact 2
91 Contact 3
92 Contact 3
93 Contact 4
94 Contact 4
FCXI additional module:
Comprising two binary input contacts for Hold
and remote measuring range switch-over,
and an analogue input with power supply for
transmitter
21 Current input, positive
22 Current input, negative
81 Contact input 1
82 Contact input 1
83 Contact input 2
84 Contact input 2
Terminal for use of internal auxiliary voltage
If the analogue input of the FCXI module is not
used, the internal measuring transmitter
power supply is used to power the contact
inputs.

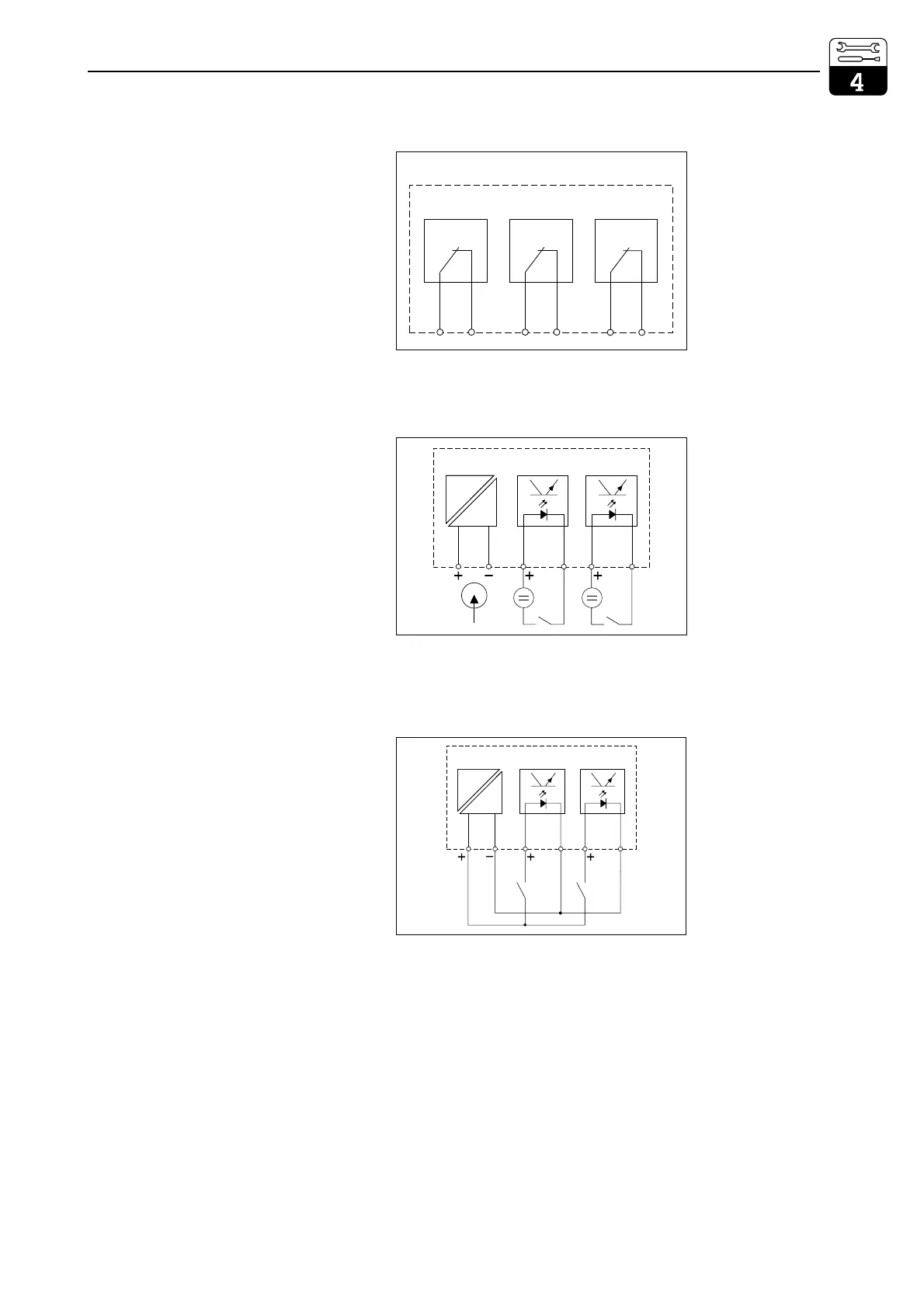

Contact 2 Contact 3 Contact 4
89 90 91 92 93 94
fcykcon.cdr
Fig. 4.9
Connection of
FCYK module, non-Ex
mA
Contact inputs
fcxicon.cdr
Current input
21 22 81 82 83 84
Fig. 4.10
Connection of
FCXI module
Power supply Contact inputs
hilfind.cdr
21 22 81 82 83 84
mA
Fig. 4.11
Connection of
FCXI module as
internal aux. voltage
lm152e04.chp
Mycom CLM 152 Installation
Endress+Hauser 15
