D) Freely selectable current output characteristic
A current output table containing up to
21 elements is provided to implement any
other output characteristics:
Sensor Range 20 mA input
Conductivity
CLS 50
200 µS/cm – 1000 mS/cm
CLS 52 2.00 mS/cm – 1000 mS/cm
k = 0.01
0.200 µS/cm – 200.0 µS/cm
k = 0.1
2.00 µS/cm – 2000 µS/cm
k=1
20.0 µS/cm – 20.00 mS/cm
k=10
200 µS/cm – 200.0 mS/cm
MΩ
k = 0.01
200 kΩ cm – 20.00 MΩ cm
k = 0.1
20.0 kΩ cm – 2000 kΩ cm
k=1
2.00 kΩ cm – 200.0 kΩ cm
The 0/4 mA value is automatically set to 1% of the 20 mA value.
20
40
60
80
100
Current output
[%]
Meas. range final value
Conductivity [µS/cm]
edf_tab.cdr
1
2

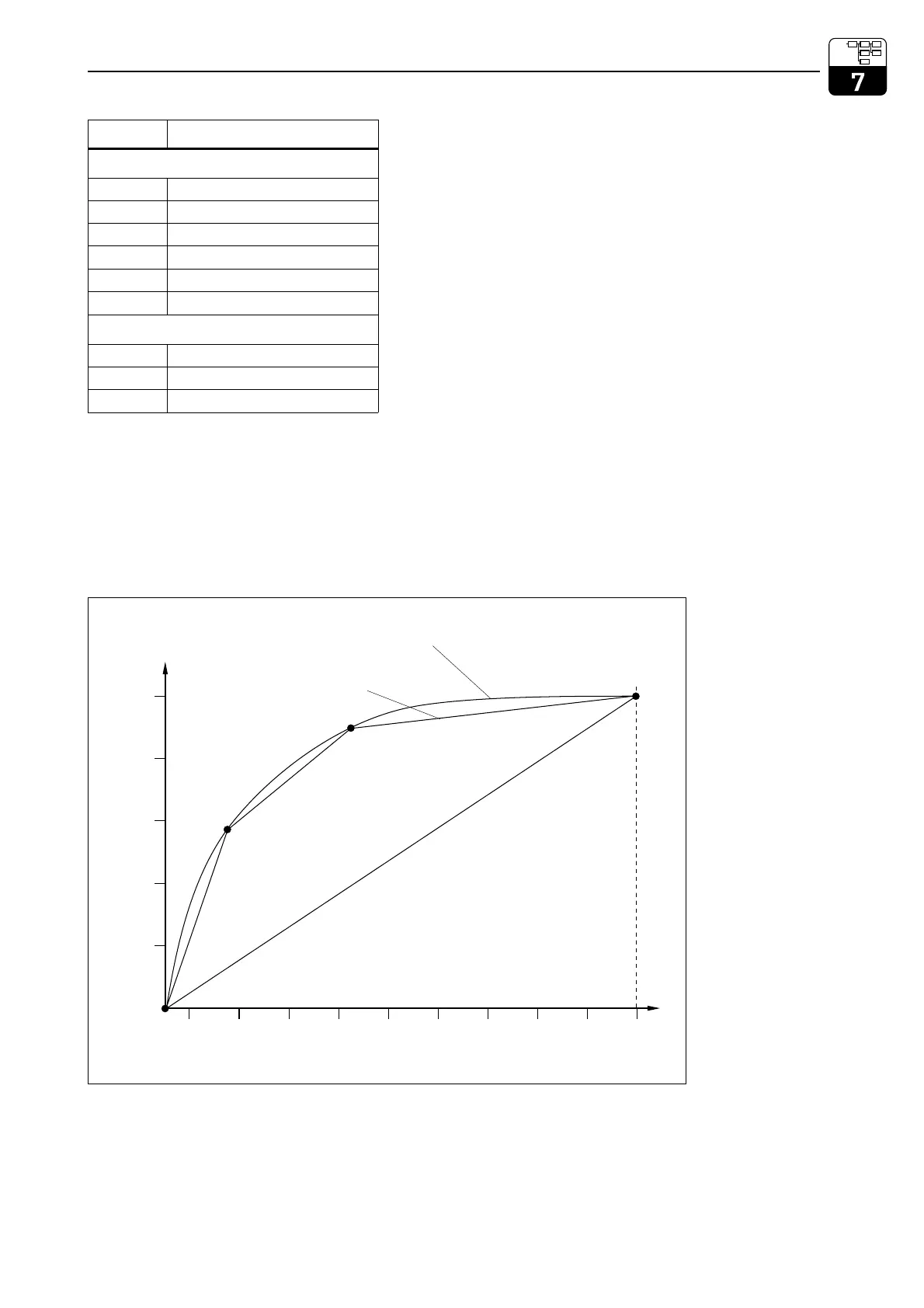

Fig. 7.5
Example of characteristic
with 2 and 4 support
points
1: real curve
2: interpolated curve
lm152e07.chp
Mycom CLM 152 Instrument configuration
Endress+Hauser 45
