11.12 Information on the response of the status output
General information
If you have configured the status output for "LIMIT VALUE" (ä 132, ASSIGN STATUS function)
you can specify the required switch points in the ON-VALUE (ä 133) and OFF-VALUE
functions (ä 134).
If the measured variable in question reaches these predefined values, the status output switches as
shown in the illustrations below.

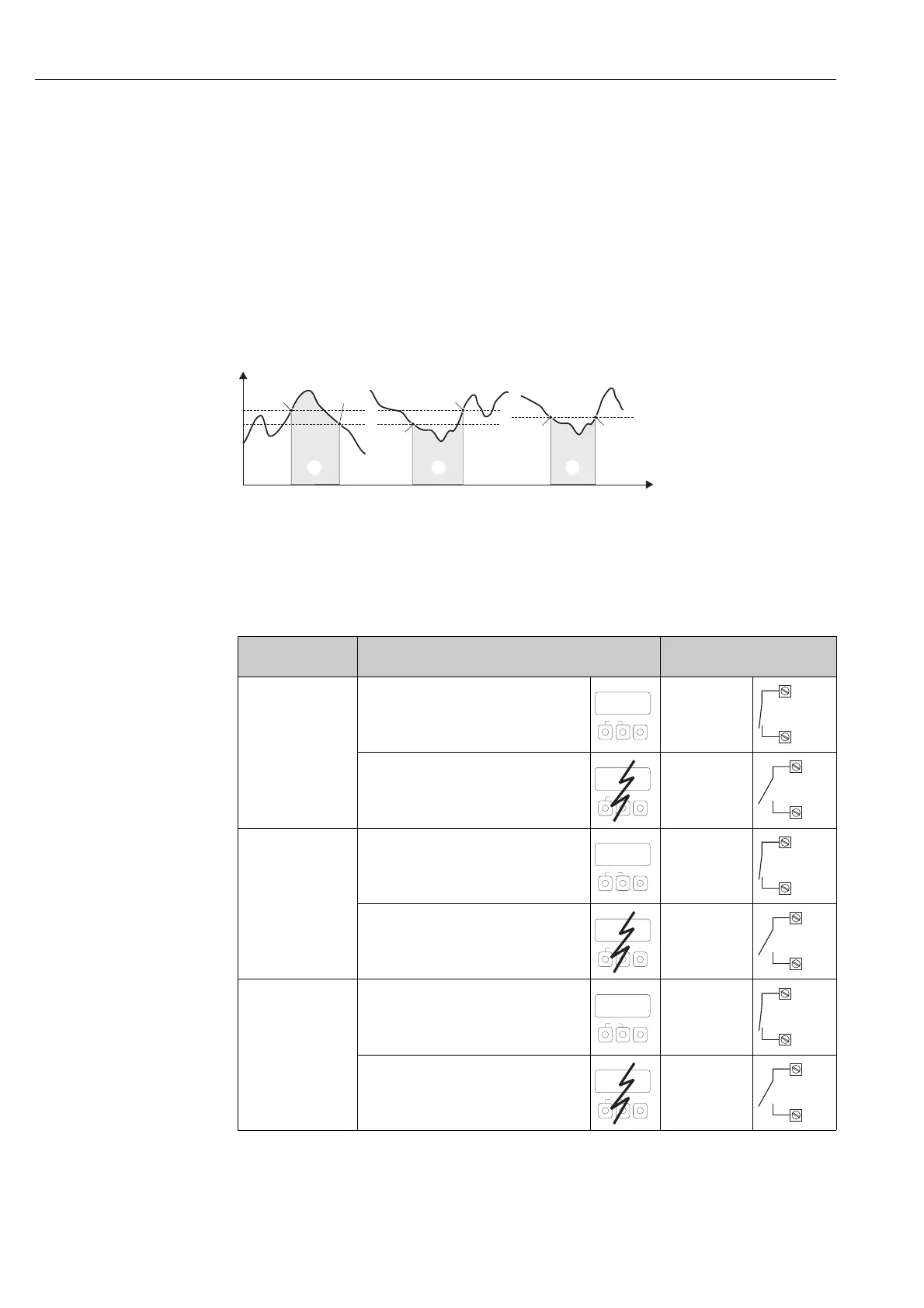

Status output configured for limit value
The status output switches as soon as the current measured variable undershoots or overshoots a
defined switch point.
Application: monitoring flow or process-related boundary conditions.
A0001235
m
ON  SWITCH-OFF POINT (maximum safety)
n
ON > SWITCH-OFF POINT (minimum safety)
o
Status output switched off (not conductive)
Switching behavior of the status output
t
oo
nn
m
o
n
m
AB C
m
Function Status
Open collector behavior
(transistor)
ON (operation) System in operation Conductive 22


23
System not in operation
(power supply failed)
Not conductive 22


23
Fault message System OK Conductive 22


23
(System or process error)
Fault È failsafe mode of outputs/inputs and
totalizers
Not conductive 22


23
Notice message System OK Conductive 22


23
(System or process error)
Fault È continuation of operation
Not conductive 22


23
