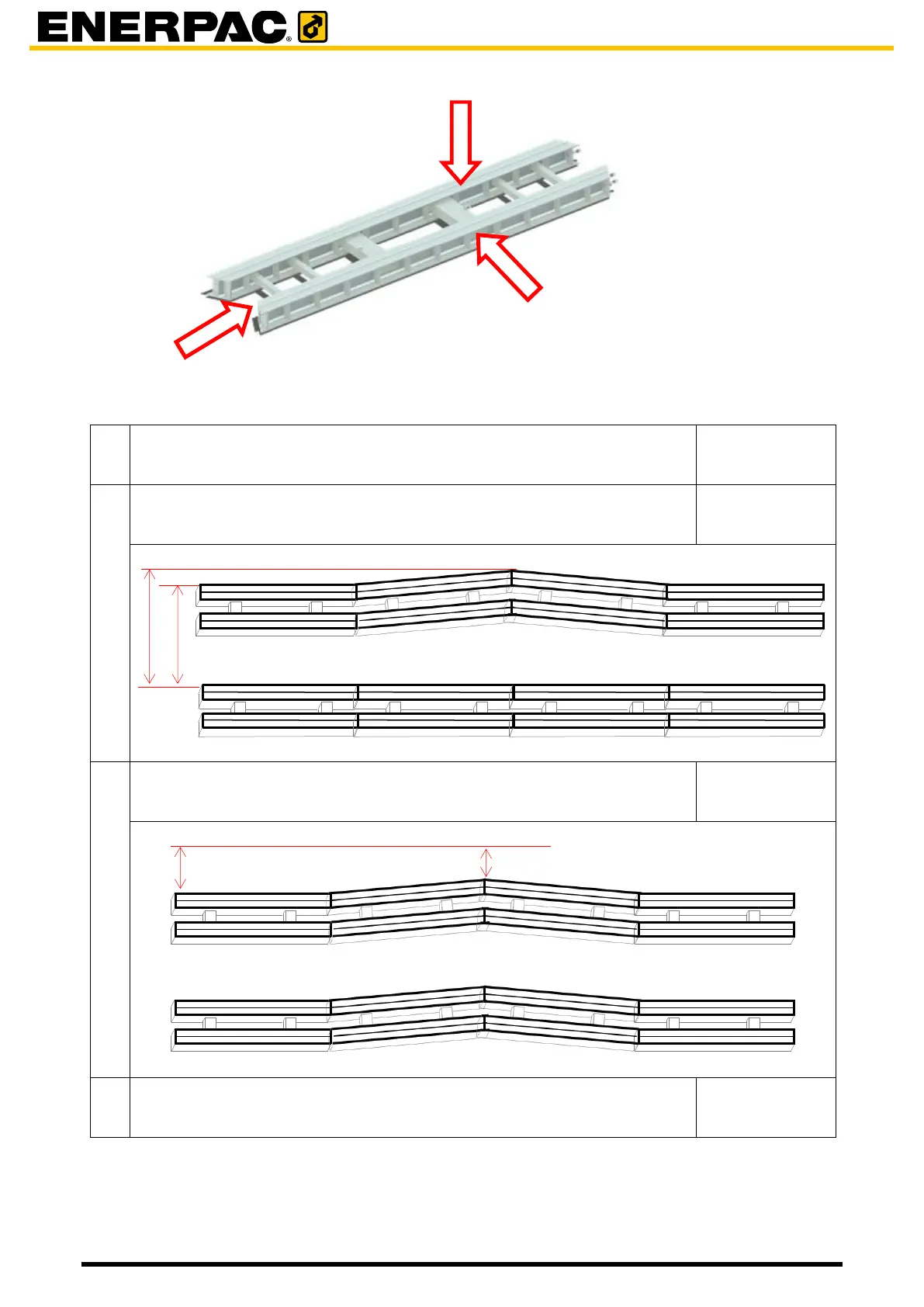

Alignment requirements for skid tracks:
Align the Skid tracks according to the followaligning requirements:
No
Alignment requirement
Tolerance
1
The Skid tracks shall be in parallel
12 mm
(top view)
2
The Skid tracks shall be aligned from the start to the end
12 mm
(top view)
3
The skew of the Skid tracks shall be zero
0.2°
top view
front view
side view
