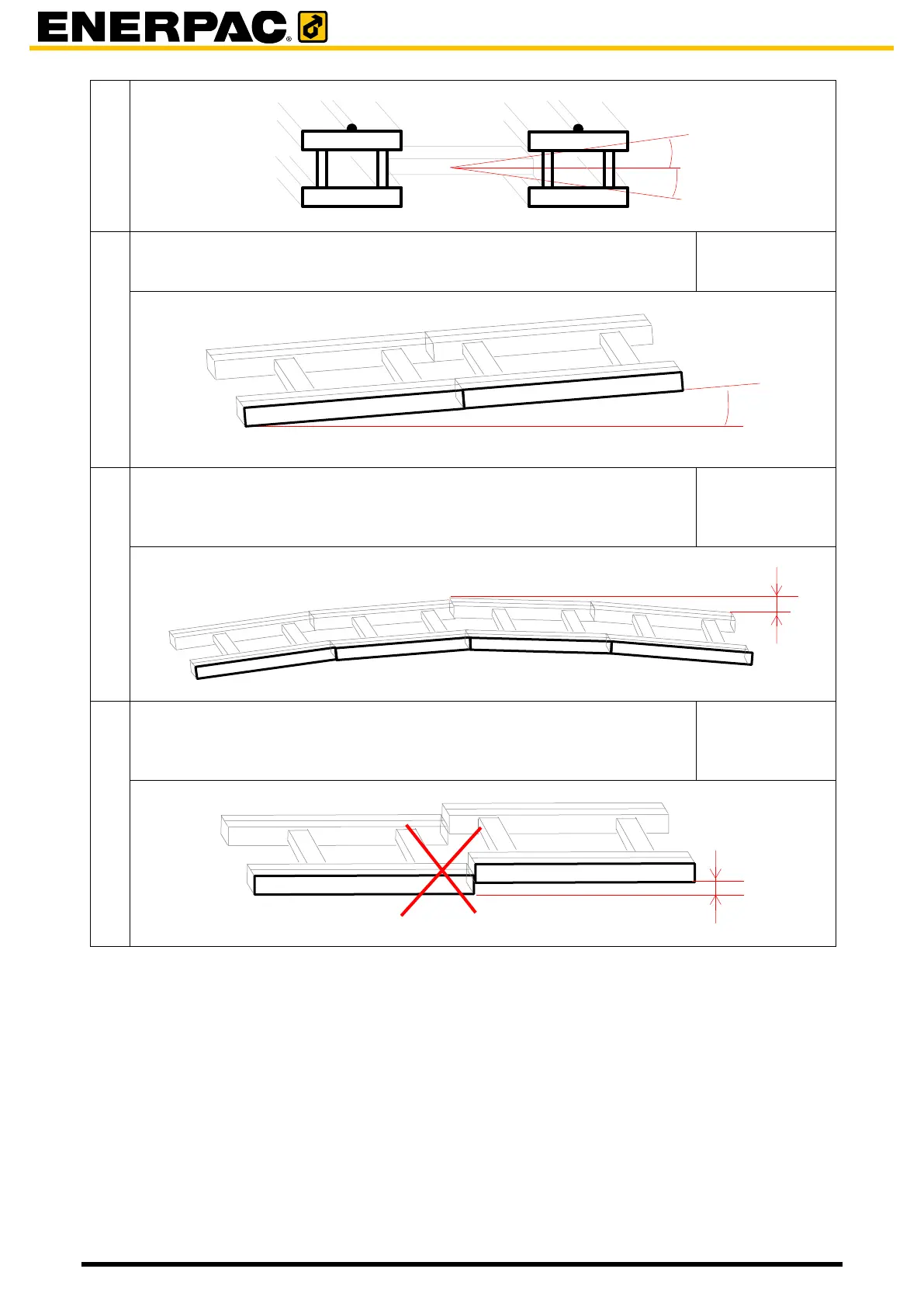

(front view of one skid track)
4
The inclination of the Skid tracks shall be zero
0.2°
(side view)
5
The Skid tracks shall be flat
5 mm over 3
meter
(side view)
6
The surfaces of the segments of the Skid tracks shall be well aligned.
Use shims if necessary
-
(side view)
Recommended tools:
For alligning the system, enerpac recommends to use the following tools:
• Rotary Laser level
• Digital spirit level(degrees and mm)
• Selfleveling Multi-line laser
• Theodolite
Make sure the tools are calibrated/checked by a certified company.
