ENSONIQ DP/4+ User Manual

Section 3 — Config Parameters
6 ENSONIQ DP/4+ Reference Manual
o3
CD Unit Routing=
[C®D] feedback1
03 — CD Unit Routing Range: serial, parallel, feedback1 or feedback2
Units C and D can also be routed together in one of four ways.
o4
AB - CD Routing=
AB ~ CD serial
04 — AB - CD Routing Range: serial or parallel

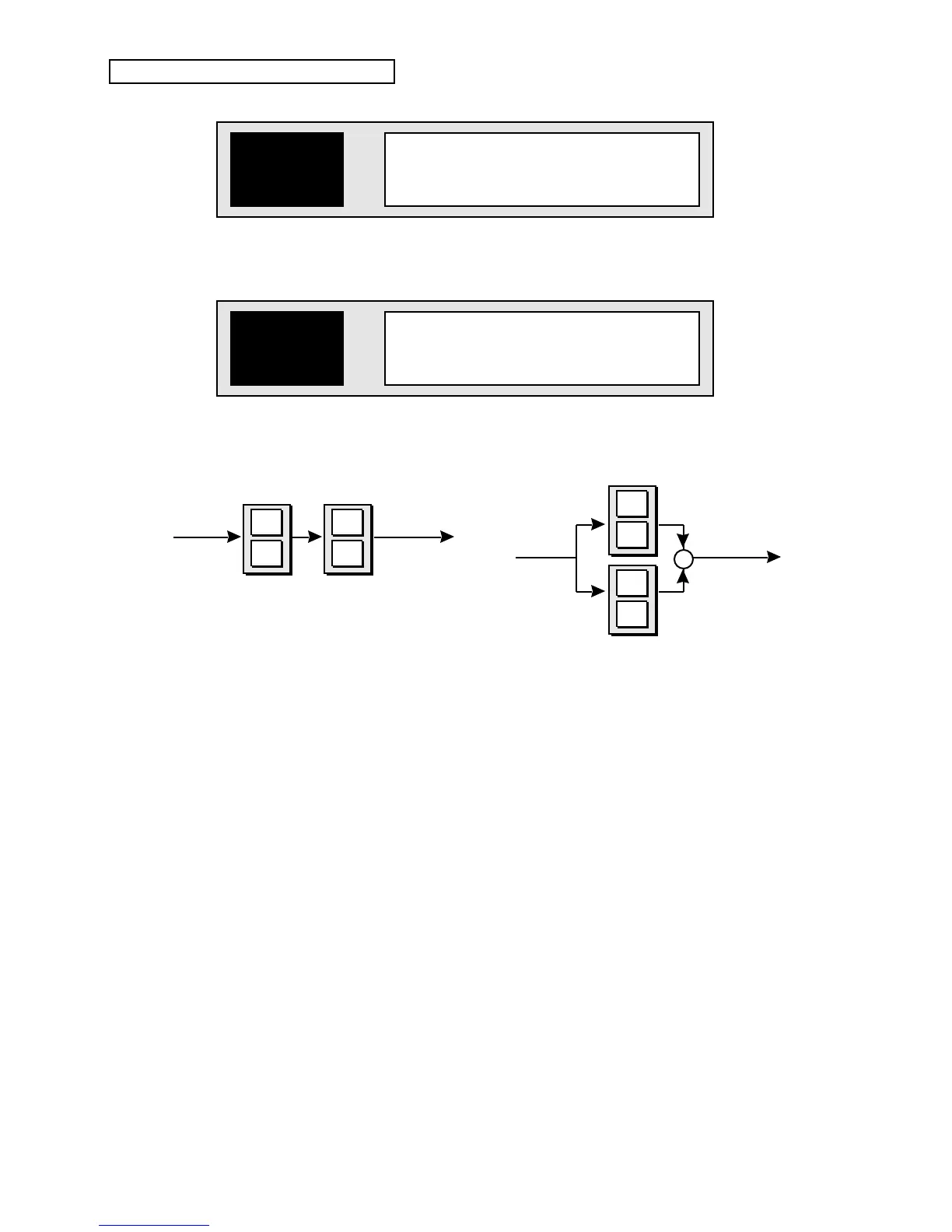

Units A and B can be routed to Units C and D in one of two different ways:
A
B
C
D
Input Output
Signal Signal
Serial routing between AB and CD
Input Output
Signal Signal
+
A
B
C
D
Parallel routing between AB and CD
By combining parameters 02, 03, and 04, there are 32 different ABCD routing possibilities.
Note: The difference between Feedback 1 and Feedback 2 is in the dry path only (as
shown earlier). Because we are not showing the dry path variations, there are only 18
different ABCD routing possibilities shown on the next page.
