Section 1 — Controls & Basic Functions
ENSONIQ DP/4+ Reference Manual 19
About Presets
The DP/4+ has 400 presets in its memory, but you can’t get to all of them at any one time. This is
because:
• 100 of the presets are Config presets which change the input configuration and routing as
well as load new effects algorithms; and
• of the remaining 300 presets, the type(s) of presets available for viewing and selecting
depends on the current config type.
Input Configurations

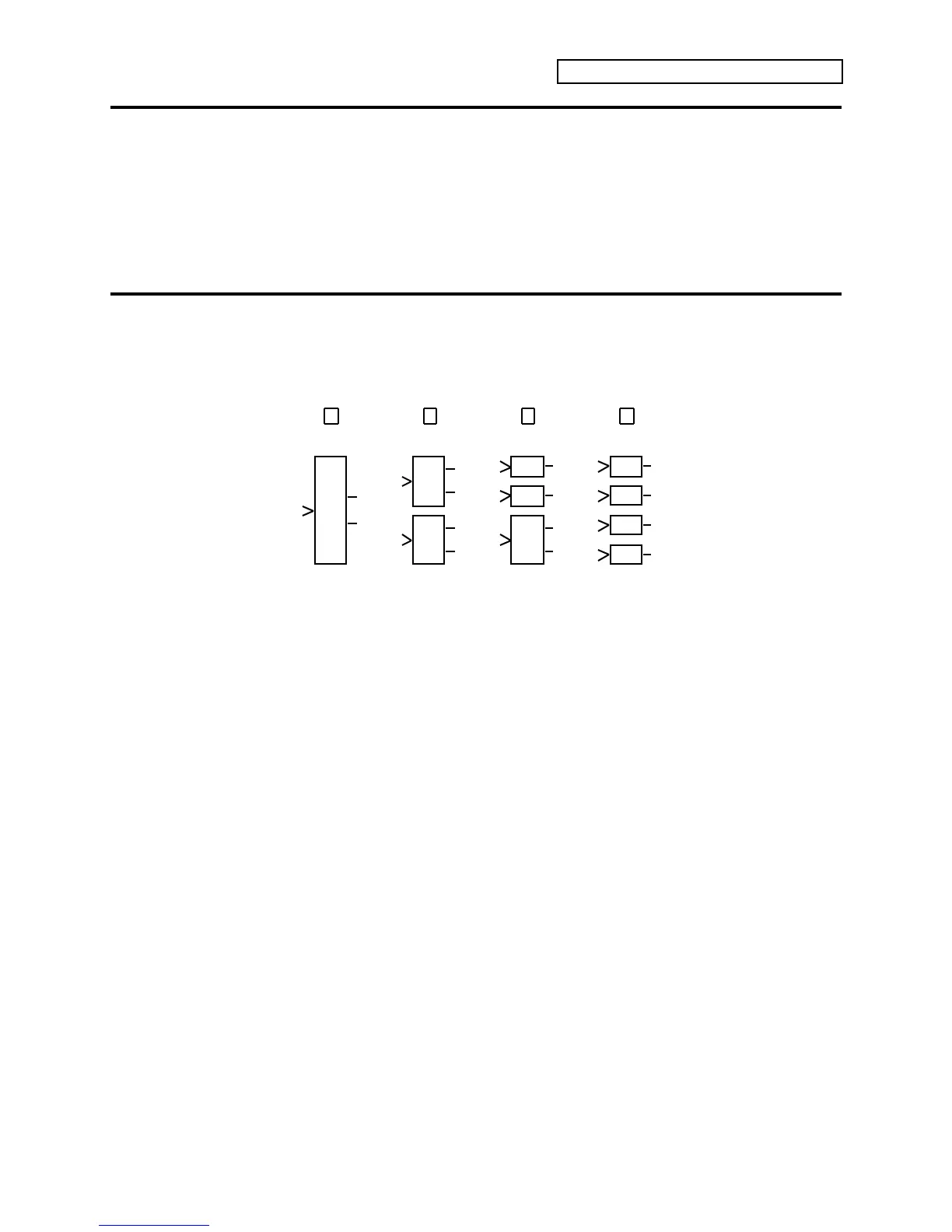

The diagram in the upper right corner of the DP/4+ shows the input configurations. All of the
DP/4+ input configurations are based on this diagram:
input configurations
1 source 2 source
A
B
C
D
1
2
3
4
1
2
3
3 source
B
A
C
D
1
2
3
1
2
3
4 4
4 source
A
B
C
D
1
1
2
A
B
C
D
1
3
1
2
3
4
One Source Input Configuration
In a 1 Source Config, the LED above the 1 source input configuration diagram will light. Use
Input 1 for a mono signal (such as a guitar), or Inputs 1 and 2 if your source is a stereo signal
(such as a keyboard). The choice of stereo or mono for an input is a 1 Source Config parameter,
and will be covered later. Remember, any mono signal (high or low impedance) can be plugged
into the jack on the front panel. The Input 1 jack (front panel) will always override the Input 1
jack on the rear panel.
Two Source Input Configuration
In a 2 Source Config, the LED above the 2 source input configuration diagram will light. For
your first source, use Input 1 for a mono signal, or Inputs 1 and 2 if your source is a stereo signal.
For your second source, use Input 3 for a mono signal, or Inputs 3 and 4 if your second source is a
stereo signal. You can choose a stereo or mono input selection for Inputs 1 and 2 and/or Inputs 3
and 4 using the appropriate 2 Source Config parameters.
Three Source Input Configuration
In a 3 Source Config, the LED above the 3 source input configuration diagram will light. Use
Inputs 1 and 2 for two independent mono signals. For your third source, use Input 3 for a mono
signal (such as a guitar or a microphone), or Inputs 3 and 4 if your source is a stereo signal. The
choice of stereo or mono for Inputs 3 and 4 is a 3 Source Config parameter.
Four Source Input Configuration
In a four source config, the LED above the 4 source input configuration diagram will light. Four
separate mono sources are plugged into Inputs 1, 2, 3, and 4.
