ENSONIQ DP/4+ User Manual

Section 1 — Controls & Basic Functions
ENSONIQ DP/4+ Reference Manual 7

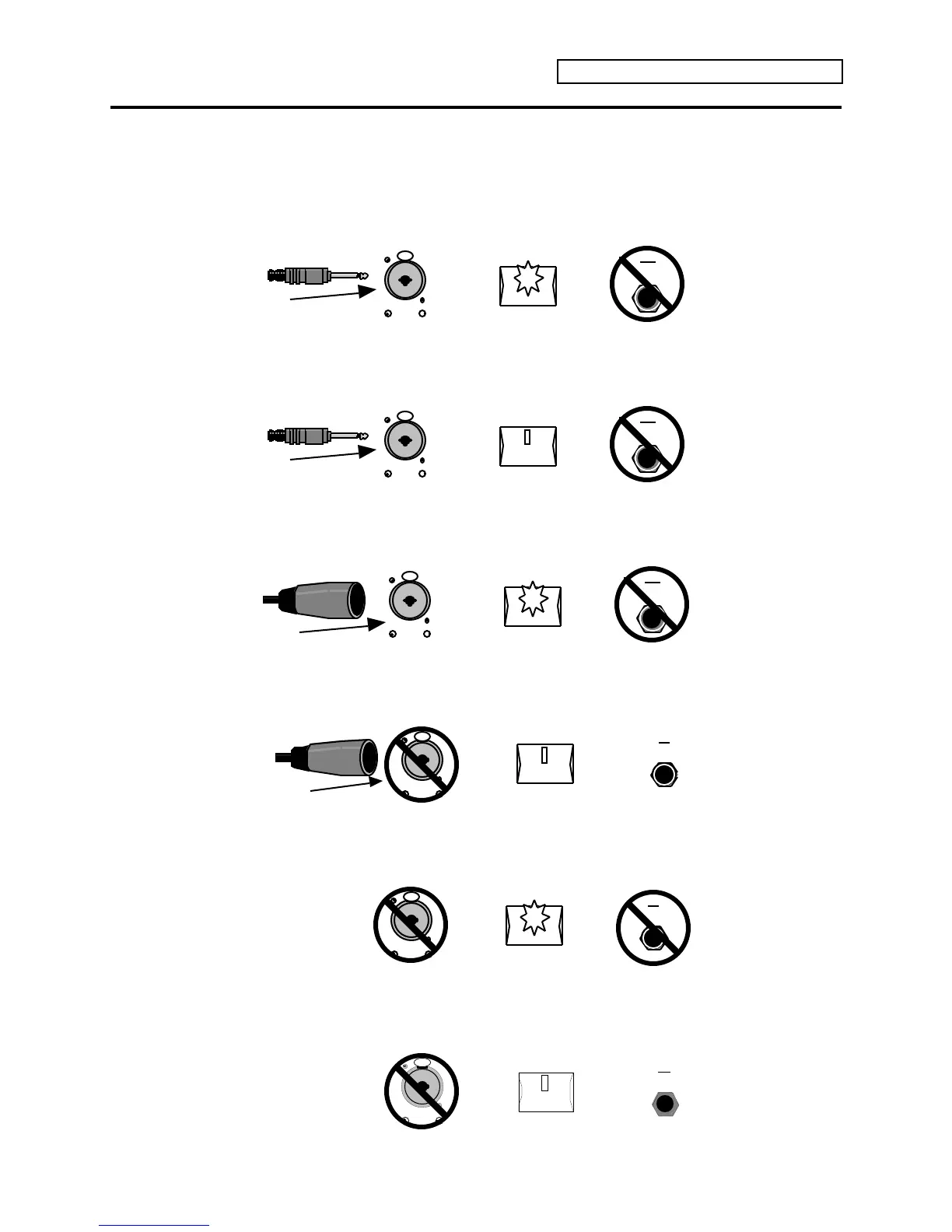

The Input 1 Jack — Front Panel vs. Back Panel
The following diagrams show how the front panel Input 1 jack (along with the {MIC_GAIN}
button) affects the rear panel Input 1 jack.
With a 1/4” phone plug connected to the front panel Input 1 jack, and the Mic Gain LED on:
The front panel Input 1 works — the rear panel Input 1 doesn’t work:
Mic Gain
rear input 1 off
input 1
inst/mic
push
1
mono
Inputs
With a 1/4” phone plug connected to the front panel Input 1 jack, and the Mic Gain LED off:
The front panel Input 1 works — the rear panel Input 1 doesn’t work:
input 1
inst/mic
push
Mic Gain
rear input 1 off
1
mono
Inputs
With an XLR cable connected to the front panel Input 1 jack, and the Mic Gain LED on:
The front panel Input 1 works — the rear panel Input 1 doesn’t work:
Mic Gain
rear input 1 off
input 1
inst/mic
push
1
mono
Inputs
With an XLR cable connected to the front panel Input 1 jack, and the Mic Gain LED off:
The front panel Input 1 doesn’t work — the rear panel Input 1 works:
Mic Gain
rear input 1 off
input 1
inst/mic
push
1
mono
Inputs
L
With nothing connected to the front panel Input 1 jack, and the Mic Gain LED on:
The front panel Input 1 doesn’t work (nothing’s plugged into it) — the rear panel Input 1 doesn’t work:
Mic Gain
rear input 1 off
input 1
inst/mic
push
1
mono
Inputs
L
With nothing connected to the front panel Input 1 jack, and the Mic Gain LED off:
The front panel Input 1 doesn’t work (nothing’s plugged into it) — the rear panel Input 1 works:
Mic Gain
rear input 1 off
input 1
inst/mic
push
1
mono
Inputs
L
