Installing an Optional Mini-GBIC
SecureStack C2 Installation Guide 3-5
Installation
ToinstallaMini‐GBICwithanMT‐RJconnection,refertoFigure 3‐1;foranLC
connection,Figure 3‐2;orforanRJ45connection,Figure 3‐3,thenproceedasfollows:
1. HoldtheMini‐GBICwithitstopsidefacingupandits7‐pinedgeconnectorfacingthe
port
slot.
2. CarefullyaligntheMini‐GBICwiththeportslot.
3. PushtheMini‐GBICntotheportslotuntiltheMini‐GBIC“clicks”andlocksinto
place.

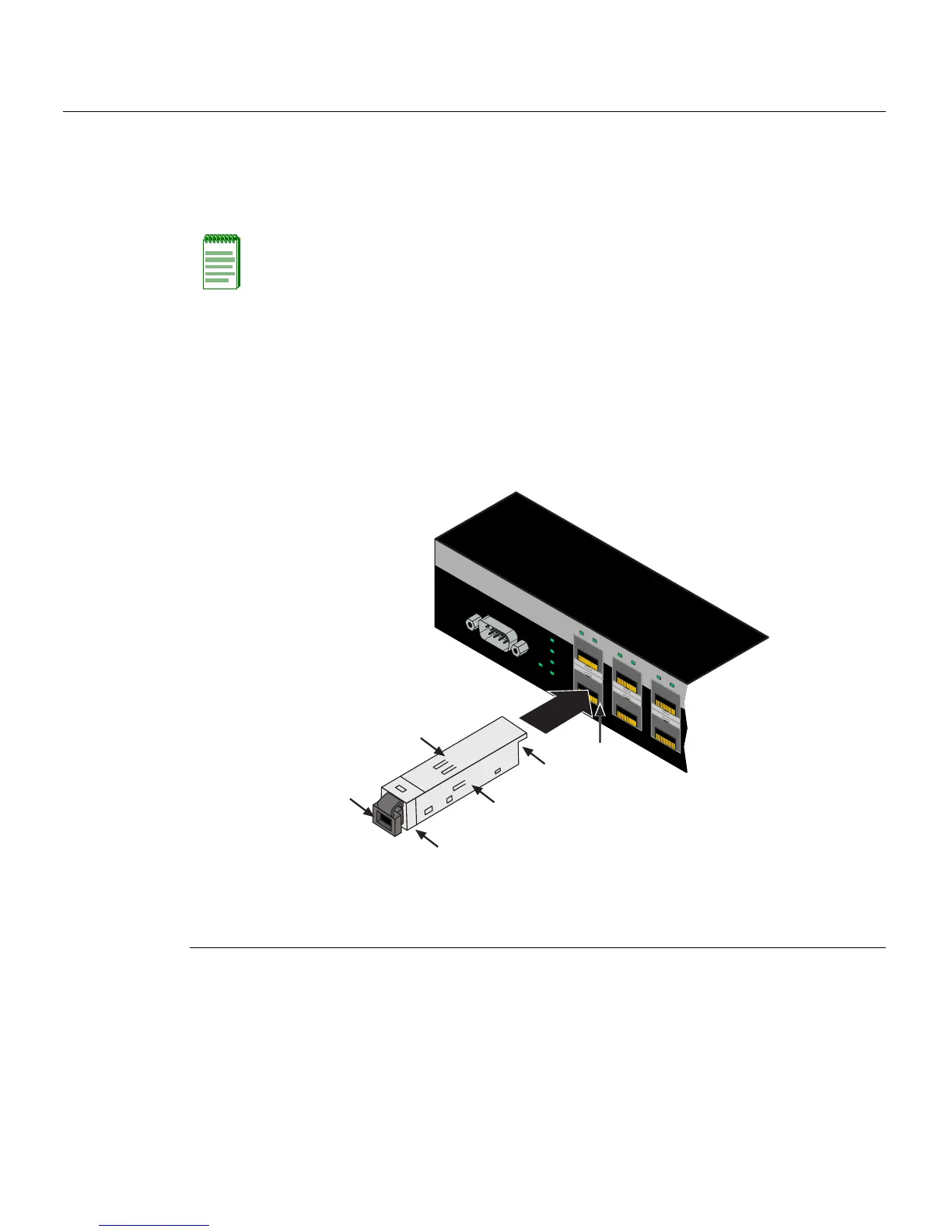

Figure 3-1 Mini-GBIC with MT-RJ Connector
Note: If the Mini-GBIC is one with an RJ45 connector such as an MGBIC-02 (Figure 3‐3),
the installation procedure is the same as described below. However, the Mini-GBIC has a
wire handle to release it.
1 Mini-GBIC (MGBIC-MT01) 4 Port slot
2 Mini-GBIC
, top side 5 Mini-GBIC, protective dust cover
3 7-Pin edge connector (insertion side) 6 Release tab
Console
6
5
4
3
2
1
1
2
CPU
UP
RPS
MGR
DOWN
Ä
Á
À
Â
Ã
Å
