Enterasys SecureStack C2 C2G170-24 Hardware Installation Guide

Rack Mounting the Switch
3-10 Hardware Installation

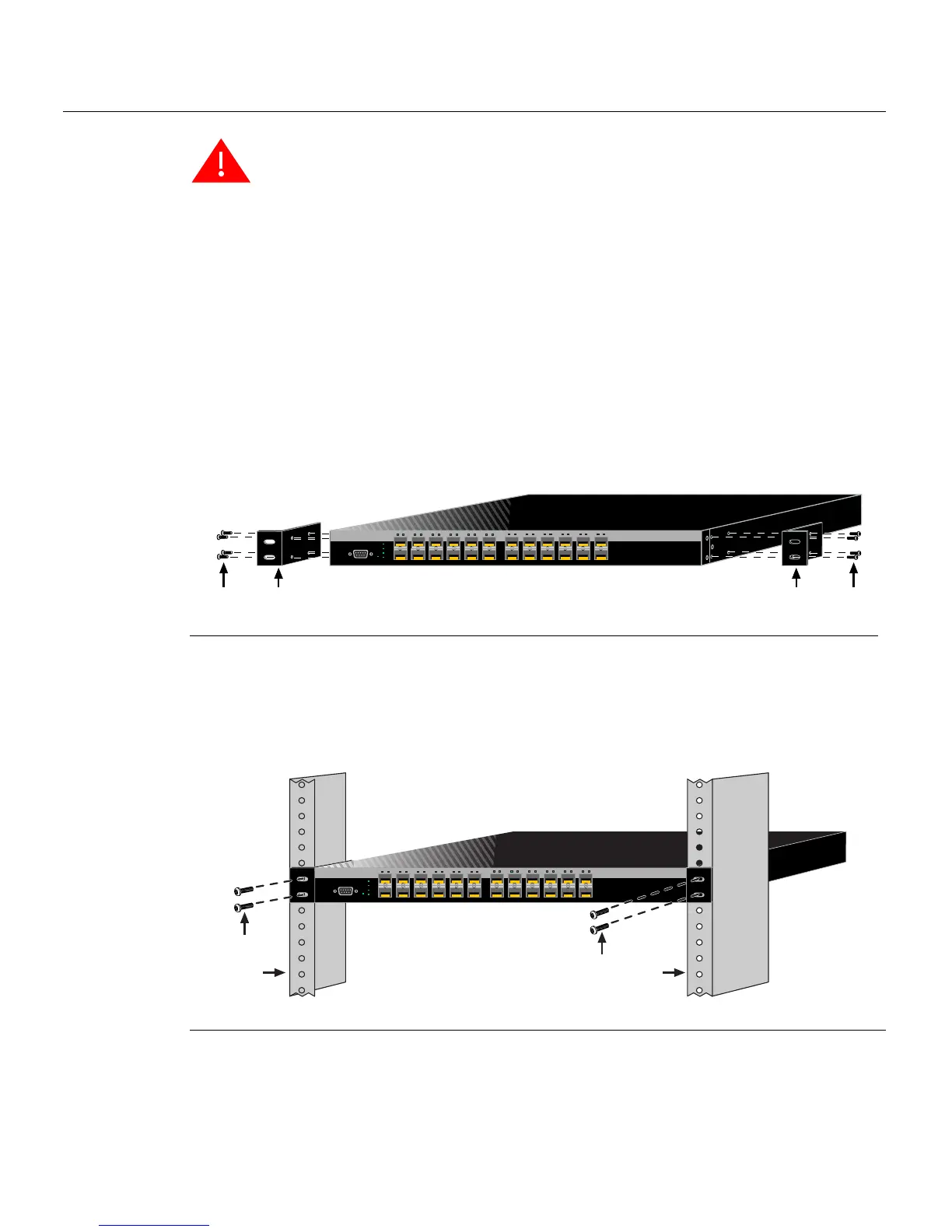

Attaching Brackets and Installing in Rack
Proceedasfollowstoinstalltheswitchintoa19‐inchrack:
1. Attachtherackmountbracketstotheswitch,asshowninFigure 3‐6,usingtheeight
M3 x 6mmflatheadscrewsshippedwiththeswitch.
Figure 3-6 Attaching the Rackmount Brackets
3. Withthemountingbracketsat tached,positiontheswitchbetweentheverticalframe
membersofthe
19‐inchrackasshowninFigure 3‐7.Thenfastentheswitchsecurely
totheframeusingfourmountingscrews(usersupplied).
Figure 3-7 Fastening the Switch to the Rack
Warning: Before rack-mounting the device, ensure that the rack can support it without
compromising stability. Otherwise, personal injury and/or equipment damage may result.
Advertencia: Antes de montar el equipo en el rack, asegurarse que el rack puede
soportar su peso sin comprometer su propia estabilidad, de otra forma, daño personal o
del equipo puede ocurrir.
Warnhinweis: Überzeugen Sie sich vor dem Einbau des Gerätes in das Rack von dessen
Stabilität, ansonsten könnten Personenschäden oder Schäden am Gerät die Folge sein.
1 Rackmount brackets 2 M3 x 6 mm flathead screws
1 Rails of 19-inch rack 2 Mounting screws (supplied by user)
Á À Á À
Console
121110987654321
1
2
13
14
11
12
23
24
C2G170-24
CPU
UP
RPS
MGR
DOWN
242322212019181716151413
Console
121110987654321
1
2
13
14
11
12
23
24
C2G170-24
CPU
UP
RPS
MGR
DOWN
242322212019181716151413
À
Á
Á
À
