DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 174
Confidential

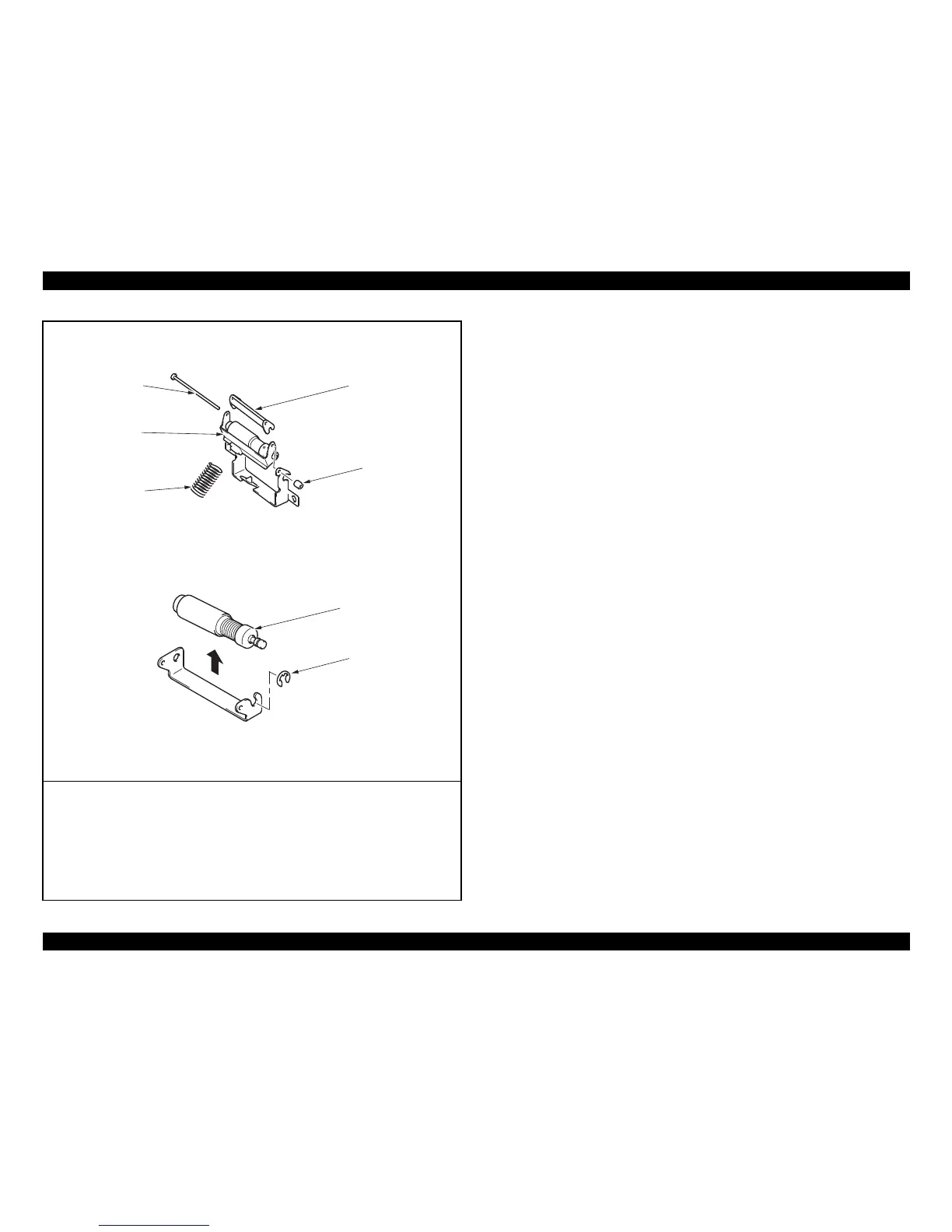

3. Take off the rubber stopper [3], shaft [4], spring [5], and guide plate [6] to remove the
Separation Roller fixing bracket assy [7].
4. Snap off the E-ring [8] and the Separation Roller [9].
4038F2C003DB
4037F2C509DA
[6]
[3]
[4]
[7]
[5]
[9]
[8]
