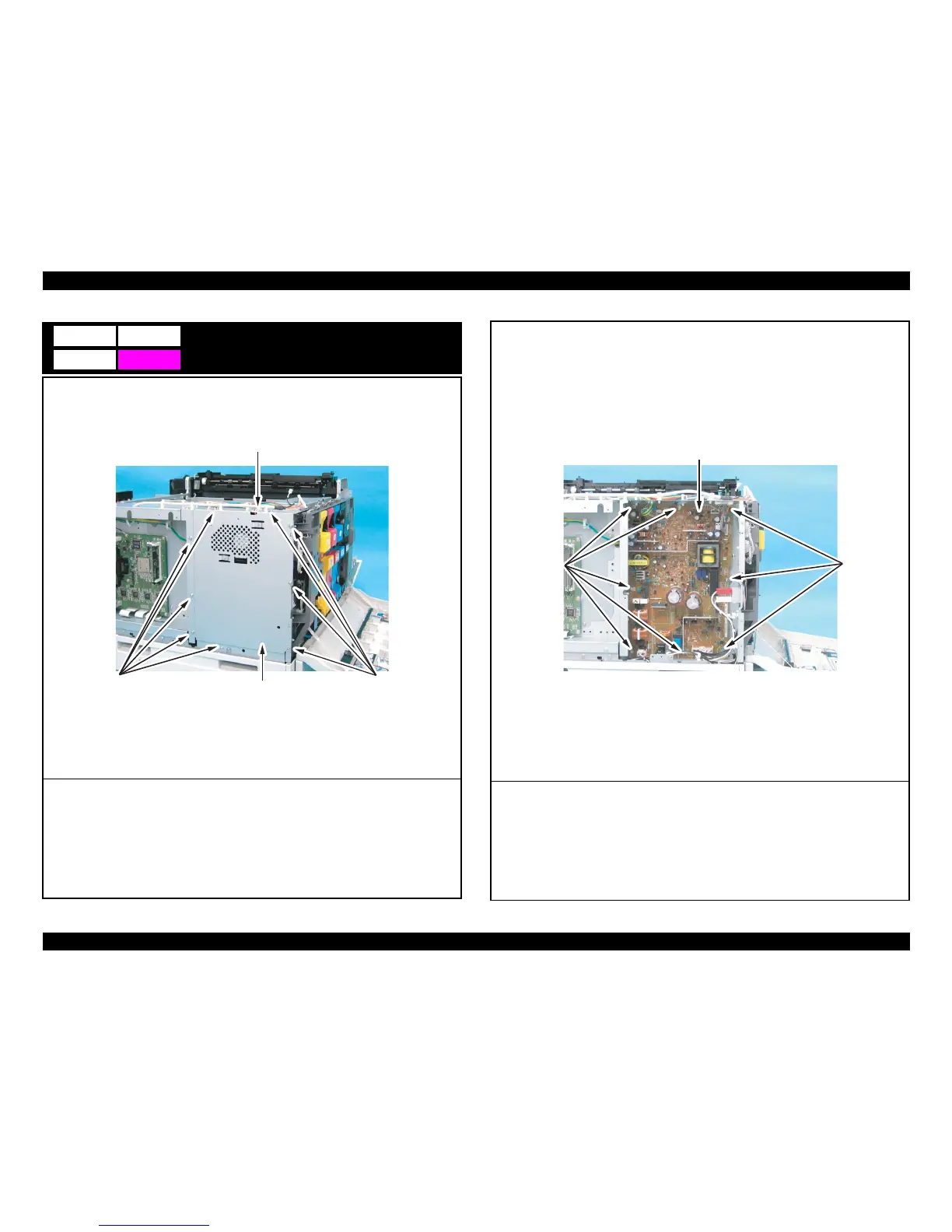

DC Power Supply (PU1)
1. Remove nine Screws [1] and the Connector [2], then remove the protective sheet of the DC
Power Supply [3].
D5
[2]
[1]
[1]
[3]
2. Remove all the Connectors on the DC Power Supply.
3. Remove eight Screws [4], and remove the DC Power Supply [5].
[5]
[4]
[4]
