EPSON AcuLaser C9200N Revision D
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 294
Confidential

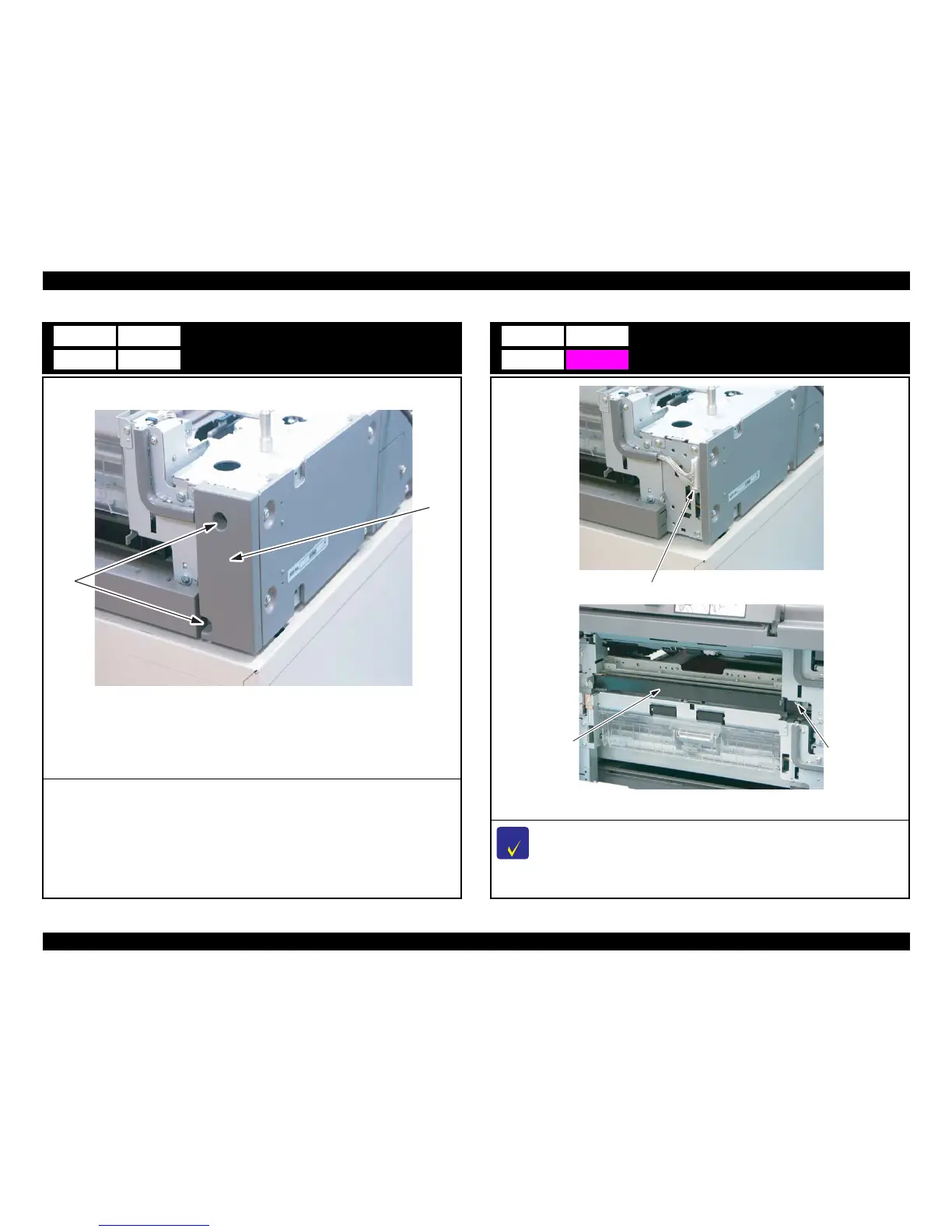

Right Rear Cover
1. Remove two Screws [1] and remove the Right Rear Cover [2].
D3
4039F2C050DA
[1]
[2]
Feed Roller (Optional Paper Cassette)
C H E C K
P O I N T
The separation roller should be replaced, whenever the pickup roller is replaced.
1. Disconnect the Connector [1].
2. Remove the Screw [2] and remove the Reinforcement plate [3].
D4
4067F2C501DA
4039F2C051DA
[1]
[3]
[2]
