EPSON AcuLaser C9200N Revision D
OPERATING PRINCIPLES Operating Principle of Main Unit Mechanism 36
Confidential

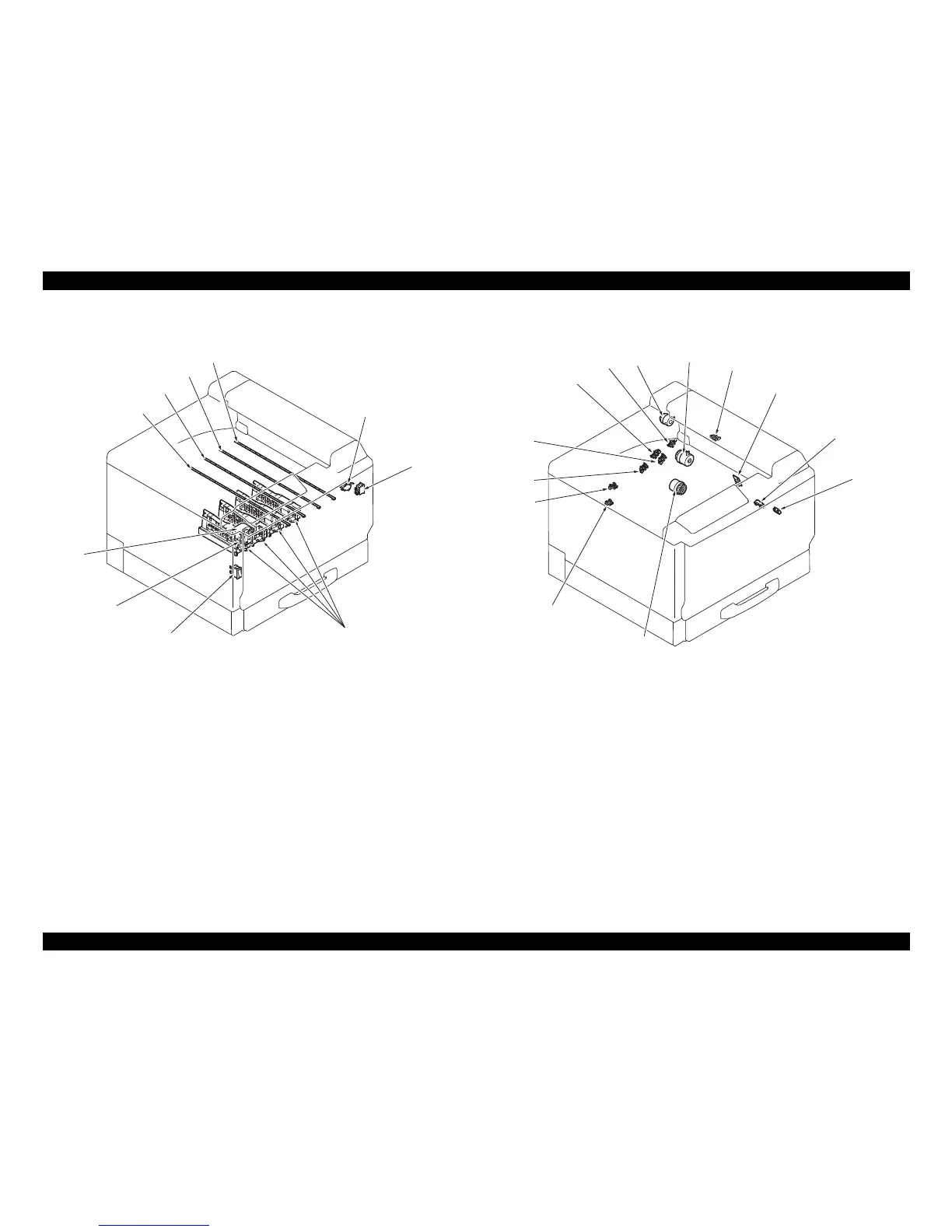

[1] Right Door Switch (S5) [6] Front Door Switch/2 (S4)
[2] Primary Interlock Switch (S2) [7] Main Erase Lamp/Y (LA4)
[3] PH Unit [8] Main Erase Lamp/M (LA3)
[4] Main Power Switch (S1) [9] Main Erase Lamp/C (LA2)
[5] Front Door Switch/1 (S3) [10] Main Erase Lamp/K (LA1)
4039F5C503DA
[3]
[1]
[2]
[4]
[5]
[6]
[10]
[9]
[8]
[7]
[1] Developing Clutch/K (CL4) [8] Waste Toner Full Sensor (PC8)
[2] Exit Sensor (PC2) [9] Color PC Drive Main Sensor (PC17)
[3] Temperature/Humidity Sensor (SE3) [10] Color PC Drive Sub Sensor (PC18)
[4] Registration Roller Sensor (PC1) [11] Black PC Drive Main Sensor (PC15)
[5] OHP Sensor (PC4) [12] Black PC Drive Sub Sensor (PC16)
[6] Registration Roller Clutch (CL1) [13] 1st Image Transfer Pressure/Retraction
Clutch (CL3)
[7] 1st Image Transfer Pressure/Retraction
Position Sensor (PC6)
4039F5C504DA
[5]
[3]
[1]
[2]
[4]
[6]
[8]
[10]
[9]
[7]
[12]
[13]
[11]
