Epson Aculaser C9200N User Manual

Confidential

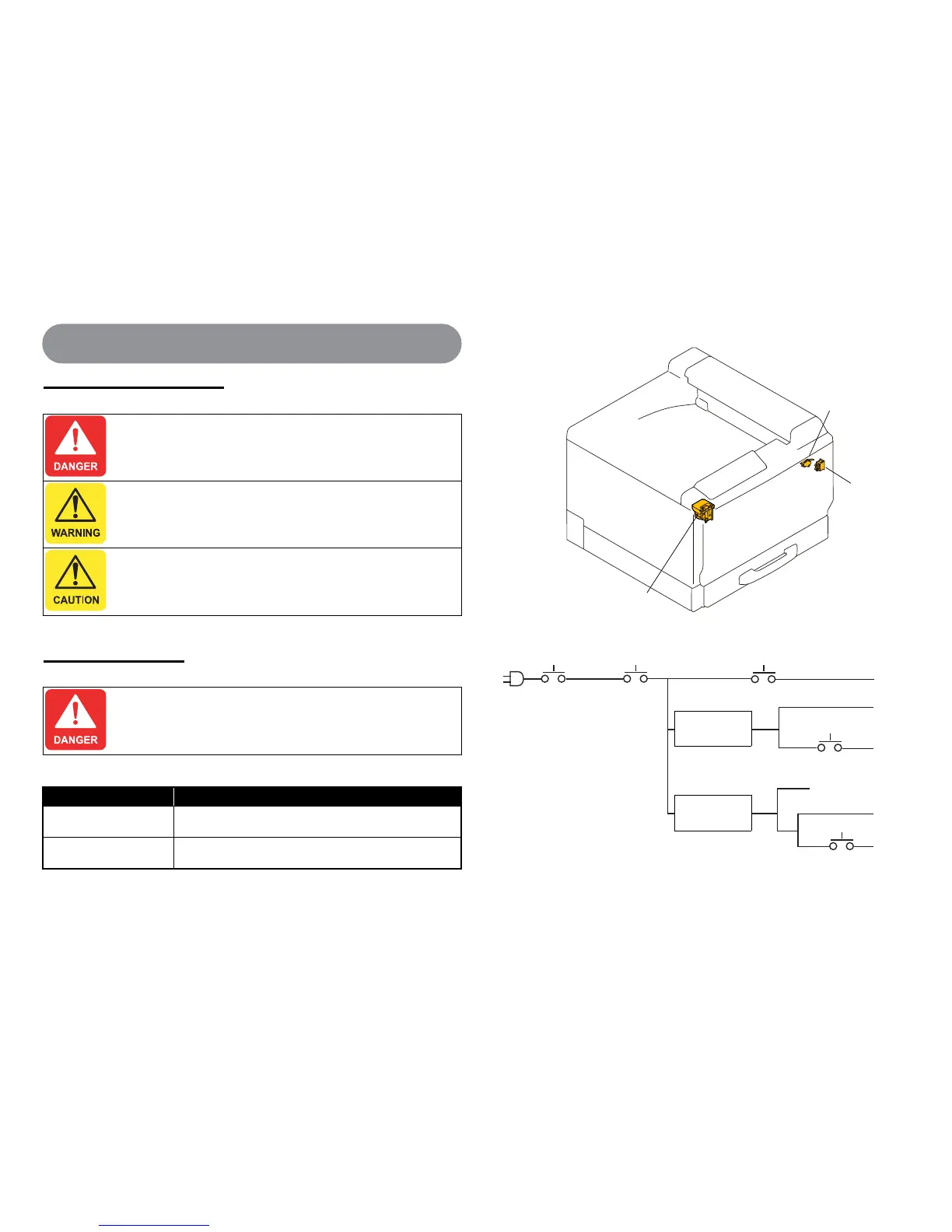

Safety-related Symbols
Safety Equipment
 List of Safety Equipment
 Location of Safety Equipment
 Safety System Wiring Schematic
Indicates an operating or maintenance procedure, practice or
condition that, if not strictly observed, would result in injury or loss
of life.
Indicates an operating or maintenance procedure, practice or
condition that, if not strictly observed, could result in injury or loss
of life.
Indicates an operating or maintenance procedure, practice or
condition that, if not strictly observed, could result in personal
injury or may cause damage to, or destruction of equipment.
Never deactivate the safety equipment installed on the product for
any reason whatsoever. (e.g. Making a connection circuit bypasses
the safety equipment.)
Name Function/Purpose
Interlock switch (Front Door
SW/Right Door SW)
Shuts off 24 V DC power line when the Front Door or Right Door
is opened.
Interlock switch (Front Door
SW)
Shuts off 5V/3.3V DC power line when the Front Door is opened.
Safety
Right Door SW
Front Door SW
Front Door SW
4039T2C133AA
Main Power Switch Sleep Relay Heater Relay
1
2
3
Front Door SW
/Right Door SW
Main DC Power
Supply
Sub DC Power
Supply
24V
3.3V
5V
Power supply to board
Front Door SW
4
5

Epson Aculaser C9200N Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 2400 DPI
Time to first page (black, normal)	8.1 s
Time to first page (color, normal)	11.4 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Maximum internal memory	768 MB
Sound power level (standby)	40 dB
Sound pressure level (printing)	52 dB
Total input capacity	350 sheets
Total output capacity	500 sheets
Maximum input capacity	1850 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	C5, C6, DL
Maximum print size	297 x 420 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Quantity per pack	1 pc(s)
Power requirements	220-240 V: 50 Hz/60 Hz, 8.0A
Standard media sizes	DIN A3
Power consumption (active)	576 W
Compatible operating systems	- Microsoft Windows 2000 / XP / Server 2003 / Vista / XP x64 Edition / Server 2003 x64 Edition / Vista x64 Edition - Mac OS 10.3.9 +
Display	LCD
Certification	EMC Directive 2004/108/EC, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST-R (CISPR 22), EN60950-1, EN60825-1 GOST-R (IEC60950-1, IEC60825-1)
Country of origin	China
Maximum duty cycle	150000 pages per month
Power consumption (off)	0 W
Power consumption (standby)	146 W
Power consumption (PowerSave)	11 W
Pallet width	800 mm
Pallet height	780 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Package depth	1060 mm
Package width	700 mm
Package height	630 mm
Package weight	72904 g

Weight and Dimensions

Dimensions (WxDxH)	823 x 608 x 477 mm
