EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 105 Revision A
3.3.10.1 Speaker 16W
DISASSEMBLY PROCEDURE
EB-FH52/972/982W/992F/118, PL 119W
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
MA Board Assy (p100)

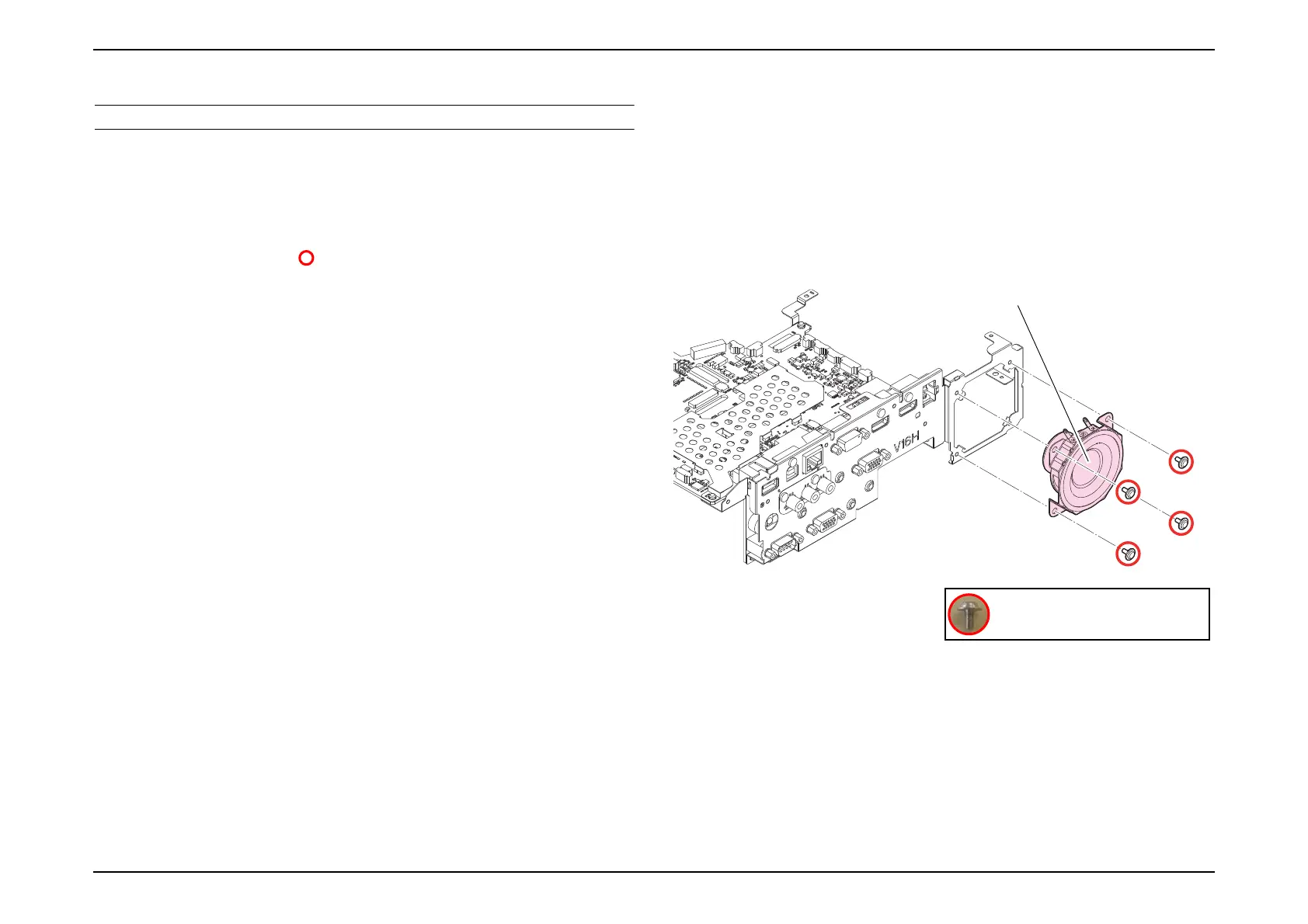

2. Remove the four screws ( ) and remove the "Speaker 16W".
Speaker 16W
C.C.SCREW,3X6,F/ZN-3C
