Epson EB-W06 Service Manual

EB-E01 series Appendix INTERNAL USE ONLY
SEIKO EPSON 184 Revision A
4.1.2 Confirmation method using IPS tool
Even when a projector can't be projected, the error name can be checked by
connecting PC or using USB memory.
4.1.2.1 Preparation
1. Get the latest edition of the following tool from Tech Exchange.
(*1) The latest edition can be downloaded from TI No.AP14-0916-01 [1103].
The operating method details of IPS tool can be confirmed by TI No. “The
Operation Guide to use IPS-Tool”.
(*2) The latest edition can be downloaded from Tech Exchange No. DR09-
0602-01. Please download the latest edition.
4.1.2.2 Confirmation method which connects PC with projector
It's connected by a USB cable (Type-A-Type-B) and checked using IPS tool.
4.1.2.2.1 Confirmation method
1. Disconnect the power cord from the projector and check that all of the
indicators on the projector are off.
2. Connect the power cord to the projector while pressing the [Enter] button
on the Control Panel or remote controller. When the LED panel on the
projector flashes four times and then lights up, release the [Enter] button.

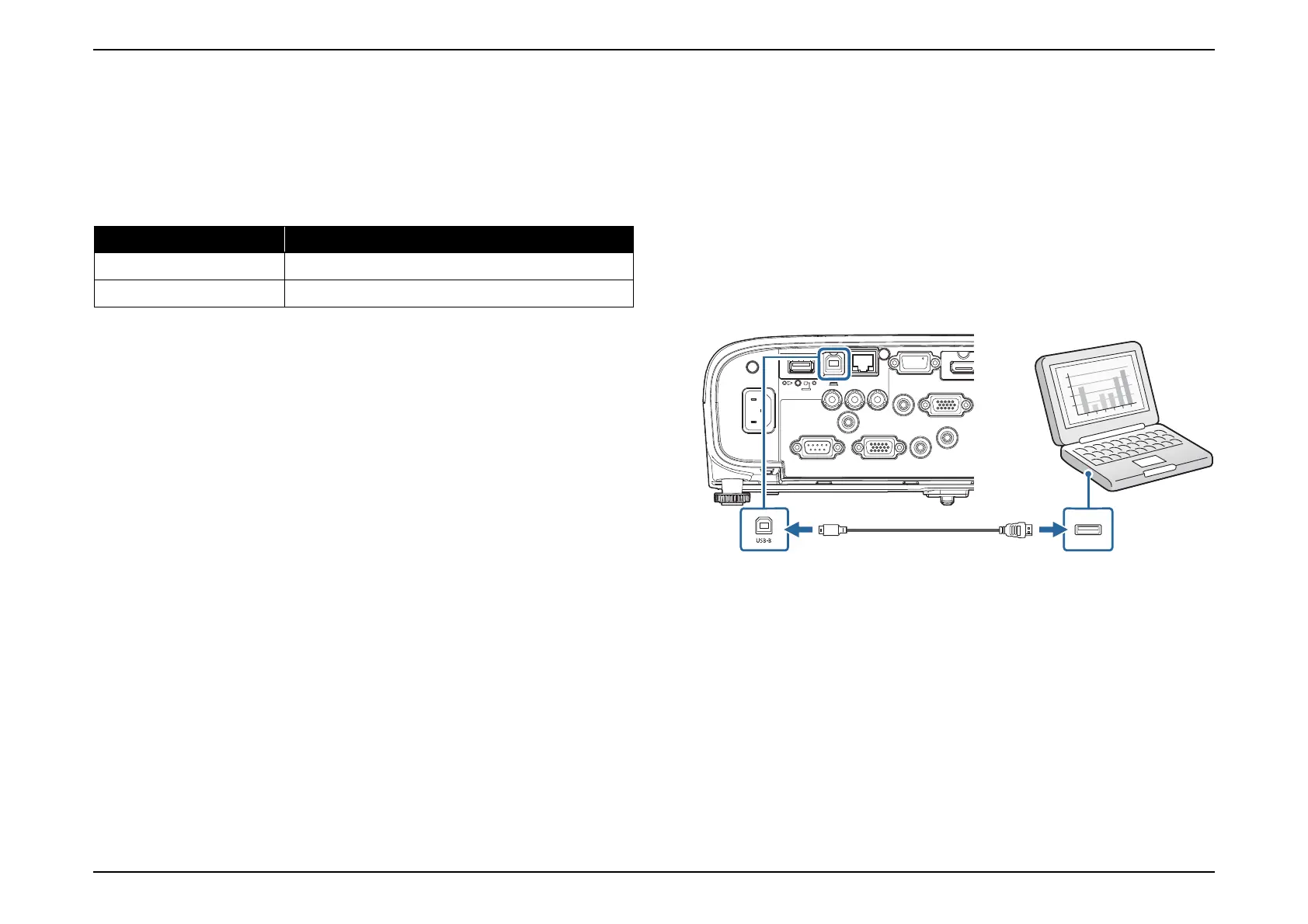

3. Connect the projector to the PC using USB cable.
4. Press the [Power] button on the projector or the remote controller.
5. Start IPS tool.
Tool Name Remark
IPS tool*1
Please install in PC beforehand.
V com Driver*2
Please install in PC beforehand.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
