Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 164 Revision A
3.8.3.1 Adjustment method

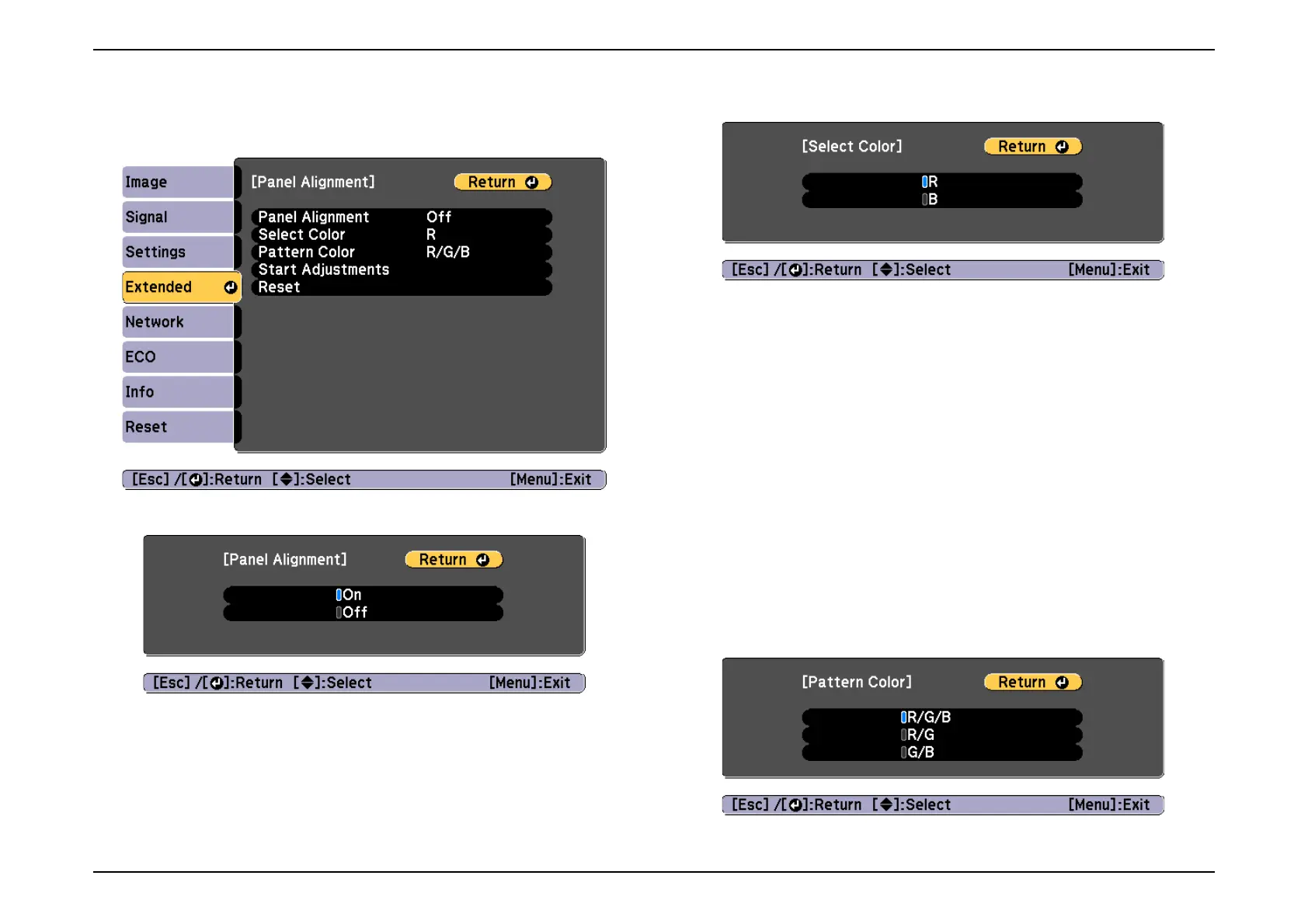

1. Enable [LCD Alignment].
1-1. Select [LCD Alignment] and then press the [Enter] button.
1-2. Select [ON] and then press the [Enter] button.
1-3. Press the [Esc] button to return to the previous screen.
2. Select the color you want to adjust.
2-1. Select [Adjustment Color] and then press the [Enter] button.
2-2. Select either [R] (Red) or [B] (Blue) and then press the [Enter]
button.
2-3. Press the [Esc] button to return to the previous screen.
3. In [Pattern Color], select the color of the grid displayed at the time of
adjustment.
3-1. Select [Pattern Color] and then press the [Enter] button.
3-2. Select a combination of R (Red), G (Green) and B (Blue) for the
grid color.
[R/G/B]: Three-color display with R, G, B. The color of the actual
grid is white.
[R/G]: Can be selected when [R] is selected as the [Adjustment
Color]. Two-color display with R, G. The color of the
actual grid is yellow.
[G/B]: Can be selected when [B] is selected as the [Adjustment
Color]. Two-color display with G, B. The color of the
actual grid is cyan.
3-3. Press the [Esc] button to return to the previous screen.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
