Epson EB-W06 Service Manual

EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 53 Revision A

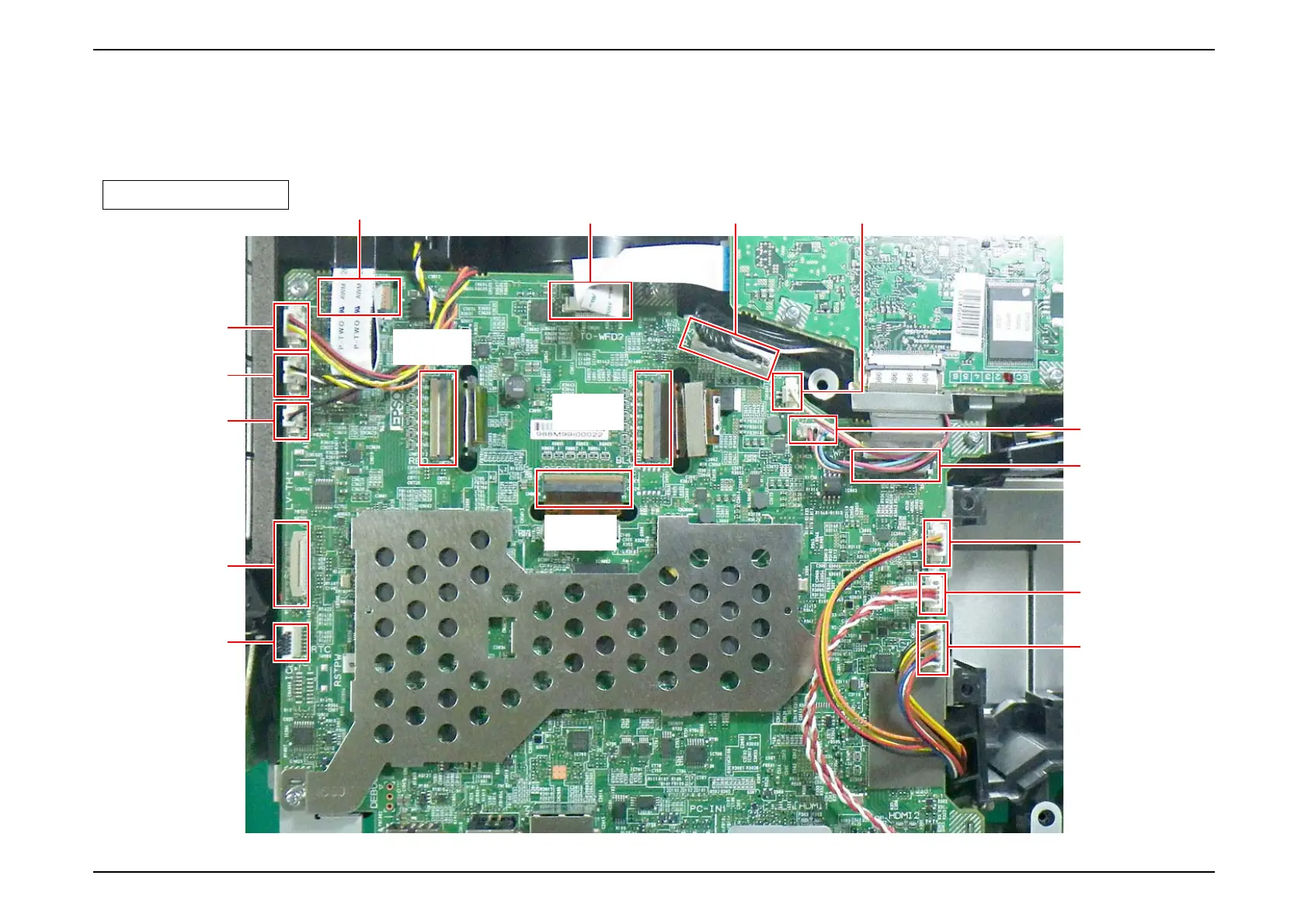

2.5.5 Cable connection on the MA Board and error symptoms
This section describes the projector’s status when disconnection occurs somewhere between the parts/units and the MA Board. If any problem has occurred, refer to
the following table and check the doubted connectors are securely connected. If there is a disconnection or a loose connection, connect it correctly.
CN1405
RTC Board
CN501
WFD Board 2
CN3000
PS Ballast Assy
CN8900
B L/V
CN8800
G L/V
CN8700
R L/V
CN1603
EX Fan
CN1604
Lamp Fan
CN701 (700/702)
Speaker
CN2200
Auto Iris Assy
CN1400
SW Board
CN1600
AIR-TH
CN1403
F-IR
CN1602
LV-FAN
CN500
WFD Board 1
CN1601
LMP-TH
Circuit Board Image
CN1800
W-LAN

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
