Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 131 Revision A

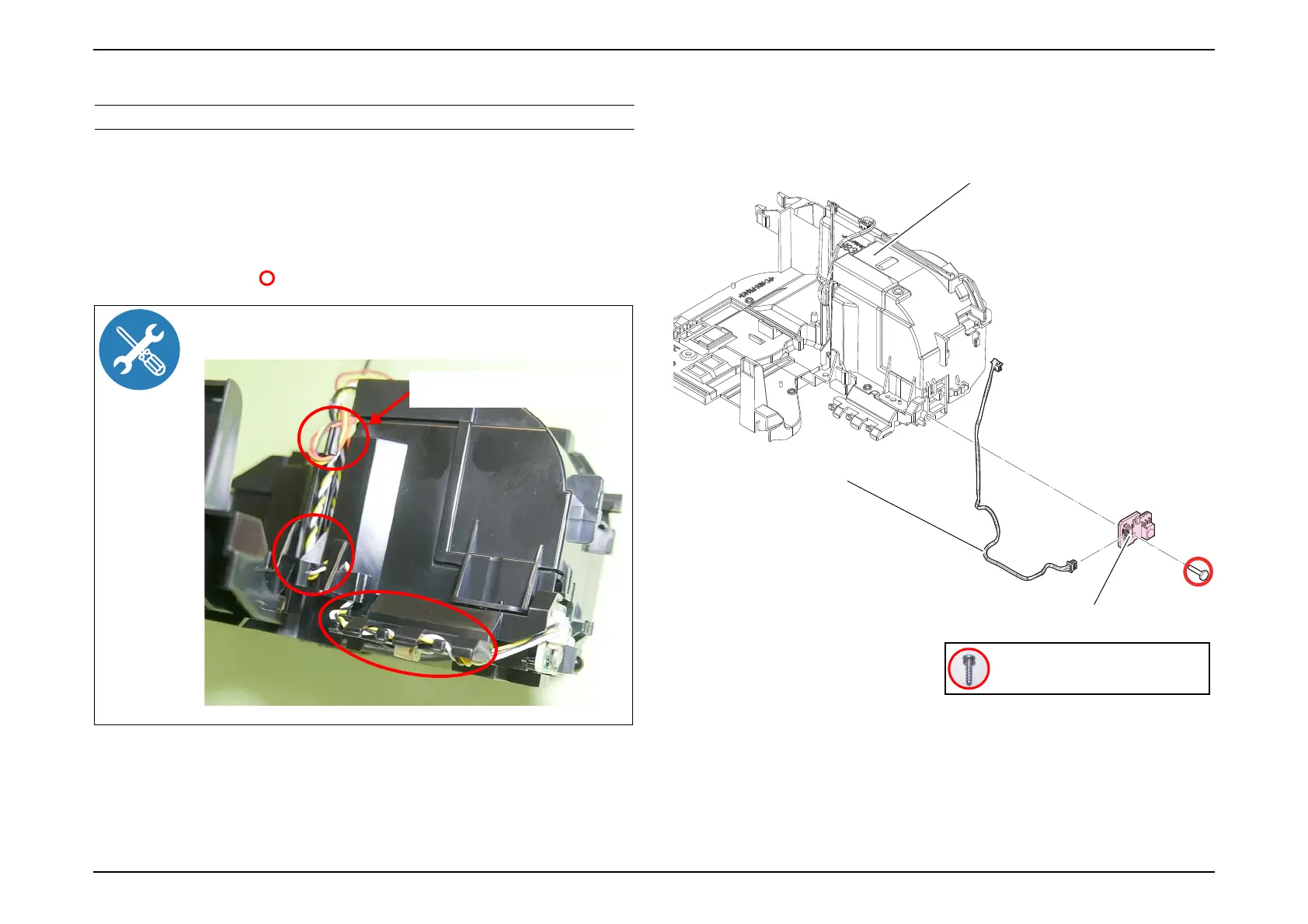

3.3.16.1 IR Board
DISASSEMBLY PROCEDURE
 EB-E01/X06/W06/FH06/E10/X51/W51/W52/E20/X49/W49/118,
PL 119W, EH-TW740/TW750
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
INT Duct (Assy) (p129)
2. Remove the screw ( ) and remove the "IR Board" and the "RCF Cable".
Route the "RCF Cable" connected to the "IR Board" on
the INT Duct as shown in the figure below.
After routing the cable, wind the
fan cable.
INT Duct (Assy)
IR Board
RCF Cable
C.B.P-TITE SCREW,2.5X10,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
