Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 135 Revision A

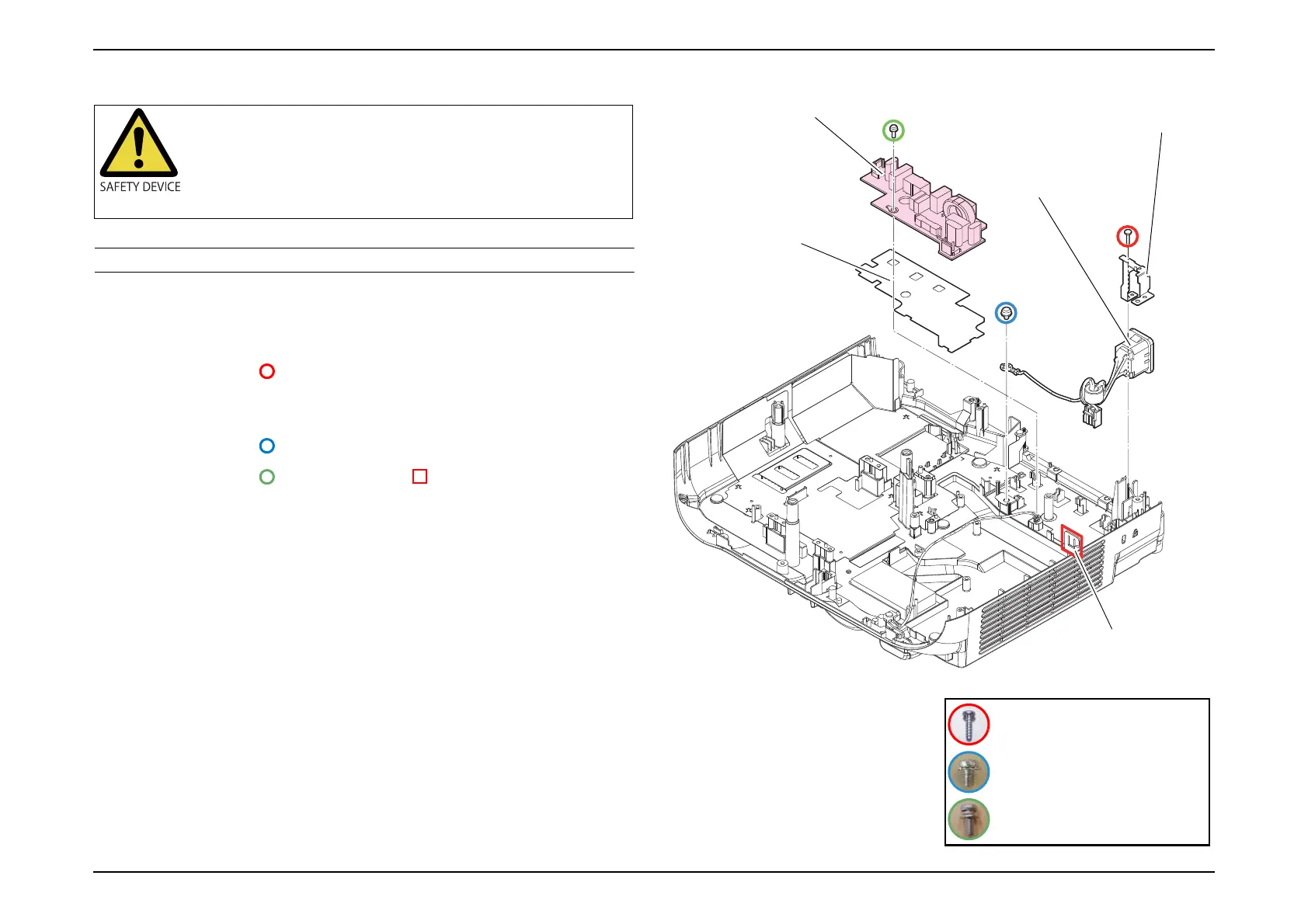

3.3.17 Filter Boards
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
PS Ballast Assy (p122)
2. Remove the screw ( ) and remove the "Inlet Fasten Plate".
(This procedure is not applicable to EB-E01/X06/W06/E10/X51/W51/
W52)
3. Remove the screw ( ) and remove the "Inlet Cable".
4. Remove the screw ( ), release the hook ( ), and remove the "Filter
Board" and the "FB Insulation Sheet".
This part is designated as the Safety Device. When
removing/replacing the part for repair, be sure to refer to
3.5.1 Safety Check after Servicing (p142). After serving,
follow the procedures specified in the Safety Check after
Serving.
Inlet Fasten Plate
Inlet Cable
Filter Board
FB Insulation Sheet
Hook
C.P.(S-P1)SCREW,3X8.F/ZN-3C
C.P.(O)SCREW,4X6,F/NI
C.B.P-TITE SCREW,2.5X10,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
