Epson EB-W06 Service Manual

EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 51 Revision A

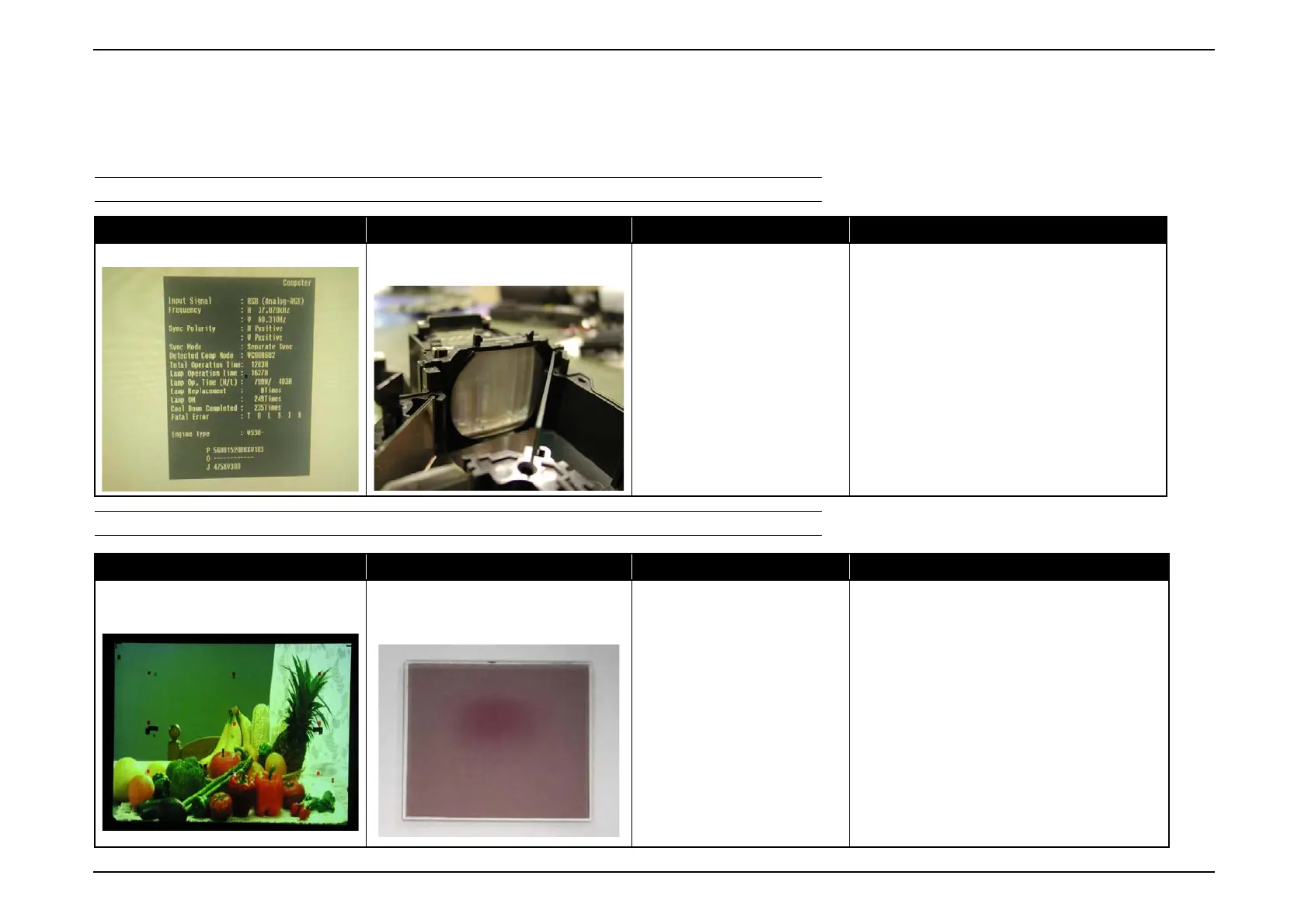

2.5.4 Troubleshooting on image abnormality
The following tables present this projector’s possible troubles in image quality, and provides probable causes and troubleshooting procedures based on the observed
phenomena.
ILLUMINATION REDUCTION
COLOR NON-UNIFORMITY
Phenomenon Cause Remedy Reference
The projected image became darker.
Some optical parts might mist for some
reasons.
Clean the parts with a cotton swab or
the like moistened with ethanol.
Optical Engine Repair Service Manual
Phenomenon Cause Remedy Reference
Color non-uniformity can be seen partially in
the projected image.
 Some optical parts may become
deteriorated.
 Some optical parts may be broken.
Replace the deteriorated or broken
parts with new ones.
Optical Engine Repair Service Manual

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
