Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 137 Revision A
3.4 Shortest removal procedures of identified
failed parts
If you can identify a failed part, the following parts can be removed in shortest
ways different from the ordinal disassembling procedures.

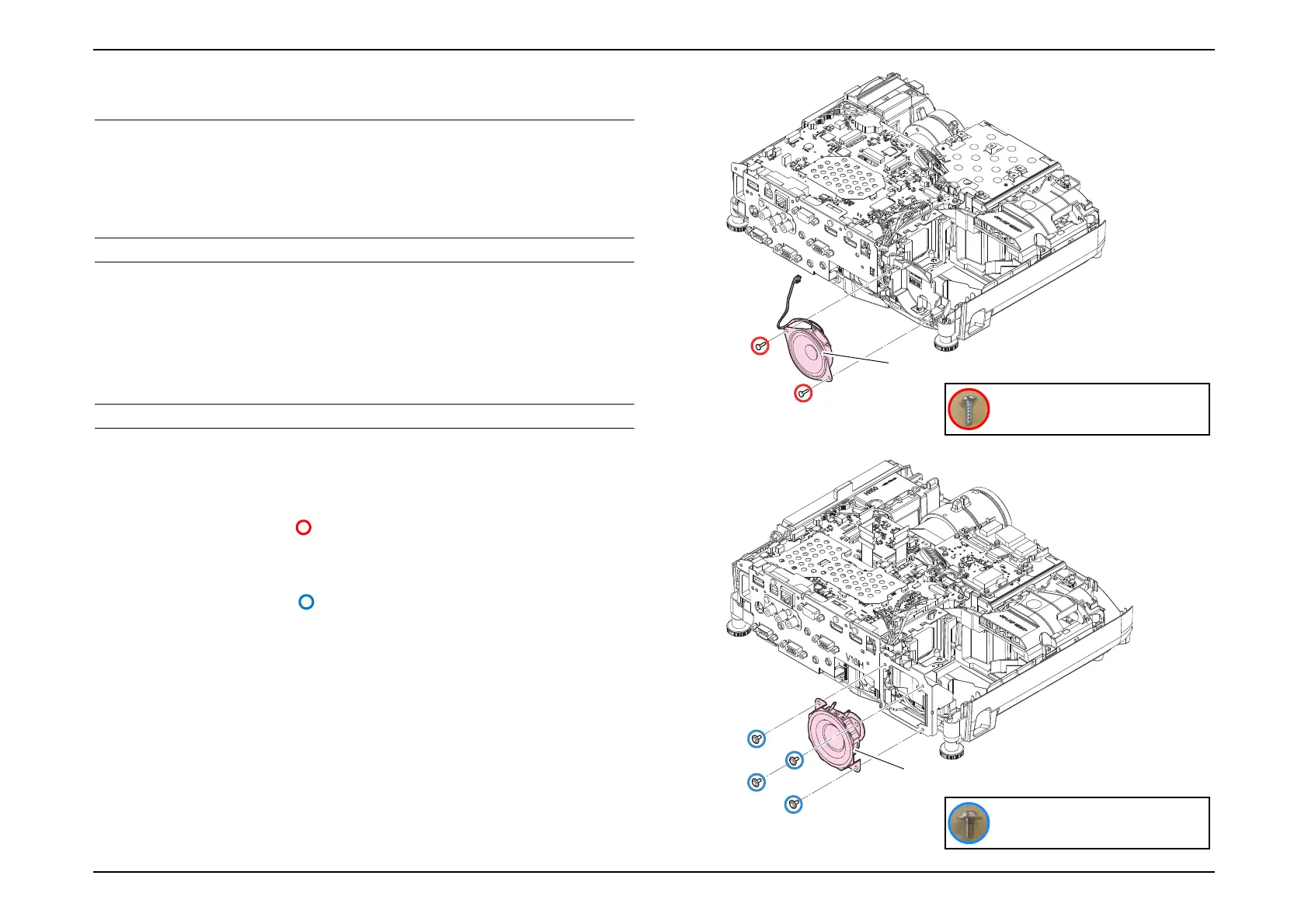

3.4.1 Speaker
PART NAME
 Speaker 5W
(EB-E01/X06/W06/FH06/E10/X51/W51/W52/E20/X49/W49, EH-
TW740/TW750)
 Speaker 16W
(EB-FH52/972/982W/992F/118, PL 119W)
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the two screws ( ) and remove the "Speaker 5W".
(EB-E01/X06/W06/FH06/E10/X51/W51/W52/E20/X49/W49, EH-
TW740/TW750)
3. Remove the four screws ( ) and remove the "Speaker 16W".
(EB-FH52/972/982W/992F/118, PL 119W)
Speaker 5W
Speaker 16W
C.C.SCREW,3X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X8,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
