3.3.13.1 Lamp Fan/Speaker 5W
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Lamp Fan (Assy) (p120)
2. Remove the "Lamp Fan" from the "Lamp Connector Holder".
3. Remove the "Lamp Fan Cushion A" and the two "Lamp Fan Cushion B"
from the "Lamp Fan".
 EB-E01/X06/W06/FH06/E10/X51/W51/E20/X49/W49/W52,
EH-TW740/TW750
4. Remove the two screws ( ) and remove the "Speaker 5W".
 EB-FH06/E20/X49/W49, EH-TW740/TW750
5. Remove the "GND Cable".

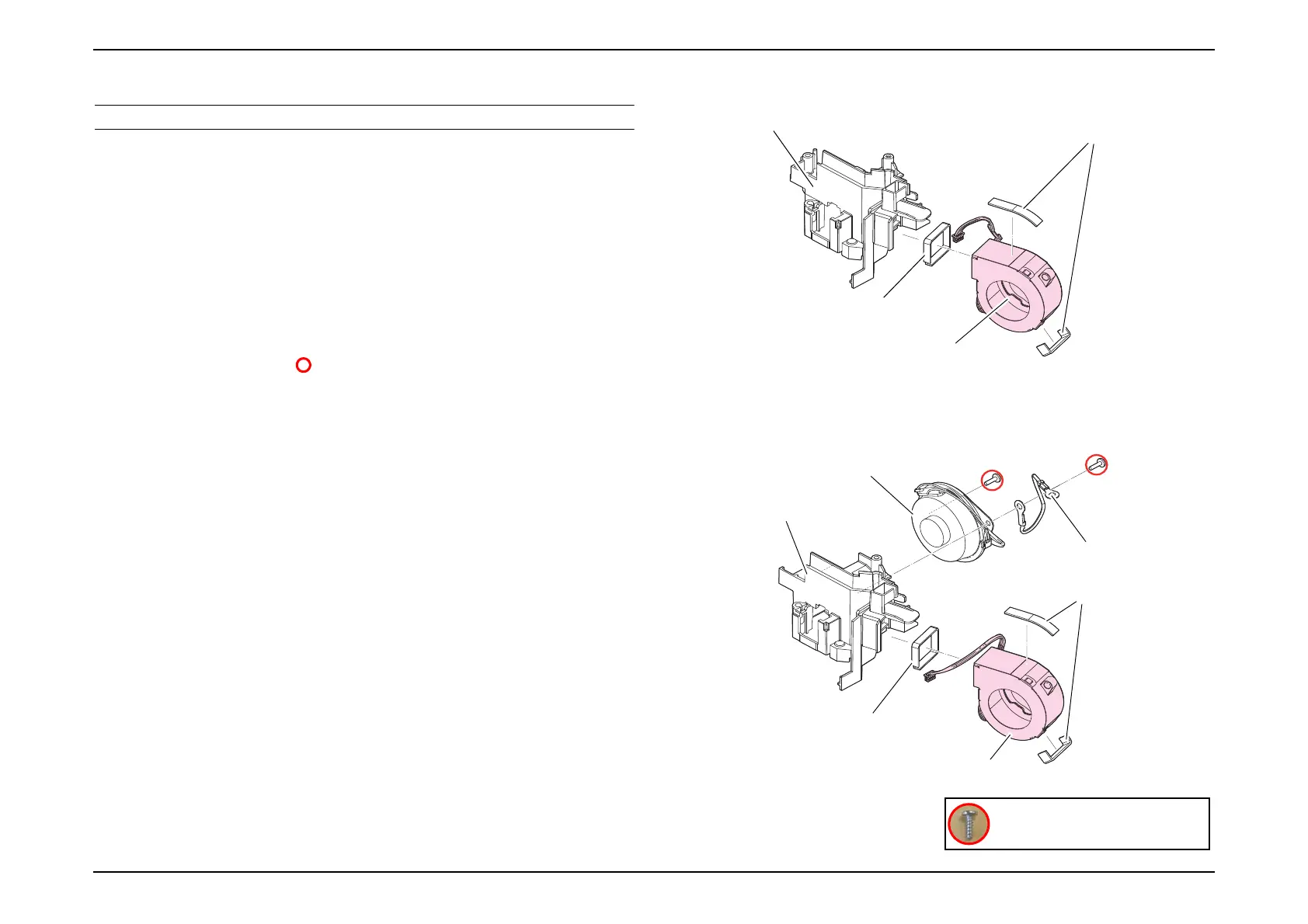

Lamp Connector Holder
Lamp Fan Cushion B
Lamp Fan Cushion A
Lamp Fan
Lamp Connector Holder
Lamp Fan Cushion B
Lamp Fan Cushion A
Lamp Fan
Speaker 5W
GND Cable
 EB-E01/X06/W06/FH06/E10/X51/W51/E20/X49/W49/W52,
EH-TW740/TW750
 EB-FH52/972/982W/992F/118, PL 119W
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
