Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 106 Revision A
3.3.10.2 IF Board
DISASSEMBLY PROCEDURE
 EB-FH06
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
MA Board Assy (p100)

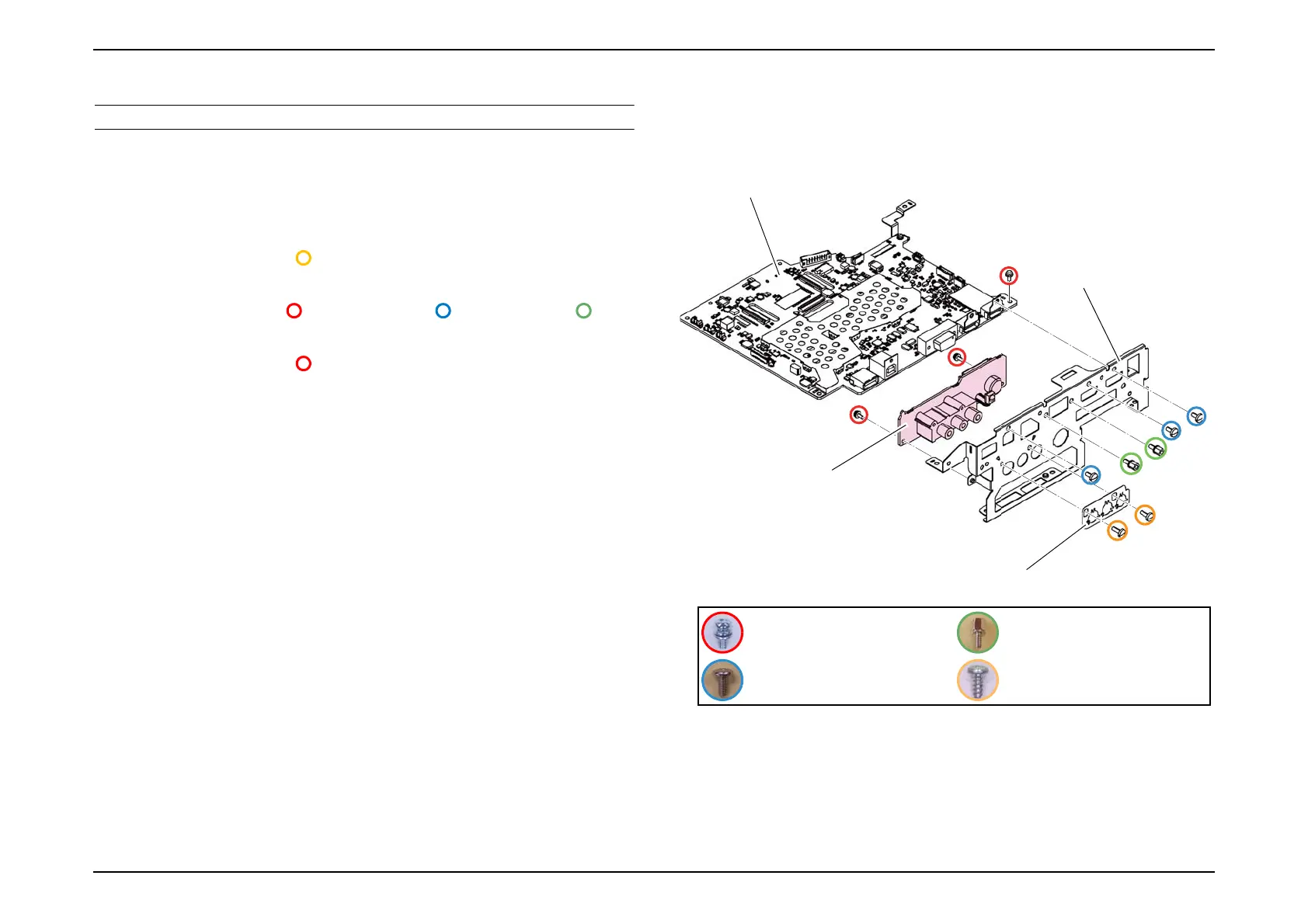

2. Remove the two screws ( ) and remove the "Conduction Plate 3RCA"
from the "MA Frame".
3. Remove the one screw ( ), the three screws ( ), the two screws ( ), and
remove the "MA Frame" from the "MA Board (Assy)".
4. Remove the two screws ( ) and remove the "IF Board" from the "MA
Board (Assy)".
MA Board (Assy)
IF Board
MA Frame
Conduction Plate 3RCA
C.B.SCREW,3X6,F/NI
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C 1/4-40X1/4,H.H.,F/NI,O SCREW
C.B.P-TITE SCREW,3X8,F/ZN-3C
