Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 161 Revision A
3.7 G Sensor Calibration
3.7.1 Overview
The G Sensor is mounted on the MA Board to detect the inclination of the
projector. To compensate the variation of the accuracy of the G Sensor
detection among the products, perform this calibration after replacing and/or
reassembling any parts which require the replacement of the MA board at the
same time.
(Not compatible with EB-E01/E10/E20, EH-TW740)
3.7.2 Preparation
1. Be sure that all feet of the projector for which you perform this
calibration are completely retracted.
2. Place the projector on an even and stable place such as on the top of a
table.
3.7.3 Procedure
1. Connect the power cable and then press the [Power] button.
2. Check if the Power LED flashes blue, then lights blue.

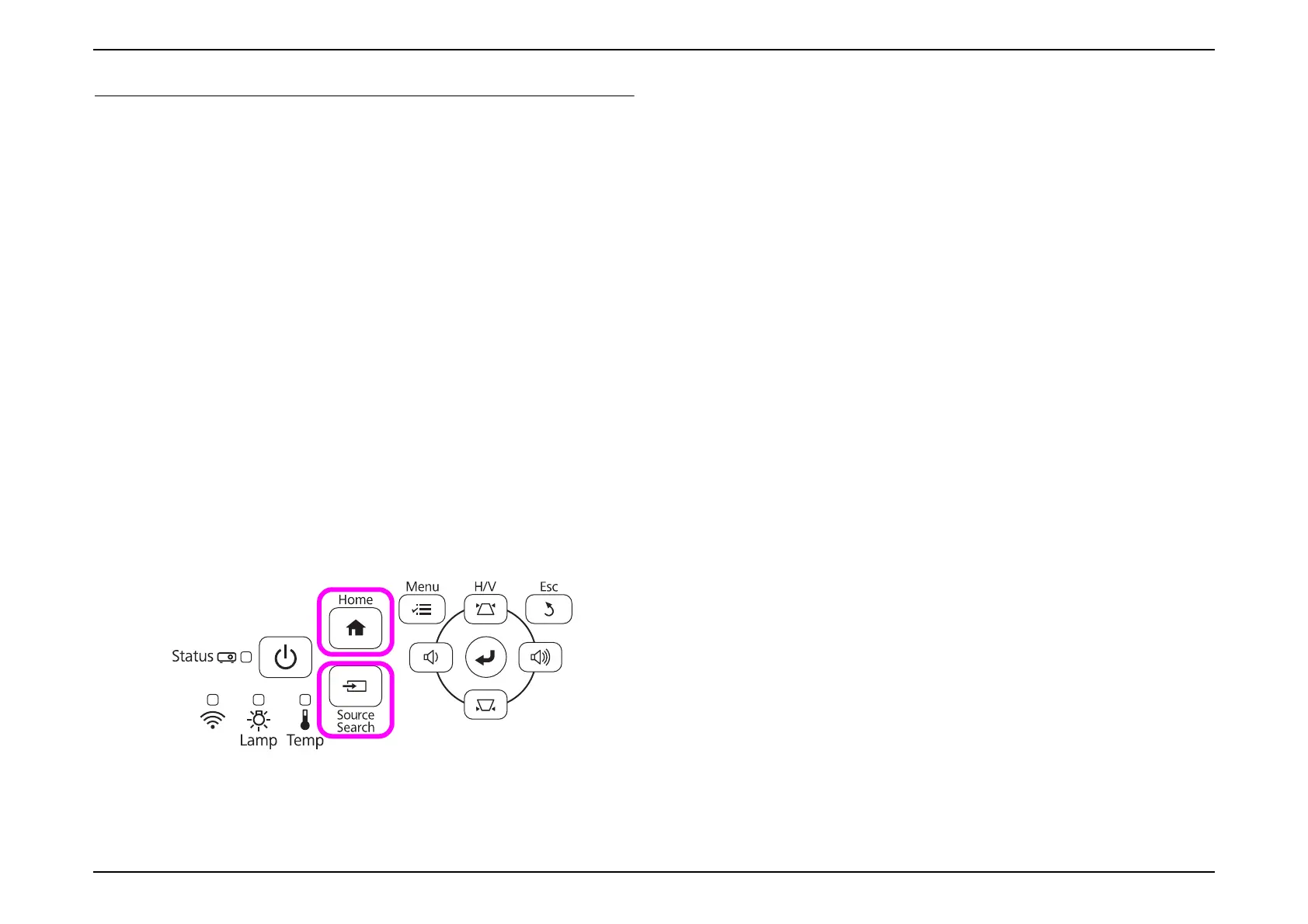

3. After the LED lights up, long-press the [Home] button and the [Source
Search] button together for five seconds or more.
4. When the buzzer sounds, calibration is completed.
5. Confirm that the keystone function does not work when all feet are
retracted. (menu value: 0)

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
