Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 118 Revision A

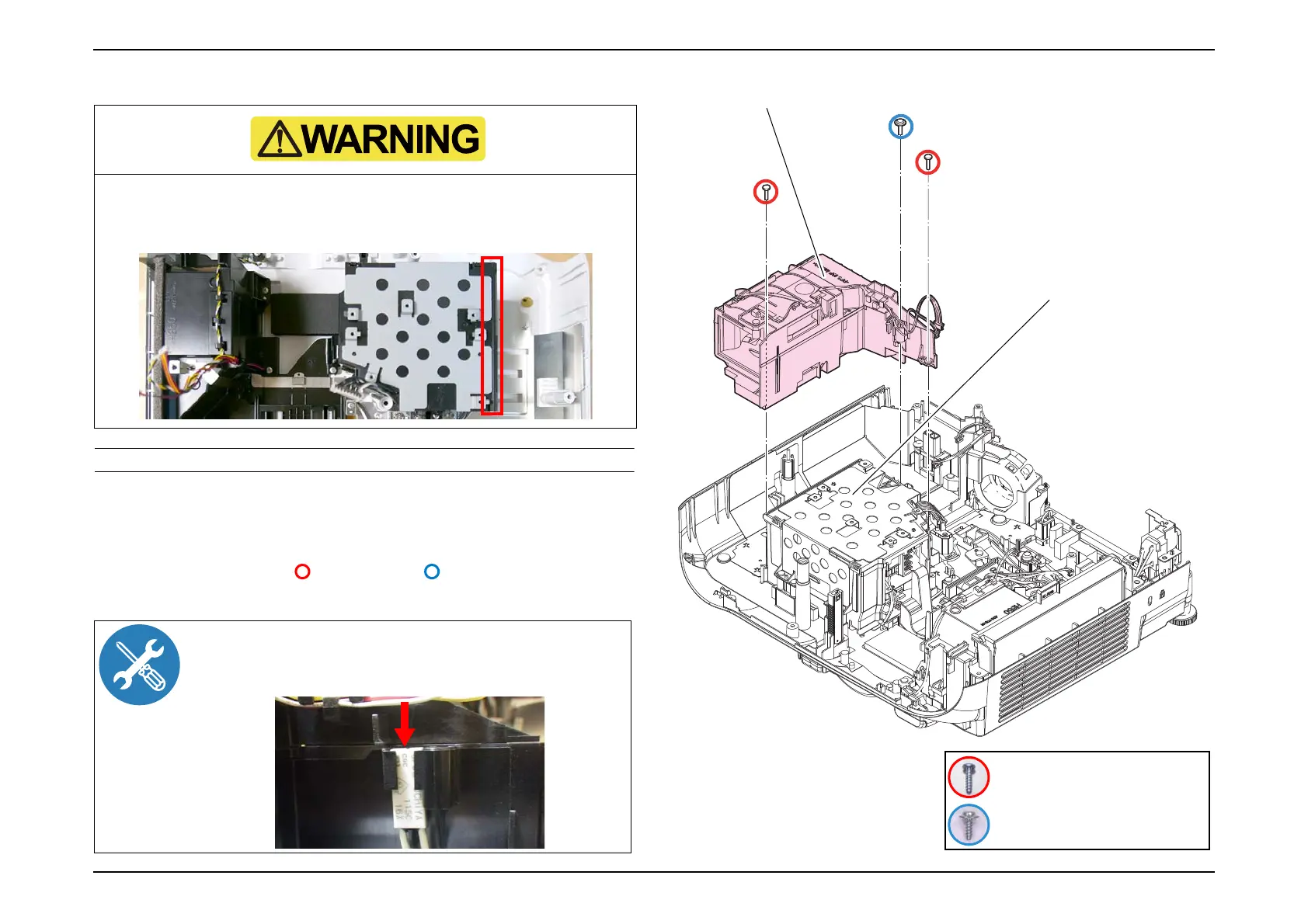

3.3.12 EX Duct (Assy)
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove the two screws ( ) and the screw ( ), remove the Thermostat of
the "Cable PS-FB" and then remove the "EX Duct (Assy)".
At the area shown below, an electric shock may result if you operate
carelessly because there is electric charge remaining in the Power
Supply. 3.3.14 PS Ballast Assy (p122)
Pass the cable through the "EX Duct (Assy)" and set the
thermostat of the "Cable PS-FB" such that the surface
with the letters is visible from top to bottom.
EX Duct (Assy)
PS Ballast Assy
C.C.P-TITE SCREW,3X10,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
