Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 120 Revision A

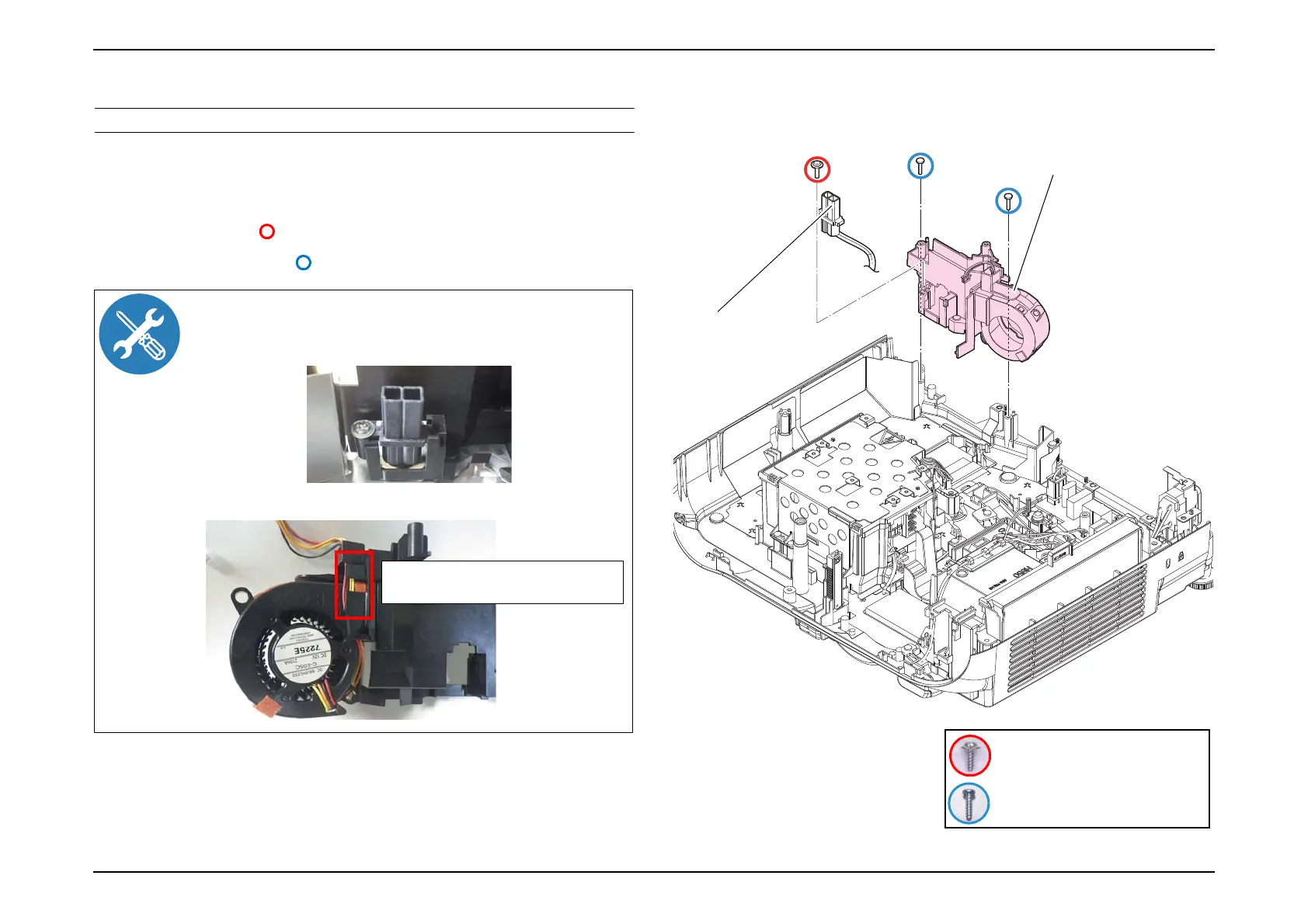

3.3.13 Lamp Fan (Assy)
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove the screw ( ), and pull the "Lamp Connector" out.
3. Remove the two screws ( ), and remove the “Lamp Fan (Assy)”.
Pass the Lamp Connector through the "Lamp Connector
Holder," and keep it pulled out until attaching. After
attaching the holder, fix it with a screw.
Route the "Lamp Fan" cable as shown in the figure below.
The cable should not be caught in the
exhaust duct
Lamp Connector
Lamp Fan (Assy)
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
C.C.P-TITE SCREW,3X10,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
