EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 116 Revision A

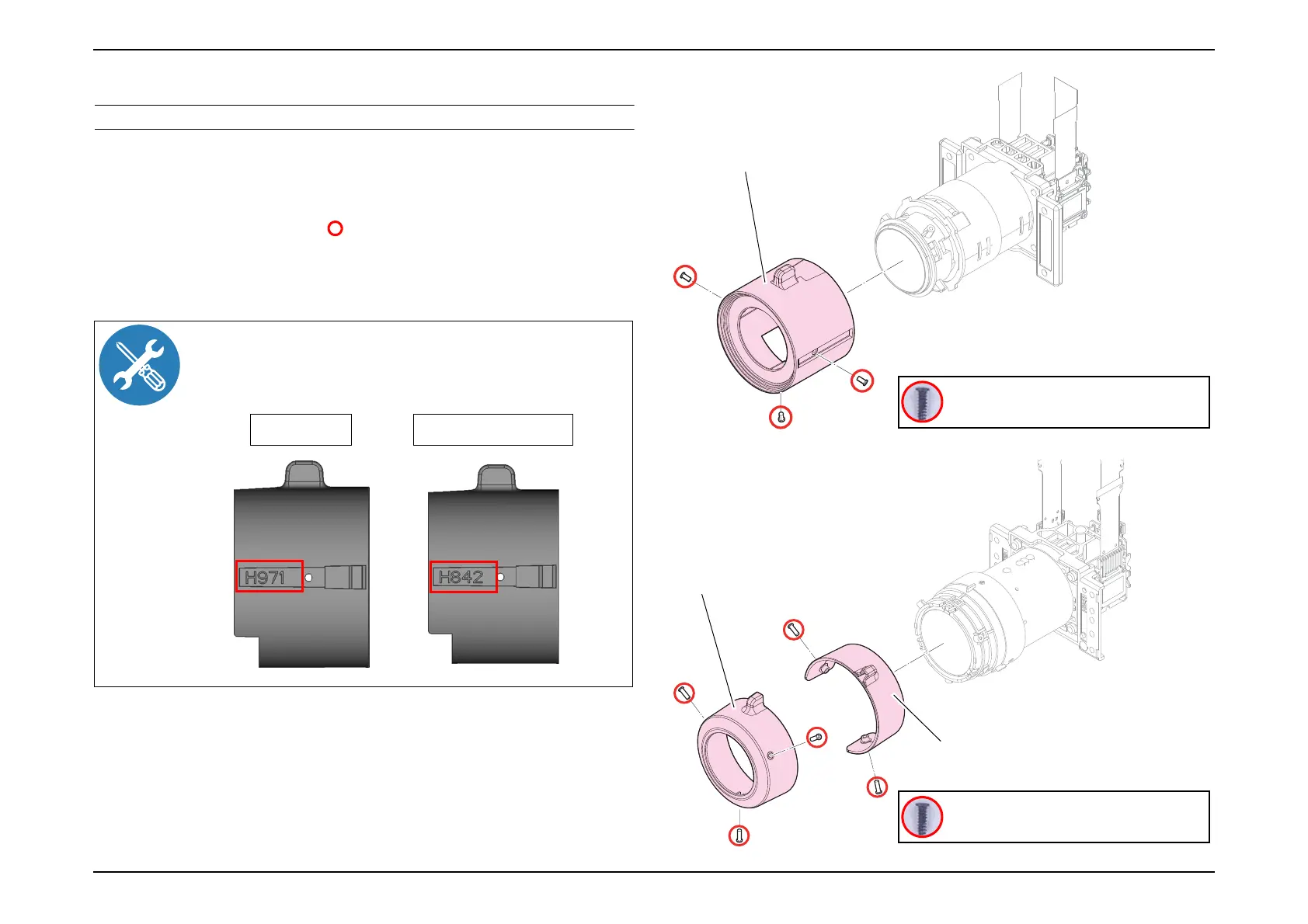

3.3.11.2 Focus Ring/Zoom Ring
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove three to five screws ( ) and remove the "Focus Ring" and the
"Zoom Ring".
* Numbers of screws and types of rings to be removed depend on the
model. See the figures.
The shape of the FOCUS RING of EH-TW740 differs for
EB-E01/E10/E20. Check the engraved seal before
attaching.
EB-E01/E10/E20EH-TW740
Focus Ring
 EB-E01/E10/E20, EH-TW740
 EB-X06/W06/FH06/X51/W51/X49/W49/W52/118, PL 119W
Zoom Ring
Focus Ring
C.P.TYPE1 B-TITET-A.SCREW,2X6,F/ZB-3C
C.P.TYPE1 B-TITET-A.SCREW,2X6,F/ZB-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
