Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 122 Revision A

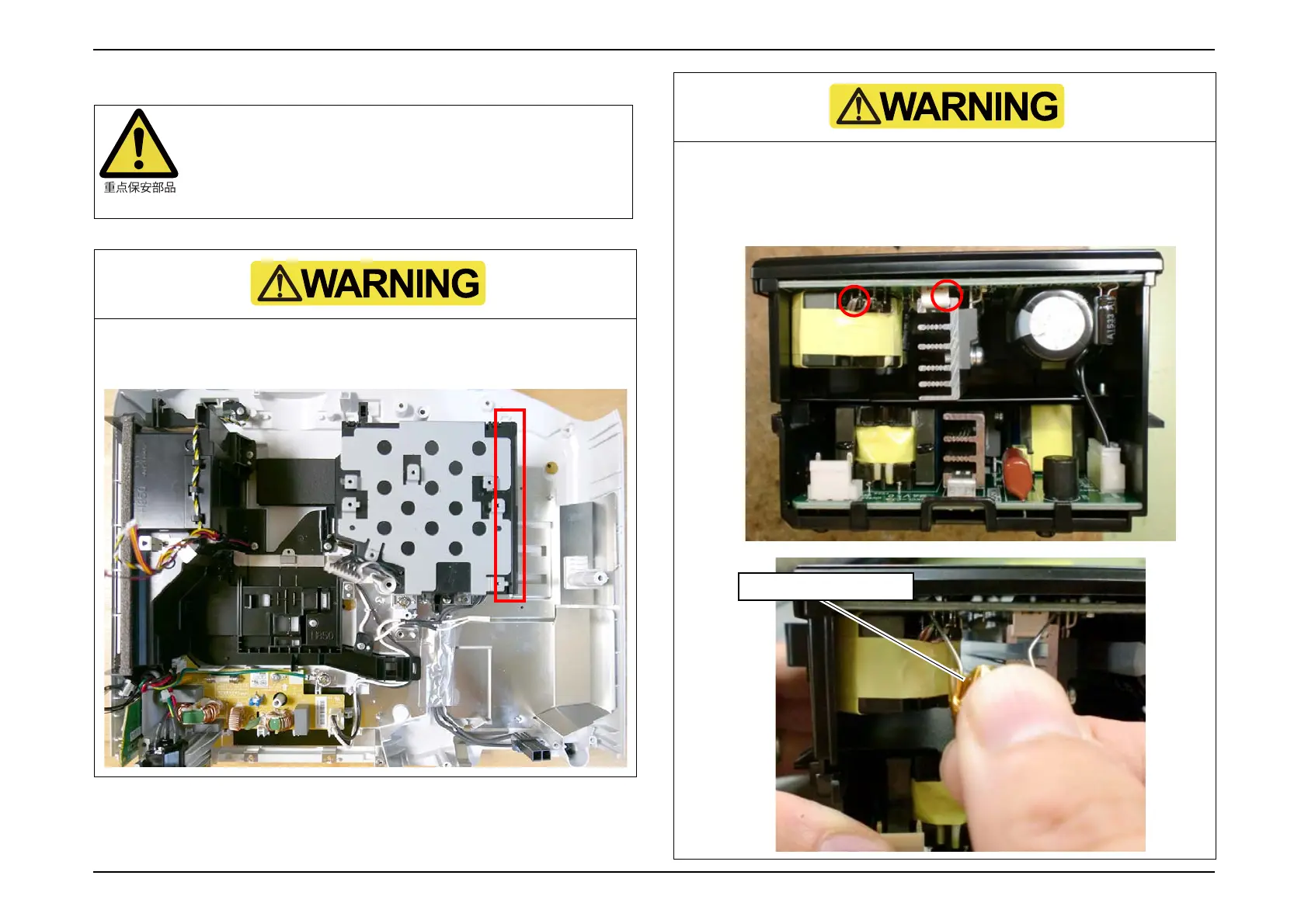

3.3.14 PS Ballast Assy
This part is designated as the Safety Device. When
removing/replacing the part for repair, be sure to refer to
3.5.1 Safety Check after Servicing (p142). After serving,
follow the procedures specified in the Safety Check after
Serving.
 At the area shown below, an electric shock may result if you operate
carelessly because there is electric charge remaining to reduce power
consumption in the Power Supply.
 To repair after turning on, extract the charges by the following procedures.
 Press a discharge resistance between the 2pin of T301 and the heat sink
for three seconds to discharge.
Discharge resistor (1kΩ)
<A Type>

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
