Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 97 Revision A

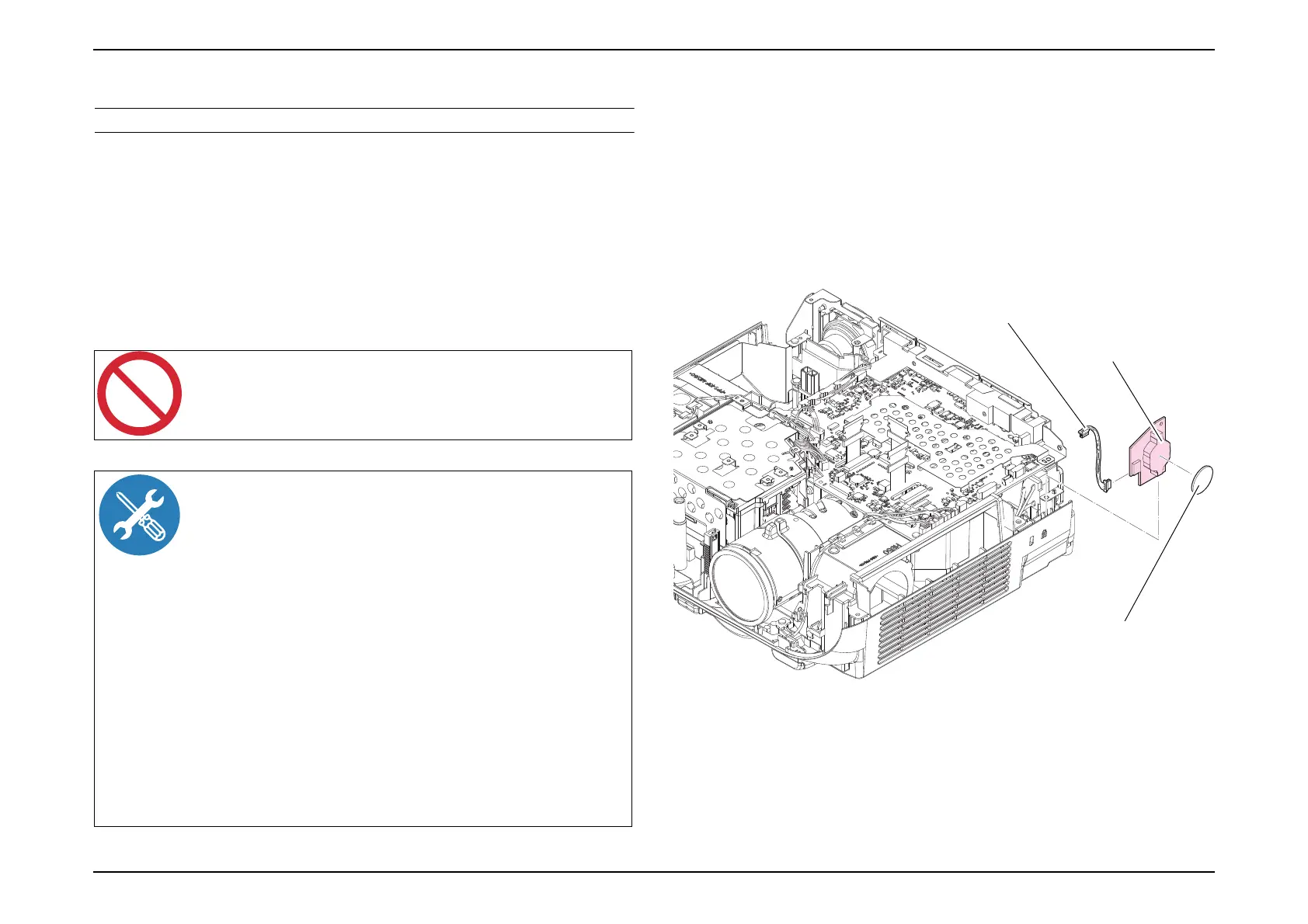

3.3.9 RTC Board
DISASSEMBLY PROCEDURE
 EB-FH52/992F
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the "RTC Cable H854" from the connector.
3. Remove the "RTC Board".
4. Remove the "Lithium Battery" from the "RTC Board".
After removing the RTC Board, place it on the insulator. If
the Lithium Battery is already inserted, the RTC Board
may short.
When replacing the "RTC Board" for repair, be sure to
execute the following:
 The information such as the time of first boot, and the
time of lamp replacement for this machine is recorded
in the memory on the MA Board. The user may need
this information for the purpose of operation and
management of this machine; therefore, when the
"RTC Board" or the "MA Board ASSY" needs to be
replaced, check whether this information is readable. If
yes, read it using the "IPS Tool (Resume)" program
(dedicated program for services and support), and
write it back onto the machine after completing
repairs.
(See 3.5.9 The service tools and the adjustment tasks
list which required before and after parts replacement
(p148))
Lithium Battery
RTC Cable H854
RTC Board

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
